High Accuracy Fiber Laser Pipe Cutting Machine , Steel Tube Cutting Machine Low Maintenance
High Accuracy Fiber Laser Pipe Cutting Machine , Steel Tube Cutting Machine Low Maintenance
High Accuracy Fiber Laser Pipe Cutting Machine , Steel Tube Cutting Machine Low Maintenance
High Accuracy Fiber Laser Pipe Cutting Machine , Steel Tube Cutting Machine Low Maintenance
High Accuracy Fiber Laser Pipe Cutting Machine , Steel Tube Cutting Machine Low Maintenance
High Accuracy Fiber Laser Pipe Cutting Machine , Steel Tube Cutting Machine Low Maintenance
High Accuracy Fiber Laser Pipe Cutting Machine , Steel Tube Cutting Machine Low Maintenance
High Accuracy Fiber Laser Pipe Cutting Machine , Steel Tube Cutting Machine Low Maintenance
High Accuracy Fiber Laser Pipe Cutting Machine , Steel Tube Cutting Machine Low Maintenance
High Accuracy Fiber Laser Pipe Cutting Machine , Steel Tube Cutting Machine Low Maintenance
High Accuracy Fiber Laser Pipe Cutting Machine , Steel Tube Cutting Machine Low Maintenance
High Accuracy Fiber Laser Pipe Cutting Machine , Steel Tube Cutting Machine Low Maintenance
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YAHONG
Certification :
CE,ISO
Supply Ability :
200 Set/Sets per Month Gantry CNC cutting machine
Packaging Details :
plywood case+foam+protective film for High Accuracy CNC Heavy Gantry Aluminium Sheet Cutting Machine
MOQ :
1 Set/Sets
Price :
$9,800.00 - $12,000.00 / Set
Condition :
New
Dimension(L*W*H) :
3700*1000*1000MM
Rated Power :
1500W
Voltage :
220V
After-sales Service Provided :
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
name :

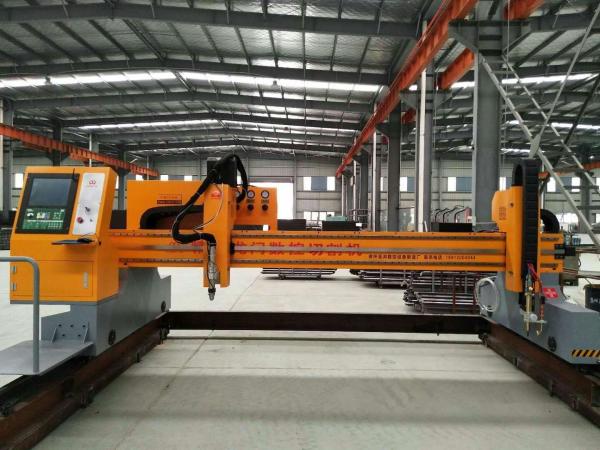

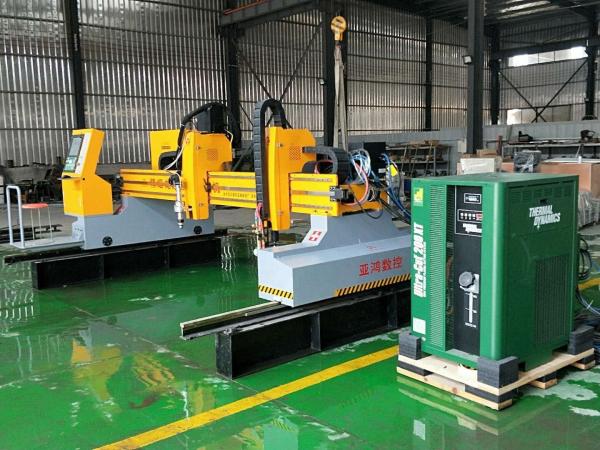

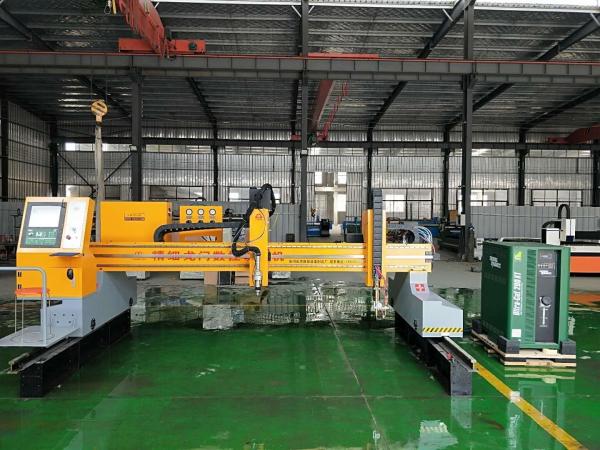

Gantry CNC cutting machine
Ignition device :
Auto ignition device
Height regulating device :
Electric adjustable high
brand name :
yahong(offer OEM service)
color :
according to your requirment
cutting mode :
flame or plasma
cutting material :
mild steel,stainless steel,iron,aluminium
cutting video :
website: www.yhcut.com
packaging :
outside plywood case,middle pearl wool,inner protective film
Type :
CNC Plasma Cutters
Weight :
1000KG
Port :
Shanghai port or other china port
Description

High Accuracy Fiber Laser Pipe Cutting Machine , Steel Tube Cutting Machine Low Maintenance

1. The real factory price and the after-sales service professionally offered by factory.

2. The largest manufacturer of laser equipment in north of China.

3. The only factory in the northern China has own milling machine. machine bed quality assured!

4. The only factory in the northern China has own machine outlooks manufacture basement.

5. All the office, factory land are bought, not rent.

6. 16 years experience in laser industry.

7. 120 sets of fiber laser machine and 400 sets CO2 machine are exported monthly.

8. Three years warranty.

9. All the machine parts that imported from abroad all have original certification, Germany quality.

1 Cutting Shape Steel plate with any plane shapes fromed by straight lines and arcs.
2 LCD Display Dimension 10.4 Inches
3 Flame Cutting Thickness 5-200mm
4 Plasma Cutting Thickness 0.5-30mm (according to plasma power)
5 Height Control Electric Height Control+Arc Voltage Height Control(THC)
6 Motor and driver Japan pansonic servo motor and driver
7 Reduce Chinese top reducer
8 Cutting Speed 0-10000mm per minute
9 Drive Mode Double driver
10 Cutting Mode Plasma and flame
11 Ignition Device Automatic ignition
12 File Transmission USB
13 Cutting Gas Flame: Oxygen+ Acetylene/ Propane/ Coal gas
Plasma :air
14 Gas Pressure Max. 0.1 Mpa
15 Oxygen Pressure Max. 0.7 Mpa
16 Cutting Accuracy ±0.5mm
17 Software FastCAM (support Auto CAD/ Solidworks/ CAXA/ Types etc.)
18 Power Supply Voltage/Frequency 220V/110V 50HZ 60HZ
19 Rated Power Supply 1500W
20 Working Temperature -10℃-60℃. Relative Humidity from 0-95%
