Specifications
Brand Name :
Yahong
Model Number :
YH1530
Certification :
ISO / CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200pcs per month
Delivery Time :
7 days after received your payment

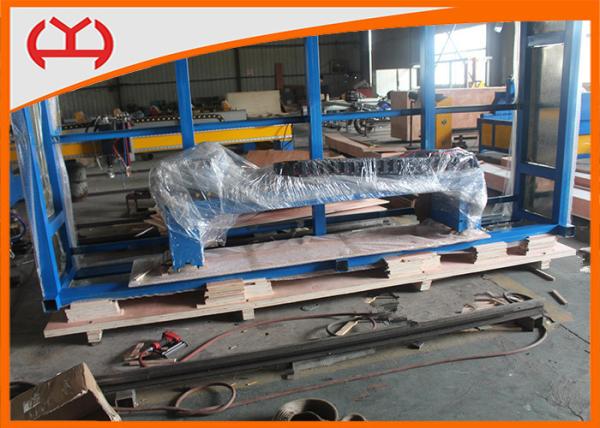

Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Table CNC Cutting Machine
Cutting accuracy :
±0.5mm
LCD Display Dimension :
7.0 inches
Effective Cutting size :
1500*3000mm
Cutting Speed :
0-8000mm/min
Motor :
Stepper Motor / Servo Motor
Cutting Mode :
Plasma / Flame
Height Control :
Arc voltage height control
Software :
FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.)
Cutting Gas :
Flame: Oxygen+ Acetylene/ Propane/ Coal gas Plasma :air
Rated Power Supply :
1500W
Description

Sheet Metal Table CNC Plasma / Flame Cutter Rated Power Supply 1500W

Description:

It is a new style of aluminum structure table CNC flame plasma cutting machine. CNC flame and plasma cutting machine for cutting thin and medium thick plate. It is integrated with high speed, high precision,and the structure of the machine is made from special industrial aluminum profile, which is separated from the cutting table. With the feature of easy installation,human-computer interface, easy operation, stable work, elegant appearance, they can be used to cut almost all kinds of metal plate automatically.

Features:

1. The plasma with high cutting speed, high precision, small slit, neat. Under traditional CNC system ,improved control method of cutting, avoid the secondary processing.

2. The integrally cast iron lathe bed is used for great solidity and stability.

3. High precision linear guide rail, high performance subdivision driver.

4. Precise and efficient control system, coming with professional software.

5. High cutting speed, high accuracy and low cost.

6. During the plasma is cutting, if the torch of plasma break at any point , take the torch out of the machine, adjust the torch, then the torch will automatically return to break points.

Technical Parameters for Integral Table CNC Cutting Machine:

1 Cutting shape Steel plate with any plane shapes fromed by straight lines and arcs
2 LCD Display Dimension 7.0 Inches
3 Effective Cutting Size 1500*3000mm
4 Railway Size 2000*3500mm
5 Plasma Cutting Thickness 0.5--20mm ( Depends on plasma power source capacity)
6 Flame Cutting Thickness 5--200mm
7 Cutting Speed(Stepper Motor) 0-8000mm per minute
8 Height Control Arc voltage height control (THC)
9 Drive Mode Bilateral drive
10 Cutting Mode flame and plasma
11 Ignition device Auto ignition device
12 File transmission USB transmission
13 Gas Pressure Max. 0.1Mpa
14 Oxygen Pressure Max.0.7Mpa
15 Cutting Gas

Flame: Oxygen+ Acetylene/ Propane/ Coal gas

Plasma :air
16 Software FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.)
17 Cutting accuracy ±0.5mm
18 Power Supply Voltage/Frequency 220V 50HZ / 60HZ
19 Rated Power Supply 1500W
20 Working Temperature -10℃-60℃, Relative Humidity, 0-95%.

Applications:

It is widely used in hardware, precise machinery, automobile components, glasses, clocks and watches, precise cutting, medical equipment, instrumentation, and other metal-related industry and environmental protection equipment, steel and other large electrical types of machinery manufacturing and processing industry.

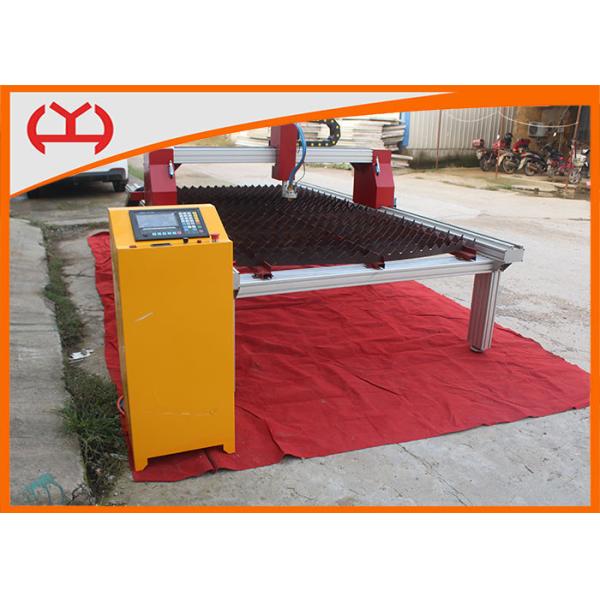

Table CNC Cutting Machine:

Sheet Metal Cutting Table Plasma , Affordable Plasma Table High Safety
