Specifications
Brand Name :
Yahong
Model Number :
YH1530
Certification :
ISO9001:2008 and CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200pcs per month
Delivery Time :
7 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Table CNC Cutting Machine
Gas Pressure :
Max. 0.1Mpa
LCD Display Dimension :
7.0 inches
Effective Cutting size :
1500*3000mm
Cutting Speed :
0-8000mm/min
Voltage :
220V
Height Control :
Arc voltage height control
Rated Power :
1500W
Description

Metal Table CNC Flame Cutting Machine Easy Operation With Wave Plate Table

Description:

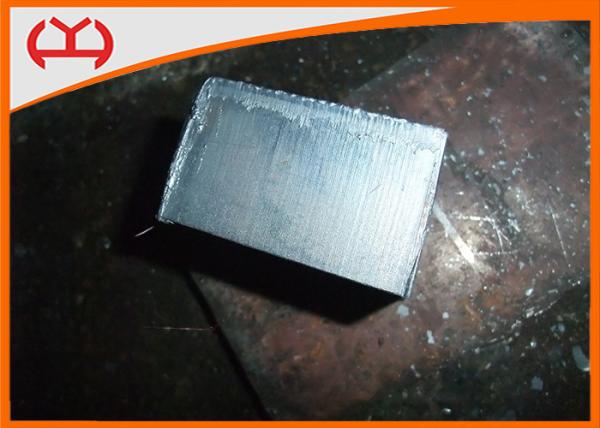

The price of the machinery is economic, the operation and maintenance is very easy and convenient. CNC plasma cutting machinery are designed to cut sheet metal character of the numerical control equipment cutting. Can achieve for a variety of metal materials by cutting arbitrary graphics. After cutting ,the cut surface under normal circumstances does not require the surface processing. With ahigh degree of automation, easy-to-use, high precision, high reliability and low cost, operation, maintenance, etc. is very simple, the model widely used in industry and advertisement industry.

Features:

1. Cutting head with cooling system can quickly cool surface of material to avoid burr and residue.

2. CNC plasma cutting machine adopts light-weight structual design , the structure has good rigidity, light weight and small motion inertia.

3. Bilateral drive,stable operation. High precision, good effect. Can be installed a water spraying device, reduce the thermal deformation.

4. High precision and low cost. CNC system with high configuration, automatic arc strike and stable performance, with above 99% arc strike success rate.

Technical Parameters for Integral Table CNC Cutting Machine:

1 Cutting shape Steel plate with any plane shapes fromed by straight lines and arcs
2 LCD Display Dimension 7.0 Inches
3 Effective Cutting Size 1500*3000mm
4 Railway Size 2000*3500mm
5 Plasma Cutting Thickness 0.5--20mm ( Depends on plasma power source capacity)
6 Flame Cutting Thickness 5--200mm
7 Cutting Speed(Stepper Motor) 0-8000mm per minute
8 Height Control Arc voltage height control (THC)
9 Drive Mode Bilateral drive
10 Cutting Mode flame and plasma
11 Ignition device Auto ignition device
12 File transmission USB transmission
13 Gas Pressure Max. 0.1Mpa
14 Oxygen Pressure Max.0.7Mpa
15 Cutting Gas

Flame: Oxygen+ Acetylene/ Propane/ Coal gas

Plasma :air
16 Software FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.)
17 Cutting accuracy ±0.5mm
18 Power Supply Voltage/Frequency 220V 50HZ / 60HZ
19 Rated Power Supply 1500W
20 Working Temperature -10℃-60℃, Relative Humidity, 0-95%.

Applications:

1. Cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, shipbuilding and other industries.

2. All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, Titanium plates, and so on like the sheet metal.
