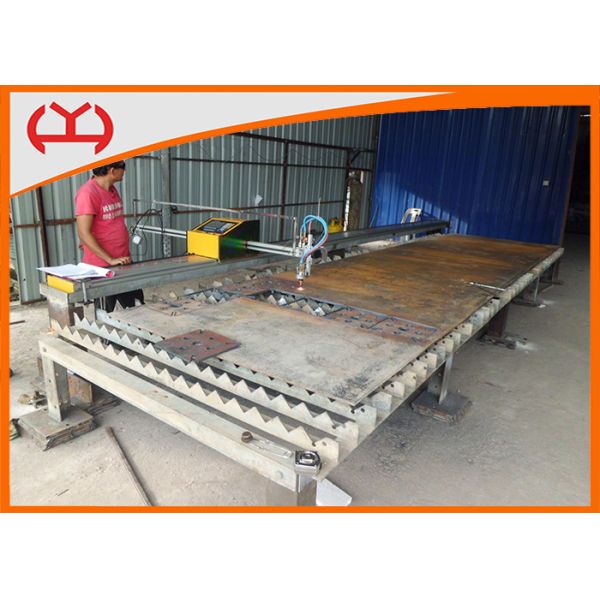

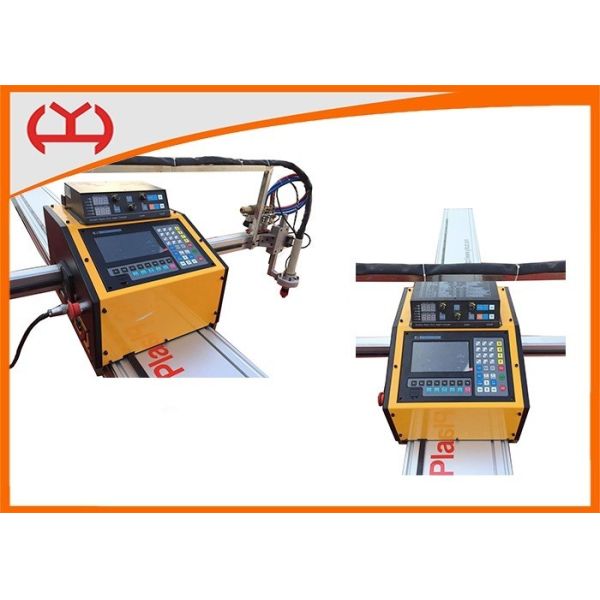

Automated Portable CNC Cutting Machine Fastcam Software 220V 50HZ / 60HZ
Automated Portable CNC Cutting Machine Fastcam Software 220V 50HZ / 60HZ
Automated Portable CNC Cutting Machine Fastcam Software 220V 50HZ / 60HZ
Automated Portable CNC Cutting Machine Fastcam Software 220V 50HZ / 60HZ
Automated Portable CNC Cutting Machine Fastcam Software 220V 50HZ / 60HZ
Automated Portable CNC Cutting Machine Fastcam Software 220V 50HZ / 60HZ
Automated Portable CNC Cutting Machine Fastcam Software 220V 50HZ / 60HZ
Automated Portable CNC Cutting Machine Fastcam Software 220V 50HZ / 60HZ
Specifications
Brand Name :
Yahong
Model Number :
YH1530
Certification :
ISO / CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200pcs per month
Delivery Time :
3 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Cutting Speed :
0-4000mm/min
Cutting Mode :
Plasma / Flame
Software :
FastCAM Standard vision(support Auto CAD/ Solidworks/ CAXA/ Types etc.)
Cutting precision :
±0.5mm
Flame Cutting Thickness :
5--200mm
Effective Cutting Size :
1500 * 3000mm
Plasma Air :
Only pressed Air
Power Supply Voltage/Frequency :
220V 50HZ / 60HZ
Description

Cnc Automated Air Plasma Cutting Machine Fastcam Software 220V 50HZ / 60HZ

Description:

1. This product with reasonable overall structure is the lightest, most economical cutting machine.

2. Transversal effective cutting width is 1.0m and 1.5m and longitudinal effective cutting length is 1.5, 2m, 2.5m,3m and 6m.

3. With automatic ignition and the electronic lifting system, it supports two cutting ways of plasma and flame.

4. It can be applied to metal materials or non-ferrous metal cutting of medium and small enterprises.

5. It can be used in either indoor or outdoor situations.

6. Any complex plane Graphics can be cut.

7. Flexible, easy to use, move anytime, it do not occupy fixed sites.

Specifications:

Technical Parameters for Portable CNC Cutting Machine

1 Cutting shape any shapes
2 LCD Display Dimension 7.0Inches
3 Effective Cutting Width (X axis) 1500mm
4 Effective Cutting Length (Y axis) 6000mm
5 Cross Beam Length 2000mm
6 Longitudinal Rail Length 6500mm
7 Cutting Speed 0-4000mm per minute
8 Plasma Cutting Thickness 0.5--20mm ( Depends on plasma power source capacity)
9 Flame Cutting Thickness 5--200mm
10 Drive Mode single-side
11 Cutting Mode flame and plasma
12 Ignition device Auto ignition device
13 Height regulating device Arc voltage height control (THC) or Electric adjustable high
14 File transmission USB transmission
15 Gas Pressure Max. 0.1Mpa
16 Oxygen Pressure Max.0.7Mpa
17 Cutting Gas Acetylene/Propane
18 Plasma Power Source Yahong cut-100A,cut-130A, cut-200A or other
19 Plasma Air Only pressed Air
20 Software FastCAM Standard vision(support Auto CAD/ Solidworks/ CAXA/ Types etc.)
21 Plasma Air Pressure Max. 0.8Mpa
22 Cutting precision ±0.5mm National standard JB/T10045.3-99
23 Control accuracy ±0.01mm
24 Power Supply Voltage/Frequency 220V 50HZ / 60HZ
25 Rated Power Supply 200W
26 Working Temperature -10℃-60℃, Relative Humidity, 0-95%.

Applications:

It can cut mild steel ( flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely used in industries such as machinery, automobile, ship building, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

Our Service:

Pre-sale Service
1.supply item design,processdesign.
2.Help you chose the fit machine.
3.Manufacture the machine according to your and accessories.


Sale Service
1.acceptance of equipment together with you.
2.offer you help to make the operating insruction.
3.any other help you need.


After-sale Service
1.one year warranty.
2.Free accessories due to quality problem.
3.Free repair whole using life(without the freight and accessories charge).
