Low Noise Portable CNC Cutting Machine
Low Noise Portable CNC Cutting Machine
Low Noise Portable CNC Cutting Machine
Low Noise Portable CNC Cutting Machine
Low Noise Portable CNC Cutting Machine
Low Noise Portable CNC Cutting Machine
Low Noise Portable CNC Cutting Machine
Low Noise Portable CNC Cutting Machine
Low Noise Portable CNC Cutting Machine
Low Noise Portable CNC Cutting Machine
Specifications
Brand Name :
Yahong
Model Number :
YH1525
Certification :
ISO / CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200pcs per month
Delivery Time :
3 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Portable CNC Cutting Machine
Cutting Material :
stainless steel,aluminum,iron, carbon steel
Cutting Speed :
0-4000mm/min
Control accuracy :
±0.01mm
Effective Cutting size :
1500*2500mm
Working Temperature :
-10℃-60℃, Relative Humidity, 0-95%.
Height Control :
Arc voltage height control
Cutting Mode :
Plasma / Flame
Cutting precision :
±0.5mm National standard JB/T10045.3-99
Flame Cutting Thickness :
5--200mm
Description

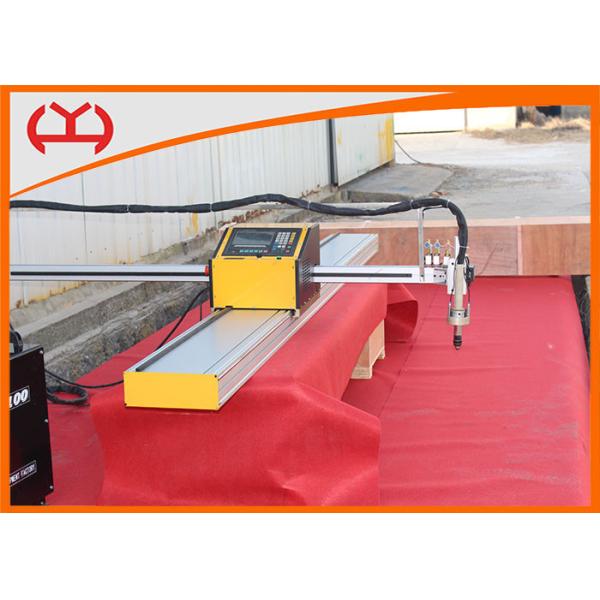

Low Noise CNC Metal Portable Flame Cutting Machine With 7.0 Inches LCD Display

Description:

1. It is a whole structure is compact, small structure, is the ideal update and upgrade products, used to replace flame cutting equipment, handheld handheld plasma cutting equipment, analysis of the cutting machine and semi-automatic cutting car.
2. Convenient and flexible operation.
3. Without any fixed location and random movement.
4. Applicable to internal/external cutting.
5. Any figure can cut all kinds of metal materials.
6. In general, there is no need to rework surface after cutting.
7. Has a high degree of automation, convenient operation, high precision, high reliability, low price, simple operation and convenient maintenance.

Competitive Advantage:

1. graphic display function

2. English interface and other 8 languages

3. Excellent graph library ,48 graphic

4. steel plate correction function

5. Kerf can be automatically compensated

6. Cutting can continue when power fails

Specifications:

Technical Parameters for Portable CNC Cutting Machine

1 Cutting shape any shapes
2 LCD Display Dimension 7.0Inches
3 Effective Cutting Width (X axis) 1500mm
4 Effective Cutting Length (Y axis) 2500mm
5 Cross Beam Length 2000mm
6 Longitudinal Rail Length 3000mm
7 Cutting Speed 0-4000mm per minute
8 Plasma Cutting Thickness 0.5--20mm ( Depends on plasma power source capacity)
9 Flame Cutting Thickness 5--200mm
10 Drive Mode single-side
11 Cutting Mode flame and plasma
12 Ignition device Auto ignition device
13 Height regulating device Arc voltage height control (THC) or Electric adjustable high
14 File transmission USB transmission
15 Gas Pressure Max. 0.1Mpa
16 Oxygen Pressure Max.0.7Mpa
17 Cutting Gas Acetylene/Propane
18 Plasma Power Source Yahong cut-100A,cut-130A, cut-200A or other
19 Plasma Air Only pressed Air
20 Software FastCAM Standard vision(support Auto CAD/ Solidworks/ CAXA/ Types etc.)
21 Plasma Air Pressure Max. 0.8Mpa
22 Cutting precision ±0.5mm National standard JB/T10045.3-99
23 Control accuracy ±0.01mm
24 Power Supply Voltage/Frequency 220V 50HZ / 60HZ
25 Rated Power Supply 200W
26 Working Temperature -10℃-60℃, Relative Humidity, 0-95%.

Applications:

CNC plasma cutting machine is widely used in machine tool manufacturing, Petro chemical industry, light industrial machinery, shipbuilding, pressure vessels, mining machinery, power, bridge construction, aerospace, steel structure and other industries.

Portable CNC Cutting Machine :

Low Noise Portable CNC Cutting Machine
