Pressed Air Crossbow Portable CNC Plasma Cutting Machine Dual Mode With THC
Pressed Air Crossbow Portable CNC Plasma Cutting Machine Dual Mode With THC
Pressed Air Crossbow Portable CNC Plasma Cutting Machine Dual Mode With THC
Pressed Air Crossbow Portable CNC Plasma Cutting Machine Dual Mode With THC
Pressed Air Crossbow Portable CNC Plasma Cutting Machine Dual Mode With THC
Pressed Air Crossbow Portable CNC Plasma Cutting Machine Dual Mode With THC
Specifications
Brand Name :
Yahong
Model Number :
YH1560
Certification :
ISO / CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200pcs per month
Delivery Time :
7 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
CNC Plasma Cutting Machine
Plasma Air :
Only pressed Air
Power Supply Voltage :
220V
Effective Cutting size :
1500*6000mm
Ignition device :
Auto ignition device
Height Control :
Arc voltage height control
Nesting Sofware :
FastCAM
Warranty :
1 years
Description

Hot sale portable metal cnc cutting machine plasma with THC

Description:

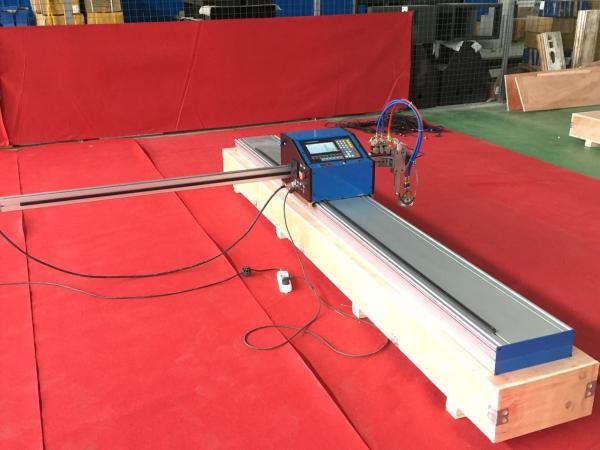

Portable cnc plasma cutting machine is an integrally compact mini structure and is an ideal updating and upgrading product for replacing handheld flame cutting equipment, handheld plasma cutting device, profiling cutting machine and semi-auto cutting trolley. Operated easily and flexibly .Without any fixed site and with random moving.It is applicable to inside/outside cutting.

Technical Parameters for Portable CNC Cutting Machine:

1 Cutting shape any shapes
2 LCD Display Dimension 7.0Inches
3 Effective Cutting Width (X axis) 1500mm
4 Effective Cutting Length (Y axis) 6000mm
5 Cross Beam Length 2000mm
6 Longitudinal Rail Length 6500mm
7 Cutting Speed 0-4000mm per minute
8 Plasma Cutting Thickness 0.5--20mm ( Depends on plasma power source capacity)
9 Flame Cutting Thickness 5--200mm
10 Drive Mode single-side
11 Cutting Mode flame and plasma
12 Ignition device Auto ignition device
13 Height regulating device Arc voltage height control (THC) or Electric adjustable high
14 File transmission USB transmission
15 Gas Pressure Max. 0.1Mpa
16 Oxygen Pressure Max.0.7Mpa
17 Cutting Gas Acetylene/Propane
18 Plasma Power Source Yahong cut-100A,cut-130A, cut-200A or other
19 Plasma Air Only pressed Air
20 Software FastCAM Standard vision(support Auto CAD/ Solidworks/ CAXA/ Types etc.)
21 Plasma Air Pressure Max. 0.8Mpa
22 Cutting precision ±0.5mm National standard JB/T10045.3-99
23 Control accuracy ±0.01mm
24 Power Supply Voltage/Frequency 220V 50HZ / 60HZ
25 Rated Power Supply 200W
26 Working Temperature -10℃-60℃, Relative Humidity, 0-95%.

Applications:

CNC plasma cutting machine is now widely used in industries such as machine tool manufacturing, Petro-chemical equipment, light-industrial machinery, shipbuilding, pressure vessel, mining machinery, electric power, bridge construction, aerospace, steel structure etc.

We appreciated that if you can supply following details,so we can give you more useful suggestion:

1.The cutting size(width*length)?

2.The minimum and maximum cutting thickness?

3.Cutting material is mild steel or stainless steel?

4.The material shape is metal sheet,or metal plate,or proximate matter,or steel pipe.
