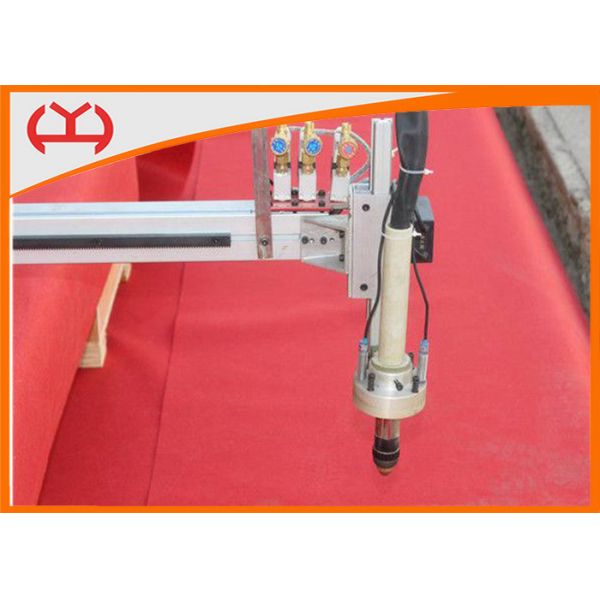

Mini Portable CNC Gas Cutting Machine Computerized Control Single Side Drive
Mini Portable CNC Gas Cutting Machine Computerized Control Single Side Drive
Mini Portable CNC Gas Cutting Machine Computerized Control Single Side Drive
Mini Portable CNC Gas Cutting Machine Computerized Control Single Side Drive
Mini Portable CNC Gas Cutting Machine Computerized Control Single Side Drive
Mini Portable CNC Gas Cutting Machine Computerized Control Single Side Drive
Mini Portable CNC Gas Cutting Machine Computerized Control Single Side Drive
Mini Portable CNC Gas Cutting Machine Computerized Control Single Side Drive
Specifications
Brand Name :
Yahong
Model Number :
YH1530
Certification :
ISO / CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200pcs per month
Delivery Time :
7 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Portable CNC Cutting Machine
Cutting Material :
stainless steel,aluminum,iron, carbon steel
Cutting Speed :
0-4000mm/min
Drive Mode :
Single Side
Effective Cutting size :
1500*3000mm
Rated Power Supply :
200W
Height Control :
Arc voltage height control (THC) or Electric adjustable high
Cutting Mode :
Plasma / Flame
LCD Display Dimension :
7.0 inches
Standard :
CE / ISO
Description

Mini Portable CNC Cutting Machine , Single Side Computerized Plasma Cutter

Description:

1. Portable cnc plasma cutting machine is an integrally compact mini structure and is an ideal updating and upgrading product for replacing hand-held flame cutting equipment, hand-held plasma cutting device, profiling cutting machine and semi-auto cutting trolley.

2. Operated easily and flexibly.

3. Without any fixed site and with random moving.

4. It is applicable to inside/outside cutting.

5. Able to cut off various metal materials of any graphs.

6. It is provided with advantages such as high automation, easy operation, high accuracy, high reliability, low price, and simple operation & maintenance and so on.

Specifications:

Technical Parameters for Portable CNC Cutting Machine

1 Cutting shape any shapes
2 LCD Display Dimension 7.0Inches
3 Effective Cutting Width (X axis) 1500mm
4 Effective Cutting Length (Y axis) 3000mm
5 Cross Beam Length 2000mm
6 Longitudinal Rail Length 3500mm
7 Cutting Speed 0-4000mm per minute
8 Plasma Cutting Thickness 0.5--20mm ( Depends on plasma power source capacity)
9 Flame Cutting Thickness 5--200mm
10 Drive Mode single-side
11 Cutting Mode flame and plasma
12 Ignition device Auto ignition device
13 Height regulating device Arc voltage height control (THC) or Electric adjustable high
14 File transmission USB transmission
15 Gas Pressure Max. 0.1Mpa
16 Oxygen Pressure Max.0.7Mpa
17 Cutting Gas Acetylene/Propane
18 Plasma Power Source Yahong cut-100A,cut-130A, cut-200A or other
19 Plasma Air Only pressed Air
20 Software FastCAM Standard vision(support Auto CAD/ Solidworks/ CAXA/ Types etc.)
21 Plasma Air Pressure Max. 0.8Mpa
22 Cutting precision ±0.5mm National standard JB/T10045.3-99
23 Control accuracy ±0.01mm
24 Power Supply Voltage/Frequency 220V 50HZ / 60HZ
25 Rated Power Supply 200W
26 Working Temperature -10℃-60℃, Relative Humidity, 0-95%.

Applications:

CNC plasma cutting machine is now widely used in industries such as machine tool manufacturing, Petro-chemical equipment, light-industrial machinery, shipbuilding, pressure vessel, mining machinery, electric power, bridge construction, aerospace, steel structure etc.

Operating Steps:

Mini Portable CNC Gas Cutting Machine Computerized Control Single Side Drive

Portable CNC Cutting Machine :

Mini Portable CNC Gas Cutting Machine Computerized Control Single Side Drive
