Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YAHONG
Certification :
ISO, CE
Model Number :
CUT-100
Supply Ability :
500 Set/Sets per Month
Packaging Details :
Non fumigation plywood case
MOQ :
1 Set/Sets
Price :
$980.00 - $8,500.00 / Set
Warranty :
1 year
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas
Condition :
New
Dimension(L*W*H) :
L690mm*W370mm*H810mm
Rated Power :
32kw
Voltage :
380v
Motor Type :
SERVO MOTOR
Multi-function :
plasma
MOQ :
1 set
packaging :
plywood case +foam+protective film
Weight :
90kg
Port :
Shanghai Port or other port
Description

Professional Plasma Power Supply , Plasma Power Generator For Metal Cutter

Plasma Power Source CUT200A

1.Main Technical Performance Indexes of products

Input voltage

3*380(50Hz)±10%

Input power

45KVA

Cutting power current

30-200A

Temporary load rate

100%

Cutting thickness

according to the material u cut

Perforation thickness

25mm

Quality cutting thickness

45mm

Max cutting thickness

55mm

Cutting gas

air

Gas flow

150L/min

Gas pressure

0.5MPa

Cooling method

Water cooling

Power source weight

90Kg

Outline dimension

L69*W37*H81cm

2.Unique cutting functions:

1.Adopt international advanced full bridge soft switching technology

2.Plasma power supply current is 30A - 200A stepless adjustable

3.Good cut surface vertical degree, carbon steel cutting can be within 3 degree

4.Independent research and development of the cutting torch, strong ability to penetrate, with good vertical degree

5.Built-in overcurrent, overvoltage, air pressure and hydraulic pressure multiple protection

6.Suitable for CNC cutting machine and robot supporting use

7.100% temporary load rate, can work long hours

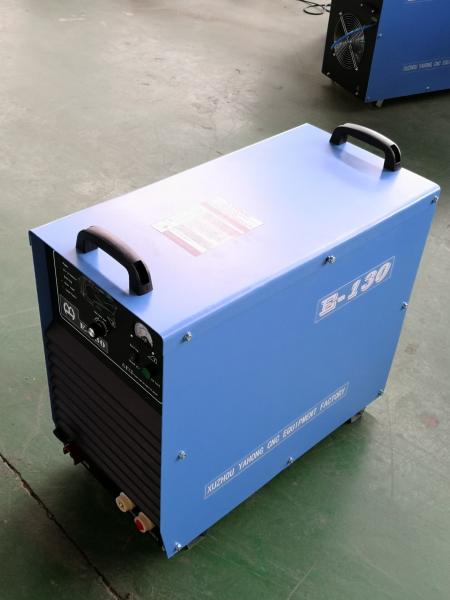

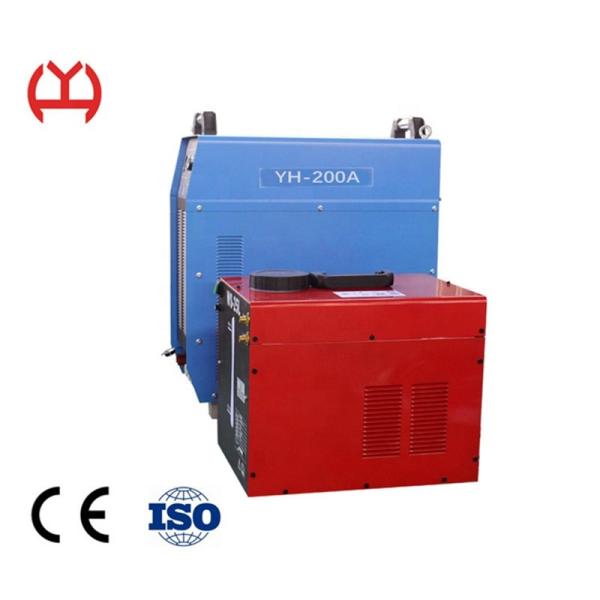

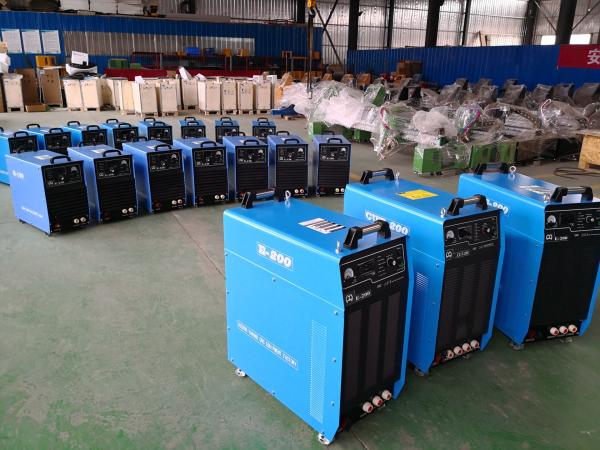

Photos:
