Carbon Steel Tube Cutting Machine , Pipe Laser Cutting Machine Easy Operation
Carbon Steel Tube Cutting Machine , Pipe Laser Cutting Machine Easy Operation
Specifications
Brand Name :
Yahong
Model Number :
YH1530
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 pcs per month
Delivery Time :
5-7 days after received your payment

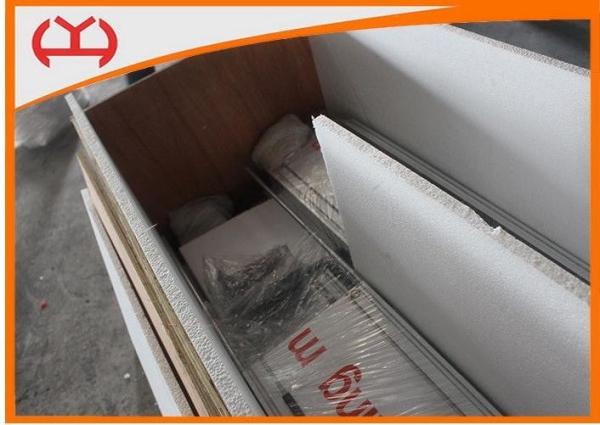

Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Pipe And PLate CNC Cutting Machine
Cutting Material :
Stainless steel , aluminum , iron , carbon steel
LCD Display Dimension :
7.0 inches
Effective Cutting size :
1500*3000mm
Cutting Speed :
0-4000mm/min
After-sales Service Provided :
Engineers available to service machinery overseas
Warranty :
13 Month
Cutting pipe diameter :
50-150mm , L 3000mm
Cutting pipe wallthickness :
1-10mm
Height Control :
Arc Voltage Height
Drive Mode :
Single drive
Description

Carbon Steel CNC Pipe Cutting Machine Metal Processing Plasma Tube Cutting Machine

Description:

1. Operated easily and flexibly.

2. Without any fixed site and with random moving.

3. It is applicable to inside/outside cutting.

4. Able to cut off various metal materials of any graphs.

5. Good finish.In general, There is no need to process surface further after cutting.

6. It is provided with advantages such as high automation, easy operation, high accuracy, high reliability, low price, and simple operation & maintenance and so on.

Feature:

1. Welded structure of thickening square tube, together with Taiwan imported guide rail to ensure running speed and accuracy.
2. Cutting head with cooling system can quickly cool surface of material to avoid burr and residue.

3. Power supply adjusts current according to different thickness of the material to ensure cutting materials without burr.

4. Processed Materials of small and neat kerf ,without secondary processing.

5. Advanced digital control system,large capacity storing function, convenient to read and process.

Applications:

CNC plasma cutting machine is now widely used in industries such as machine tool manufacturing, Petro-chemical equipment, light-industrial machinery, shipbuilding, pressure vessel, mining machinery, electric power, bridge construction, aerospace, steel structure etc.

Technical Parameters for Pipe and Plate CNC Cutting Machine:

1 Cutting shape plate and pipe
2 LCD Display Dimension 7.Inches
3 Effective Cutting Size 1500*3000mm
4 Railway Size 2000*3500mm
5 Cutting pipe diameter 50-150mm
6 Cutting pipe wallthickness 1-10mm
7 Cutting pipe length 3000mm
8 Installation Mode With combined installation and random movement, without occupying fixed site and directly cutting on steel plates
9 Plasma Cutting Thickness 0.5--20mm ( Depends on plasma power source capacity)
10 Flame Cutting Thickness 5--200mm
11 Cutting Speed 0-4000mm per minute
12 Height Control Electric Height Control+Arc Voltage Height Control(THC)
13 Drive Mode Single drive
14 Cutting Mode flame and plasma
15 Ignition device Auto ignition device
16 File transmission USB transmission
17 Gas Pressure Max. 0.1Mpa
18 Oxygen Pressure Max.0.7Mpa
19 Cutting Gas

Flame: Oxygen+ Acetylene/ Propane/ Coal gas

Plasma :air
20 Software FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.)
21 Cutting accuracy ±0.5mm
22 Power Supply Voltage/Frequency 220V 50HZ / 60HZ
23 Rated Power Supply 1500W
24 Working Temperature -10℃-60℃, Relative Humidity, 0-95%.

Our Services:

1. One years quality guaranty, the machine with main part (excluding the consumables) shall be changed free of charge when if there is any problem during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5. 24 hours on line service each day, free technical support.

Pipe and Plate CNC Cutting Machine:
