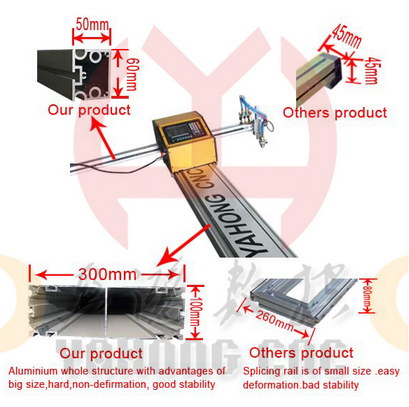

Carbon Plate CNC Pipe Cutting Machine Table 1500W Easy Operation Auto Ignition Device
Carbon Plate CNC Pipe Cutting Machine Table 1500W Easy Operation Auto Ignition Device
Carbon Plate CNC Pipe Cutting Machine Table 1500W Easy Operation Auto Ignition Device
Carbon Plate CNC Pipe Cutting Machine Table 1500W Easy Operation Auto Ignition Device
Carbon Plate CNC Pipe Cutting Machine Table 1500W Easy Operation Auto Ignition Device
Carbon Plate CNC Pipe Cutting Machine Table 1500W Easy Operation Auto Ignition Device
Carbon Plate CNC Pipe Cutting Machine Table 1500W Easy Operation Auto Ignition Device
Carbon Plate CNC Pipe Cutting Machine Table 1500W Easy Operation Auto Ignition Device
Specifications
Brand Name :
Yahong
Model Number :
YH1530
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 pcs per month
Delivery Time :
5-7 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Pipe and Plate CNC Cutting Machine
Cutting Material :
Stainless steel , aluminum , iron , carbon steel
LCD Display Dimension :
7.0 inches
Effective Cutting size :
1500*3000mm
Cutting pipe diameter :
50-150mm , L 3000mm
Ignition device :
Auto ignition device
Cutting shape :
plate and pipe
Cutting pipe wallthickness :
1-10mm
Height Control :
Arc Voltage Height
Installation Mode :
With combined installation and random movement, without occupying fixed site and directly cutting on steel plates
Description

Carbon Plate / Tube Plasma Cutting Machine With Table 1500W Easy Operation

Description:

1. Operated easily and flexibly

2. Without any fixed site and with random moving.

3. It is applicable to inside/outside cutting.

4. Able to cut off various metal materials of any graphs.

5. Good finish. In general, There is no need to process surface further after cutting.

Technical Parameters for Pipe and Plate CNC Cutting Machine

1 Cutting shape plate and pipe
2 LCD Display Dimension 7.Inches
3 Effective Cutting Size 1500*3000mm
4 Railway Size 2000*3500mm
5 Cutting pipe diameter 50-150mm
6 Cutting pipe wallthickness 1-10mm
7 Cutting pipe length 3000mm
8 Installation Mode With combined installation and random movement, without occupying fixed site and directly cutting on steel plates
9 Plasma Cutting Thickness 0.5--20mm ( Depends on plasma power source capacity)
10 Flame Cutting Thickness 5--200mm
11 Cutting Speed 0-4000mm per minute
12 Height Control Electric Height Control+Arc Voltage Height Control(THC)
13 Drive Mode Single drive
14 Cutting Mode flame and plasma
15 Ignition device Auto ignition device
16 File transmission USB transmission
17 Gas Pressure Max. 0.1Mpa
18 Oxygen Pressure Max.0.7Mpa
19 Cutting Gas

Flame: Oxygen+ Acetylene/ Propane/ Coal gas

Plasma :air
20 Software FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.)
21 Cutting accuracy ±0.5mm
22 Power Supply Voltage/Frequency 220V 50HZ / 60HZ
23 Rated Power Supply 1500W
24 Working Temperature -10℃-60℃, Relative Humidity, 0-95%.

Applications:

CNC plasma cutting machine is now widely used in industries such as machine tool manufacturing, Petro-chemical equipment, light-industrial machinery, shipbuilding, pressure vessel, mining machinery, electric power, bridge construction, aerospace, steel structure etc.

FAQ:

1) Q:How does your factory do regarding quality control?

A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO, CE certificate.

2) Q:Do you give any discount ?

A:I'll surely try my best to help you get those by the best price and good service at the same time.

3) Q:I would like to ask you if it's possible to have my logo on the product.

A:We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra service,so a little bit extra service fee is needed.

Pipe and Plate CNC Cutting Machine:
