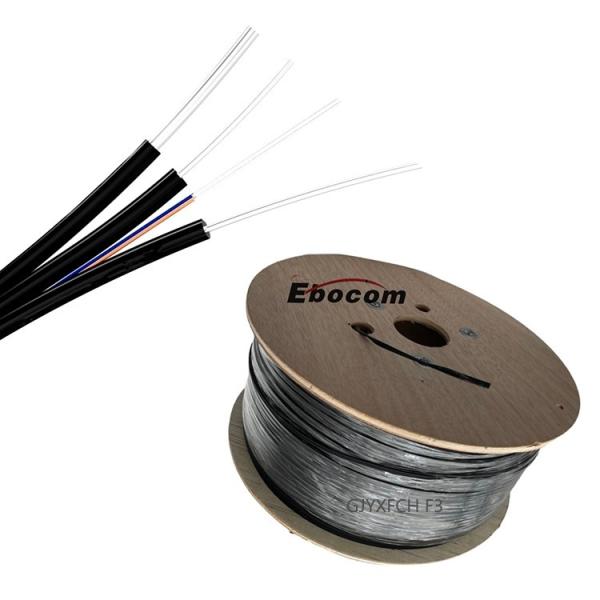

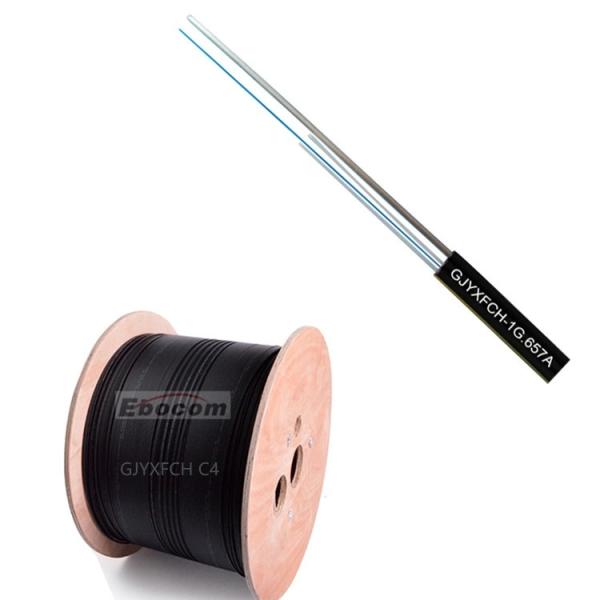

Aerial Drop Cable Outdoor GJYXFCH FTTH 1 Core G657A1 Optical G657A1 A1 single mode Internet wire construction
Aerial Drop Cable Outdoor GJYXFCH FTTH 1 Core G657A1 Optical G657A1 A1 single mode Internet wire construction
Aerial Drop Cable Outdoor GJYXFCH FTTH 1 Core G657A1 Optical G657A1 A1 single mode Internet wire construction
Aerial Drop Cable Outdoor GJYXFCH FTTH 1 Core G657A1 Optical G657A1 A1 single mode Internet wire construction
Aerial Drop Cable Outdoor GJYXFCH FTTH 1 Core G657A1 Optical G657A1 A1 single mode Internet wire construction
Aerial Drop Cable Outdoor GJYXFCH FTTH 1 Core G657A1 Optical G657A1 A1 single mode Internet wire construction
Aerial Drop Cable Outdoor GJYXFCH FTTH 1 Core G657A1 Optical G657A1 A1 single mode Internet wire construction
Aerial Drop Cable Outdoor GJYXFCH FTTH 1 Core G657A1 Optical G657A1 A1 single mode Internet wire construction
Specifications
Brand Name :
EBOCOM
Model Number :
gjyxfch 2B1
Certification :
ISO TLC
Place of Origin :
Shandong，China
MOQ :
2000M
Price :
EXW ≥2000m $0.014/M ≥5000m $0.012/M
Payment Terms :
T/T
Supply Ability :
50000KMS/day
Delivery Time :
5-8 day
Packaging Details :
1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Product Name :
FTTH outdoor 4 core drop cable
Material :
LSZH
Strength Member :
Steel/FRP
Function :
Fiber connector
Package :
2km/roll/3km/roll
Description

Description:

Optical fiber to the home cable adopts low-smoke zero-halogen cable sheath and support line, and the cable has reinforcement components to support the entire body. Fiber to the home cable has a special structure, can easily pull the fiber out of the cable, is the ideal cable installed directly into the room, especially suitable for home and office use.

Aerial Drop Cable Outdoor GJYXFCH FTTH 1 Core G657A1 Optical G657A1 A1 single mode Internet wire construction

Features:

– Suitable for indoor or plumbing applications

– The jacket can be easily removed without special tools

– Self-sustaining structure

– Excellent compression and impact resistance

-G.652/G.657 Optical Fiber Optional

Test Parameter:

Test Item Test Condition Value(dB)
UPC APC
Optical Performance Insertion Loss 1310nm LED light source <0.3 <0.3
Return Loss 1310nm LED light source >50 >60
Environmental Performance

(Max. Insertion Loss change)

 High temperature +85°C168 hours <0.2
Temperature Cycle -40-+75°C, 21 Cycles 168 hours <0.2
Humidity Aging +75°C, 95%R.H,168 hours <0.2
Humidity/Condensation Cycling -10°C-+65°C, 90%~100%RH, 14 cycles 168 hours <0.2
Mechanical Performance

( Max. Insertion Loss change)

 Vibration 10-55Hz, 1.5mm(p-p) <0.2
Flex 0.9kg,-90o~+90o repeat for 100 cycles <0.2
Torsion 1.35kg,90o~+90o ,10times <0.2
Withstand tensile 90N,10min <0.2
Drop H=1.5M,Total of 8 drops <0.2
Exchangeability Randomly <0.2
Durability 500 times <0.2
