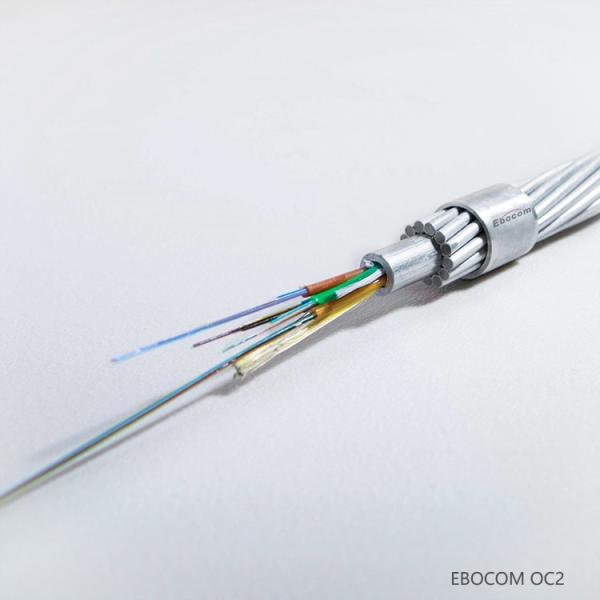

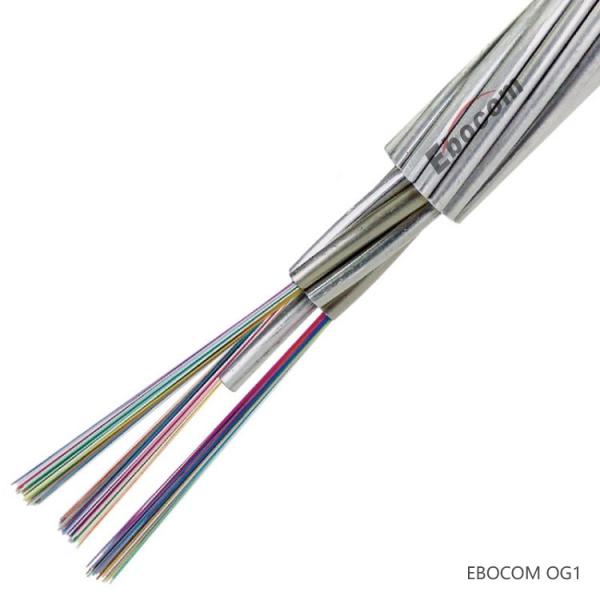

Opgw Optical Fiber Cable Composite Overhead Ground Wire Communication tower networking
Opgw Optical Fiber Cable Composite Overhead Ground Wire Communication tower networking
Opgw Optical Fiber Cable Composite Overhead Ground Wire Communication tower networking
Opgw Optical Fiber Cable Composite Overhead Ground Wire Communication tower networking
Opgw Optical Fiber Cable Composite Overhead Ground Wire Communication tower networking
Opgw Optical Fiber Cable Composite Overhead Ground Wire Communication tower networking
Specifications
Brand Name :
EBOCOM
Model Number :
OPGW-24B1-50[58;11.5]
Certification :
ISO TLC
Place of Origin :
Shandong，China
MOQ :
2000M
Price :
EXW ≥2000m $0.77/M ≥5000m $0.75/M
Payment Terms :
T/T
Supply Ability :
50000KMS/day
Packaging Details :
1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Cable Model :
OPGW
Material Shape :
Round cable
Range of Application :
Aerial New high voltage line
Brand :
Ebocom
Sample :
Free
Color :
Customer Specified
OEM :
Accepted
Origin :
Shandong, China
Description

OPGW optical cable is mainly used for high-voltage lines above 110KV. Due to the need for power outages and safety impacts when laying lines, it is mostly used for new lines.

Opgw Optical Fiber Cable Composite Overhead Ground Wire Communication tower networking

The Application Of Opgw:

(1) It is easy to maintain, easy to solve the problem of crossing the line, and its mechanical characteristics can meet the large crossing line;

(2) The outer layer of OPGW is metal armor, which has no effect on high-voltage electrical corrosion and degradation;

(3) OPGW must be powered off during construction, and the power loss is large. OPGW should be used for new high-voltage lines;

The Characters Of Opgw:

  • The fibers are well protected mechanically and thermally, use stainless steel pipe water blocking gel to provide protection;
  • The diameter of OPGW optical cable is small, and the load pressure on the tower is small;
  • Excellent lateral pressure resistance and outstanding short-circuit current capacity;
  • Appropriate optical fiber excess length, so that the optical fiber does not bear stress when the optical cable is subjected to the maximum allowable stress;
  • The layer-twisted structure provides excellent mechanical and electrical properties for optical cables;
  • Can be used as ground wire.

Product Parameters:

Core and nominal cross section Conductor Insulation thickness Concentric conductor Thickness of cable shield Diameter Weight of cable/km Max DC resistance of conductor (20ºC)
mm2 Number Diameter mm mm Number Diameter mm mm mm kg/km Ω/km Ω/km (Concentric)
Copper conductor (IEC standard)
2X10 7 1.35 1.55 20 0.85 1.40 11.80 290 1.83 1.90
2X16 7 1.70 1.55 32 0.85 1.40 12.84 420 1.15 1.20
2X25 7 2.14 1.60 29 1.13 1.50 15.02 630 0.727 0.76
2X35 19 1.53 1.65 27 1.35 1.60 17.00 832 0.524 0.55
Aluminum alloy conductor (IEC standard)
2X10 7 1.35 1.55 23 1.13 1.40 12.41 192 3.08 1.335
2X16 7 1.70 1.55 26 1.13 1.40 13.46 230 1.91 1.808
