Strong tensile resistence ADSS Fiber Optical Cable 8 core span 100 200 300 single Sheath PE Jacket Black color
Strong tensile resistence ADSS Fiber Optical Cable 8 core span 100 200 300 single Sheath PE Jacket Black color
Strong tensile resistence ADSS Fiber Optical Cable 8 core span 100 200 300 single Sheath PE Jacket Black color
Strong tensile resistence ADSS Fiber Optical Cable 8 core span 100 200 300 single Sheath PE Jacket Black color
Strong tensile resistence ADSS Fiber Optical Cable 8 core span 100 200 300 single Sheath PE Jacket Black color
Strong tensile resistence ADSS Fiber Optical Cable 8 core span 100 200 300 single Sheath PE Jacket Black color
Strong tensile resistence ADSS Fiber Optical Cable 8 core span 100 200 300 single Sheath PE Jacket Black color
Strong tensile resistence ADSS Fiber Optical Cable 8 core span 100 200 300 single Sheath PE Jacket Black color
Specifications
Brand Name :
EBOCOM
Model Number :
ADSS -8B1.3
Certification :
ISO
Place of Origin :
Shandong，China
MOQ :
2000M
Price :
≥2000m $0.14/M
Payment Terms :
T/T
Supply Ability :
50000KMS/day
Packaging Details :
1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Model: :
ADSS
Place of origin: :
Shandong, China
Brand: :
Ebocom
Fiber count: :
8/24/36/48/60/96/144/288
Loose tube material: :
PP/PBT
Applications: :
Aerial/Duct/Direct burial
Packaging: :
Wooden roll
Color of jacket: :
Black
Fiber type :
G652D
Jacket material :
PE/pvc
Description

ADSS (single sheath) is constructed with a 250μm optical fiber sheathed in a loose bushing (PBT) filled with a waterproof compound.

The center of the cable core is a fiber reinforced composite (FRP) non-metallic center reinforcement core.

The core is twisted into a compact and rounded core around the center reinforcement core, the gaps inside the core are filled with water barrier filler, a layer of water barrier tape is extruded outside the core, and aramid yarn is evenly wrapped around the core covered with water barrier tape, and then a polyethylene (PE) sheath is extruded to form the cable.

Strong tensile resistence ADSS Fiber Optical Cable 8 core span 100 200 300 single Sheath PE Jacket Black color

Main Features:

  • Small cable diameter, very light weight, span can be 1500M, and low additional load on the tower;
  • High tensile strength, which can exceed 90KN;
  • Non-metallic structure, good insulation, lightning protection;
  • Construction without power failure, and power line failure does not affect the normal transmission of overhead fiber optic cable;
  • Single-mode, multi-mode fiber and integrated fiber optic cable design;
  • Full dielectric cable structure for installation and maintenance;
  • Wide temperature range, low coefficient of linear expansion, to meet the requirements of harsh environments

Structure & Technical Specifications:

Strong tensile resistence ADSS Fiber Optical Cable 8 core span 100 200 300 single Sheath PE Jacket Black color

Fiber parameter(G.652D)
Item Unit G.652D
MFD μm 8.6～9.5±7
Cladding Diameter μm 125±1
Cladding Non-circularity % S1
Diameter of coating layer μm 245±10
Attenuation Coefficient @1310nm dB/km ≤0.36
@1550nm dB/km ≤0.22
Dispersion 1280~1330nm ps/nm/km ≤0.35
1550nm ps/nm/km ≤0.18
Zero dispersion wavelength nm 1300～1322
Partial positive mode dispersion coefficient ps/ √km ≤0.2

Company Profile:

Shandong Yibo Optronics Technology Co., Ltd.

With 12 years experience in the fiber optic communication industry. It is a high-tech enterprise mainly engaged in R & D, production, sales and service in the field of optical fiber communication. The company mainly produces OPGW optical cable, FTTH cable, ADSS optical cable, outdoor optical cable, indoor optical cable, mining flame retardant optical cable, etc.

The company always adheres to the business philosophy of "scientific and technological innovation, integrity-based", and has established a complete product quality control system. With good reputation, high -quality products, excellent service and a number of enterprises to establish a long-term cooperative relationship.
We are factory direct , can provide the high quality optical cable with competitive price. Welcome to be our distributor, contact us for a best price.

FOCUS ON QUALITY

Ebocom has always been committed to the
development of reliable quality. All employees strictly
follow the principle of quality first and strive to
provide the highest quality products and services
that meet or even exceed customer needs. Ebocom
has always used advanced management methods to
ensure that the entire service process is flexible and
effective.
TLC ,ISO 9001,ISO 14001 and ISO 45001
Ebocom has established a complete set of certified
quality, environmental and safety assurance systems
to design, produce and supply our full range of
optical fiber, optical cable and optical fiber
communication system products. The entire product
service process strictly follows the TLC ,ISO 9001, ISO
14001 and ISO 45001 international quality,
environment and safety management systems.

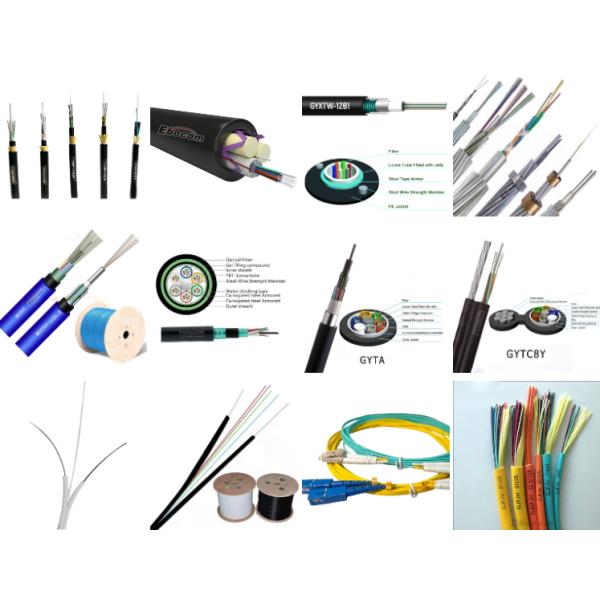

Recommend Products:
