PE Jacket GYXTW Outdoor Fiber Optic Cable Single Mode Central Loose Tube Armored Cable for Aerial Duct Installations
PE Jacket GYXTW Outdoor Fiber Optic Cable Single Mode Central Loose Tube Armored Cable for Aerial Duct Installations
PE Jacket GYXTW Outdoor Fiber Optic Cable Single Mode Central Loose Tube Armored Cable for Aerial Duct Installations
PE Jacket GYXTW Outdoor Fiber Optic Cable Single Mode Central Loose Tube Armored Cable for Aerial Duct Installations
PE Jacket GYXTW Outdoor Fiber Optic Cable Single Mode Central Loose Tube Armored Cable for Aerial Duct Installations
PE Jacket GYXTW Outdoor Fiber Optic Cable Single Mode Central Loose Tube Armored Cable for Aerial Duct Installations
Specifications
Brand Name :
Ebocom
Model Number :
GYXTW
Certification :
ISO
Place of Origin :
China
MOQ :
2000M
Price :
0.02 USD per Meter
Payment Terms :
L/C, T/T
Supply Ability :
50 KM per Day
Delivery Time :
3-10 days
Packaging Details :
Plywood Drum or Custimized
Application :
Telecommunication,FTTH FTTB FTTX Network,Aerial/Duct
Fiber type :
G652D
Fiber count :
4 Cores
Jacket material :
PE
Packing :
2-4km/wooden drum
Strength member :
Steel wire/ Steel tape
Oem :
accpet
Description

Product Description

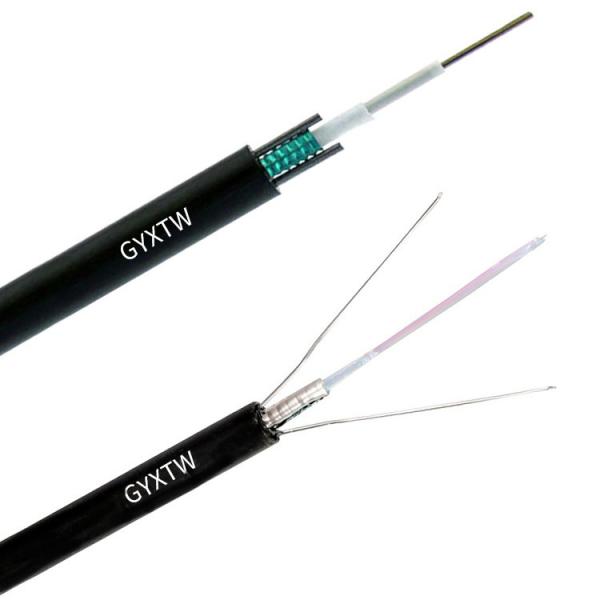

The GYXTW 4 Core Fiber Optic Cable is an outdoor-rated single-mode cable built for durability and high-speed data transmission. It features a central loose tube filled with water-blocking jelly to ensure moisture resistance, along with two parallel steel wires for tensile strength. The corrugated steel tape armor enhances mechanical protection, making this cable ideal for direct outdoor installation, including aerial suspension and conduit laying.

Perfect for long-distance communication, fiber to the home (FTTH), and backbone network systems, this cable ensures consistent performance in a wide range of environments.

Key Benefits

  • Central Loose Tube with 4 Single Mode Fibers (G652D / G657A)

  • Corrugated Steel Tape Armored for Mechanical Protection

  • Two Parallel Steel Strength Members for Added Stability

  • UV-Resistant Polyethylene Outer Sheath

  • Water-blocking Design for Outdoor Use

  • Excellent Performance in Aerial and Pipeline Installations

  • Low Signal Attenuation, Long Transmission Distance

  • Meets IEC, RoHS, and ISO Quality Standards

Technical Specifications

Parameter Details
Fiber Count 4 cores (Single Mode - G652D or G657A1/A2)
Cable Structure Central loose tube, jelly-filled
Strength Member Two parallel steel wires
Armor Type Corrugated steel tape
Outer Sheath Black UV-resistant PE
Outer Diameter Approx. 7.0 mm
Operating Temp. -40°C ~ +70°C
Installation Method Aerial / Duct / Pipeline
Application Areas FTTH, FTTx, LAN, Backbone Transmission
