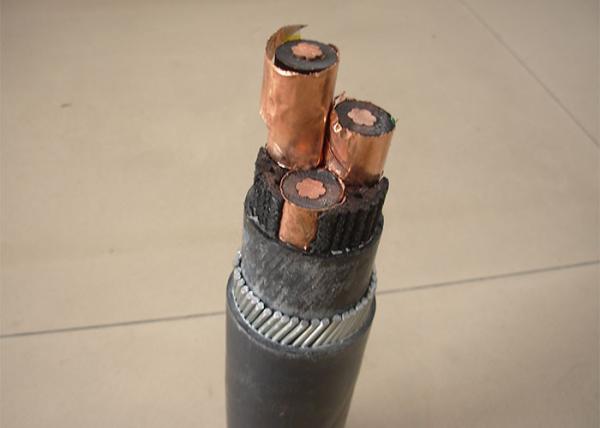

10KV 20KV 35KV Cu or Al Conductor XLPE Insulated Armored Power Cables
10KV 20KV 35KV Cu or Al Conductor XLPE Insulated Armored Power Cables
10KV 20KV 35KV Cu or Al Conductor XLPE Insulated Armored Power Cables
10KV 20KV 35KV Cu or Al Conductor XLPE Insulated Armored Power Cables
Specifications
Brand Name :
Yifang
Model Number :
Cu/XLPE/SWA/PVC, Al/XLPE/ATA/PVC etc.
Certification :
ISO, CE, KEMA, SGS
Place of Origin :
China
MOQ :
1000m
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
30,000KM Per Year
Delivery Time :
4 to 8 weeks
Packaging Details :
Wooden Drums, Steel-wooden Drums, Steel Drums
Voltage :
6KV to 35KV
Conductor :
Copper or Aluminum
Insulation :
XLPE
Armor :
Steel/Aluminum Wire or Steel/Aluminum Tape
Sheath :
PVC
Description

10KV 20KV 35KV Cu or Al Conductor XLPE Insulated Armored Power Cables

Applicable standards:

IEC60502, BS6622, SANS1339, AS/NZS1429.1, DIN VDE 0276-626, NFC 33-226, IEC60840, ICEA S-93-639. ICEA S-94-649

Production Scope:
a) National standard

Rated Voltage (kV) Cores 3.6/6 6/6 6/10 8.7/10 8.7/15 12/20 18/20 18/30 21/35 26/35
Cross-section (mm2) 1C 25-800 25-800 25-800 35-800 35-800 35-800 35-800 35-800 35-800 35-800
Cross-section (mm2) 3C 25-400 25-400 25-400 35-400 35-400 35-400 35-400 35-400 35-400

35-400

b) ICEA standard

Rated Voltage (V) Cores 5001-8000 8001-15000 15001-25000 25001-28000 28001-35000 35000-46000

Cross-section

(AWG or kcmil)

 1C

6AWG～

1600kcmil

2AWG～

1600kcmil

 1AWG～1600kcmil 1AWG～1600kcmil

2AWG～

1600kcmil

1/0AWG～

1600kcmil

Cross-section

(AWG or kcmil)

 3C 6AWG～800kcmil 2AWG～800kcmil 1AWG～800kcmil 1AWG～800kcmil 2AWG～800kcmil

4/0AWG～

800kcmil

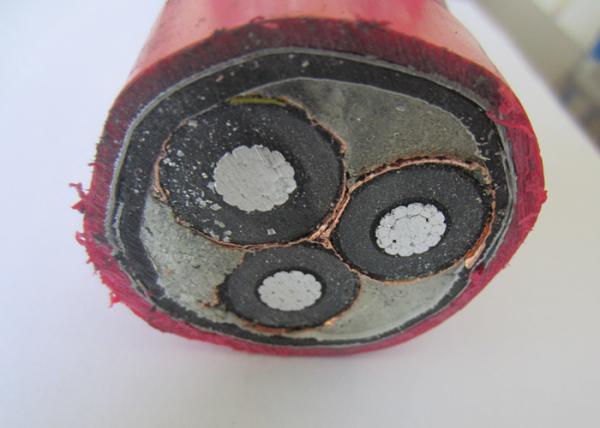

Construction:

Core 1core or 3cores
Conductor IEC60228 class 1 class 2 bear copper/Aluminum etc.
Conductor Screen Semi-conducting compound
Insulation XLPE
Insulation Screen Semi-conducting compound
Shield Copper wire/ Copper tape/AL-Plastic tape
Inner Sheath( optional) PVC/ PE/ LSZH
Armoured ( optional) Galvanized steel wire/Aluminum wire/Two layers of Aluminum tape gap-wrapped /Two layers of steel tape gap-wrapped / Galvanized steel interlocked armour/Aluminum alloy interlocked
Outer Sheath PVC/ PE/ LSZH
