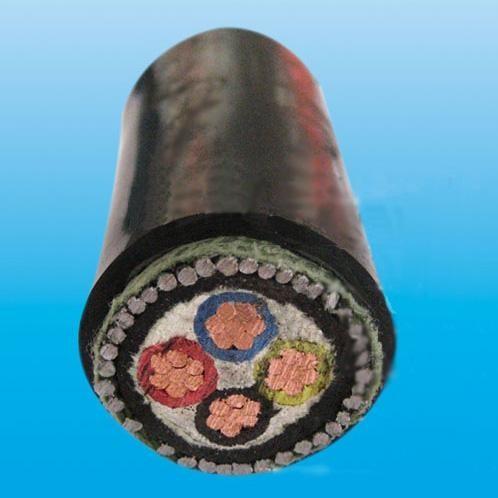

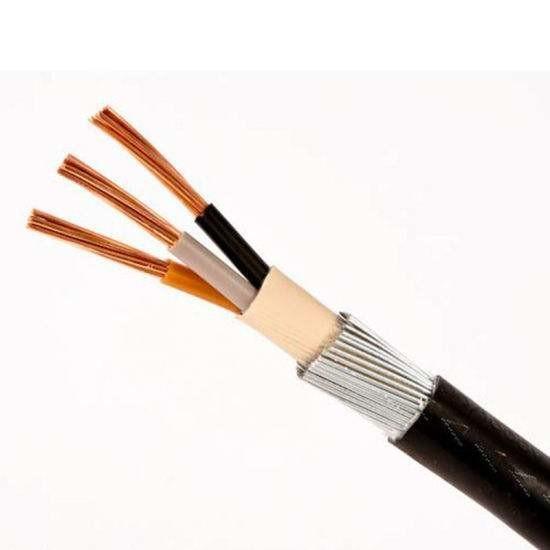

Black 1000V Low Voltage Power Cable Galvanized Steel Wire Armoured Cable
Black 1000V Low Voltage Power Cable Galvanized Steel Wire Armoured Cable
Black 1000V Low Voltage Power Cable Galvanized Steel Wire Armoured Cable
Black 1000V Low Voltage Power Cable Galvanized Steel Wire Armoured Cable
Black 1000V Low Voltage Power Cable Galvanized Steel Wire Armoured Cable
Black 1000V Low Voltage Power Cable Galvanized Steel Wire Armoured Cable
Specifications
Brand Name :
Yifang
Model Number :
Cu/PVC/SWA/PVC
Certification :
ISO,CE,SGS,BV
Place of Origin :
China
MOQ :
1000m
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
50,000KM Per Year
Delivery Time :
4-8 Weeks
Packaging Details :
Wooden Drums, Steel-wooden Drums, Steel Drums etc.
Voltage :
0.6/1KV
Conductor :
Copper
Insulation :
PVC
Armour :
Steel Wire
Sheath :
PVC
color :
black
Description

1KV Cu Conductor PVC Insulated Steel Wire Armoured PVC Sheath Power Cable

Application:

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

Applicable Standards:

IEC60502, GB/T12706

Production Scope:

Nominal Cross-section:1.5-1000mm2
Rated Voltage:600/1000V
Cores: 1, 2, 3, 4, 5, 2+1, 3+1, 3+2, 4+1 etc.
Color of insulation: Red, Yellow , Green ,Blue, Black ,yellow/green.


Construction:
Conductor: Copper
Insulation: PVC
Inner sheath (Optional): PVC
Armored (optional):
Galvanized steel wire
Outer Sheath: PVC

0.6/1KV LV Cable Cu/XLPE/SWA/PVC YJV32 3+1 Core Armoured Cable.

Cu conductor XLPEinsulated PVC sheated steel wire armored power cable not only have excellent electric, mechanical properties, but also have powerful resistance against chemical corrosion, heataging and environmental stress. Their structures are simple. The permissible maximum operating temperature is 90'C. It is convenient for using, and they can be laid with no restriction of different elevation.

Rate
Voltage(kv)
Sectional
Area(mm 2 )
No.of Core
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
1 Core 1.5-800 25-800 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200
2 Core 1.5-185 25-185
3 Core 1.5-400 25-400 25-400 25-400 35-400 50-400 50-400 50-400
4 Core 2.5-400 25-400
5 Core 2.5-400 25-400
Type Name Main Application
Cu Core Al Core
YJV
YJY		 YJLV
YJLV		 XLPE insulated,PVC or PE Sheathed Power Cable For laying indoor,tunnel,channel and undergroud,Unable to bear external mechanical force,but bear the traction force during laid
YJV22
YJV22		 YJLV22
YJV22		 XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power Cable For laying indoor,tunnel,channel and undergroud Able to bear external mechanical force,but unable to bear large pulling force
YJV32
YJV32		 YJLV32
YJLV32		 XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power Cable For laying in shaft with large difference of level.Able to bear external machanical force and maderate pulling force
YJV42
YJV42		 YJLV42
YJLV42		 XLPE Insulated,Thick Steel Wire Armoured,PVC or PE Sheathed Power Cable Able to bear positive pressure and pulling force

Main Technical Quota
DC resistance:conductor resistance of finished cable at 20’C per kilometer is not more than the following values.
Nominal Section
Area(mm 2 )		 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
Copper Core 12.1 7.41 4.61 3.08 1.83 1.15 0.727 0.524 0.387 0.268 0.193 0.153 0.124 0.0991 0.0754 0.0601 0.0470 0.0366 0.0283 0.0221
Aluminum Core 18.1 12.1 7.41 4.61 3.08 1.91 1.20 0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.778 0.0605 0.0469 0.0367
