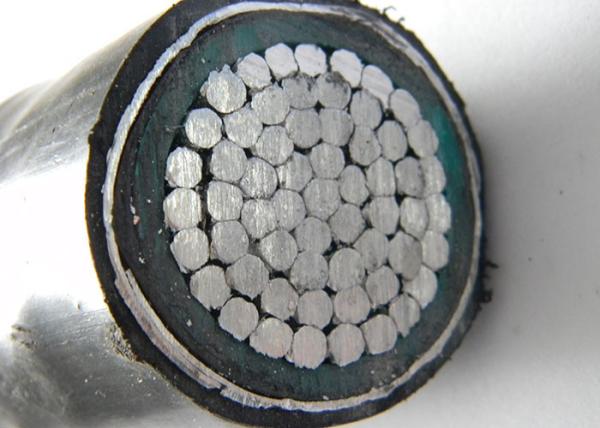

Aluminum Conductor Low Voltage Power Cable 4 Core PVC Sheath 16mm2
Aluminum Conductor Low Voltage Power Cable 4 Core PVC Sheath 16mm2
Specifications
Brand Name :
Yifang Cable
Model Number :
YJLV 4X16MM2
Certification :
CE,ISO,CCC,KEMA
Place of Origin :
China
MOQ :
1000m
Price :
$1.6-15/m
Supply Ability :
200km/month
Delivery Time :
5-10days
Packaging Details :
Wooden Drum
Color :
Black
Core :
4
Size :
16mm2
Material :
Aluminum
Description

Aluminum Conductor Low Voltage Power Cable 4 Core PVC Sheath 16mm2

1 Product Standard

This product is manufactured according to IEC60502.1. Or BS, DIN, ICEA standard as customer request.

2 Application

The product is suitable for power transmission and distribution lines with rated power frequency voltage up to and including 0.6/1KV.

Operating Performance

1). Rated power frequency voltage Uo/U: 0.6/1KV.
2). Max. Permissible continuous operating temperature of conductor: 90℃
3). Max. Short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 250℃

4). The ambient temperature under installation should not below 0℃
5). The bending radius of a cable should not be less than 15 times of the cable diameter.

6). The test voltage (A.C.): 3.5kV/5min.

7). The flame-retardant properties of cable comply with grade A, B, C of IEC60332.

3 Construction:

Conductor: Solid or stranded copper,aluminum

Insulation: Cross-linked polyethylene( XLPE or PVC)


Circuit Identification: The insulation shall be red, black


Filler: Polypropylene lament with lapped binding tape


Core-covering: Binding tape


Outer Sheath: Polyvinyl chloride (Black)

Package: Wooden Drum Package or Iron-wooden drum
