XLPE Insulation Low Voltage Power Cable , Copper Steel Tape Armoured Cable 4x16 Mm
XLPE Insulation Low Voltage Power Cable , Copper Steel Tape Armoured Cable 4x16 Mm
Specifications
Brand Name :
Yifang Cable
Model Number :
YJV22 4x16mm2
Certification :
ISO9001,OHS18001, CCC, SAA, SGS
Place of Origin :
China
MOQ :
1000m
Price :
$0.35/m
Supply Ability :
300km/month
Delivery Time :
5-25days
Packaging Details :
Wooden Drum
Insulation Material :
XLPE/PVC
Type :
Low Voltage
Application :
Industrial
Conductor Material :
AL/Copper
Jacket :
PVC
Description

XLPE Insulation Low Voltage Power Cable , Copper Steel Tape Armoured Cable 4x16 Mm

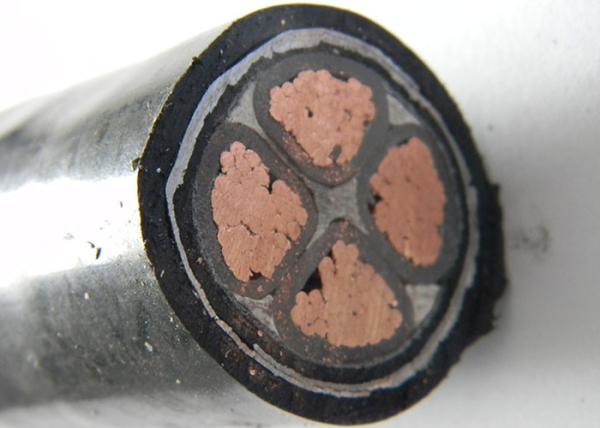

1. Construction

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Insulation : XLPE(cross-linked polyethylene) rated at 90 OC

Inner covering : PVC

Armoring : Stainless steel tape

Sheath : PVC type ST2 to IEC 60502, black

2. Applications

Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.


3. Standards

International: IEC 60502, IEC 60228, IEC 60332

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request


4. Technical data

Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D


5. Certificates
CE, RoHS, CCC, KEMA and more others at request
