Low Voltage Electrical Wiring 4 Core Power Cable With PVC / PE Sheath
Low Voltage Electrical Wiring 4 Core Power Cable With PVC / PE Sheath
Specifications
Brand Name :
Yifang
Model Number :
YJV32 or YJLV32
Certification :
ISO,
Place of Origin :
China
MOQ :
100meters
Price :
USD/meter
Supply Ability :
100000Meters oer month
Packaging Details :
Drums or Steel drums or Steel wooden drums
Conductor material :
Copper or Aluminum conductor
Insulation :
XLPE or PVC
Inner sheath :
PVC or PE
Armoured :
Steel wire or Steel tape
Sheath :
PVC or HDPE or LDPE or LSZH
Description
Low Voltage Electrical Wiring 4 Core Power Cable With PVC / PE Sheath

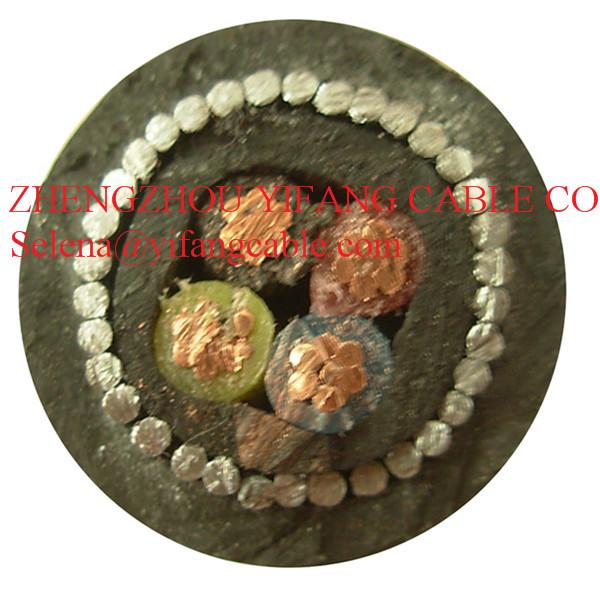

0.6/1KV CU/XLPE/SWA/PVC Sheath Cable

1. XLPE/PVC Insulation LV (Low Voltage) Power Cable cable belongs to cables rated voltage up to 1KV. They are used for laying indoor, tunnel, underground, canal, water and seabed, etc .
Standard available such as ASTM , BS , DIN ,NFC , AS/NZS , CSA , IS , etc.

2. Brief Construction:
2.1 Number of Core : 1Core , 2Core,3Core , 4Core , 5Core , 3+1Core(3.5Core) , 3+2 Core , 4+1Core , etc.
2.2 Conductor material: Copper or Aluminum (Stranded Round /Stranded compacted round/stranded compacted sector)
2.3 Insulation Material: XLPE/PVC/PE/LSHF
2.4 Inner sheath (applicable if there is armour layer): PVC/PE
2.5 Armour layer (if required) :Galvanized steel wire / Steel Tape
2.6 Outer sheath : PVC/PE

3. The max. conductor long time permissible operating temperature is 70 degree for PVC Insulation and 90degreefor XLPE Insulation ; In short circuit, max. Temperature is 160 degree for PVC Sheath and 250degreefor PVC Sheath.

4. Packing : In roll / In wooden drum / In Iron-wooden drum / In steel drum.

5. Certificate: ISO , CE , SGS, SONCAP , BV , COC,ETC.

6. For other detailed information, pls contact us directly .
Class 2 stranded conductors for single-core and multi-core cables
1
2
3
4
5
6
7
8
9
10
Nominal crosssectional area
Minimum number of wires in the conductor
Maximum resistance of conductor at 20ºC
Circular
Circular compacted
Shaped
Annealed copper conductor
Aluminium or aluminium alloy conductor
Cu
Al
Cu
Al
Cu
Al
Plain wires
Metal-coated wires
mm2
Ω/KM
Ω/KM
Ω/KM
0.5
7
36
36.7
0.75
7
24.5
24.8
1
7
18.1
18.2
1.5
7
6
12.1
12.2
2.5
7
6
7.41
7.58
4
7
6
4.61
4.7
6
7
6
3.08
3.11
10
7
7
6
6
1.83
1.84
3.08
16
7
7
6
6
1.15
1.16
1.91
25
7
7
6
6
6
6
0.727
0.734
1.2
