Airfield Ground Lighting Copper Tape Shielded Cable 5kV FAA L-824 1x6mm2 1x8mm2
Airfield Ground Lighting Copper Tape Shielded Cable 5kV FAA L-824 1x6mm2 1x8mm2
Airfield Ground Lighting Copper Tape Shielded Cable 5kV FAA L-824 1x6mm2 1x8mm2
Airfield Ground Lighting Copper Tape Shielded Cable 5kV FAA L-824 1x6mm2 1x8mm2
Specifications
Brand Name :
yifang
Model Number :
5kV FAA L-824
Certification :
CE ISO
Place of Origin :
China
MOQ :
1000 meter
Price :
USD 1~10 PER METER
Supply Ability :
10000 M PER WEEK
Packaging Details :
steel wooden drum or steel drum
Standard :
ICEA S-93-639 / NEMA WC74 FAA L-824 Type C FAA AC 150 / 5345-7E
Application :
Airfield lighting systems
Conductor :
Stranded bare or tinned copper.
Minimum Bending Radius static: :
static: 10×OD; dynamic: 20×OD
Operating Temperatures :
-40℃~+90℃
Impacted Resistant :
Yes
Weather Resistant :
Yes
Description

Airfield Ground Lighting Copper Tape Shielded Cable 5kV FAA L-824 1x6mm2 1x8mm2

5kV Airfield Ground Lighting Sheilded Cable FAA L-824 1x6mm2 1x8mm2

Applications

These cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational

Standards

FAA AC 150 / 5345-7E
FAA L-824 Type C
ICEA S-93-639 / NEMA WC74

Construction

Conductor: Stranded bare or tinned copper.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: XLPE.
Outer Semi-Conductor: Semi conducting tape or extruded.
Shield: Copper or brass tape(s). Tinned copper wire braid
Sheath: PVC. PE/XLPE

Technical Data

Technical Data

Rated Voltage Uo/U (Um) 5kV
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -40℃~+90℃
Minimum Bending Radius static: 10×OD; dynamic: 20×OD
Impacted Resistant Yes
Weather Resistant Yes

Specific properties

CONSTRUCTION NO. OF STRAND NOMINAL INSULATION THICKNESS NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
NO.× AWG - MM INCHES MM INCHES KG/KM LBS/KFT
1×6mm² 7/19 2.3 0.09 11.0 0.43 180 121
1×8 7/19 2.3 0.09 14.3 0.565 298 200
1×6 7/19 2.3 0.09 15.4 0.605 366 246
1×4 7/19 2.3 0.09 17.0 0.668 513 345

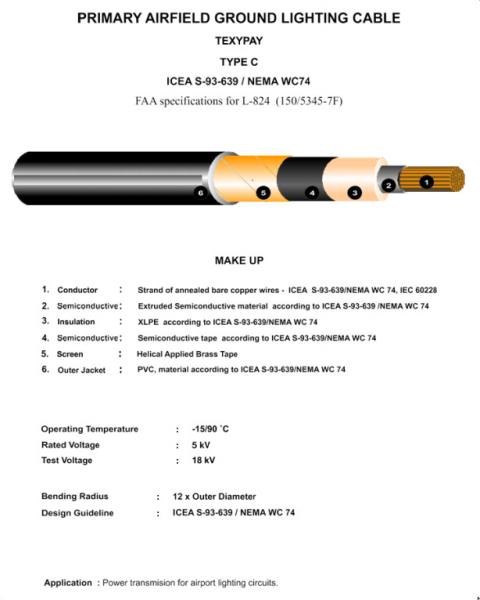

Drawing:

Airfield Ground Lighting Copper Tape Shielded Cable 5kV FAA L-824 1x6mm2 1x8mm2
