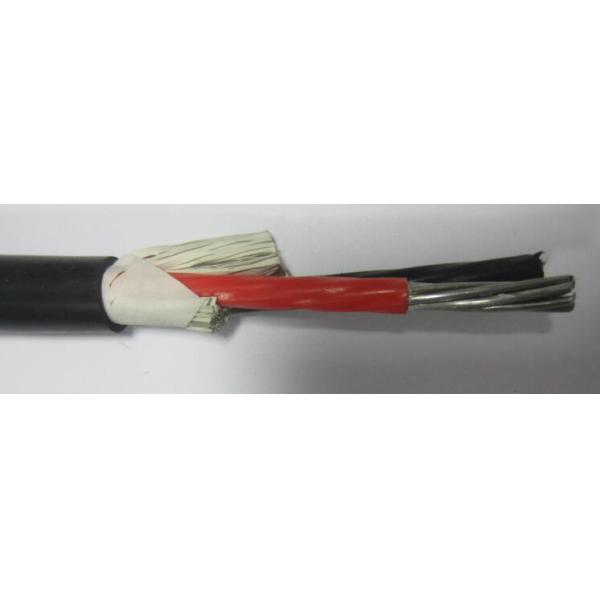

Multi Core Low Voltage Power Cable U-1000 AR2V / ARO2V Xlpe Aluminium Cable
Multi Core Low Voltage Power Cable U-1000 AR2V / ARO2V Xlpe Aluminium Cable
Specifications
Brand Name :
Yifang
Model Number :
R2V / RO2V
Place of Origin :
China
MOQ :
200meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300000/month
Delivery Time :
2~3 weeks
Packaging Details :
Wooden drum, steel-wooden drum
Standard :
NF C 32-321, IEC 60502
Rated voltage :
0.6/1KV
Conductor material :
Aluminum
Insulation material :
XLPE
Sheath material :
PVC
Flexibilité du câble :
Rigide
Température maximale sur l'âme :
90 °C
Température maximale sur l'âme en court circuit :
250 °C
Description

Multi Core Low Voltage Power Cable U-1000 AR2V / ARO2V Xlpe Aluminium Cable

U-1000 AR2V / ARO2V cable

Application:U-1000 R2V cables are intended for common use in industry and are particularly recommended for distribution systems low voltage energy. The use of multicore cables is adapted to remote control and telecontrol installations.

In case of high ambient temperature, apply the correction coefficients.

Standards : NF C 32-321, IEC 60502,etc

Rated Voltage Uo/U (Um) : 0.6/1 KV

Conductor: Aluminum

Conductor shape : Stranded circular or shaped (sector) conductor

Cores number: 1C, 2C, 3C,4C,5C....multicore.

Insulation: XLPE (Cross-Linked Polyethylene)

Sheath: PVC

Sheath Color: Black or Colors as your request.

Range of Nominal cross section: 1.5 mm2 ~ 630 mm2

Usage characteristics:

Max. conductor temperature in service: 90°C

Short-circuit max. conductor temperature: 250°C

Operating temperature, range : -25 .. 60°C

Flame retardant cables can be available by the special request.

Water blocking cables can be available by the special request.

Certificate: ISO ,CE , SGS, SONCAP , BV , ETC.

Dear friends,we can design and produce power cable with International and national standards according to your request
