Aluminum Copper Conductor Wire PVC Insulation PVC Sheath Up To 450 / 750V
Aluminum Copper Conductor Wire PVC Insulation PVC Sheath Up To 450 / 750V
Aluminum Copper Conductor Wire PVC Insulation PVC Sheath Up To 450 / 750V
Aluminum Copper Conductor Wire PVC Insulation PVC Sheath Up To 450 / 750V
Specifications
Brand Name :
YIFANG
Model Number :
KVV, ZR-KVV
Certification :
ISO9001, ISO18001, OHSAS
Place of Origin :
CHINA
MOQ :
500meters
Price :
USD0.1/m to USD 25/m
Supply Ability :
5000km per week
Delivery Time :
3-20 work days
Packaging Details :
Can be supplied in any length required.
Insulation :
PVC
Standard :
IEC
Conductor :
Copper / Aluminum
Rated Voltage :
450/750V 300/500V 300/300V
Usage :
Telecommunication
Sheath :
PVC
Description
Up to 450 / 750V Copper Conductor PVC Insulation PVC Sheath Electric Wire
1. Application:
Fixed wiring ,civil power ,mobile equipment
2. Construction
Conductor type:
IEC 60228-2004 class 1 or class 2.
Nominal Cross-section area: 0.5～400mm2
PVC insulation and PVC sheath
We can according to our client’s need and also provide technical data
3. Characteristic
Rated Voltage:
450/750V More-than 1.5mm2 single core conductor
300/500V Less-than 1.5mm2 single core and multicore conductor
300/300VLess-than 1.5mm2 multicore conductor
Test Voltage:
AC 1500V/5Min for 0.5～1mm2 multicore conductor
AC 2000V/5Min for 0.5～1mm2 single core and multicore conductor
AC 2500V/5Min Other.
Color of Insulation:
Red,Yellow,Green,Light blue,White,Black,Grey,Brown,Orange,Violet,Yellow/Green.
Notes
1. Ambient temperature for insulation shall not be lower than 0℃.
2. At nominal conditions, the conductor’s operating temperature is -15℃ to +70℃
3. Fire resistant wire conform to IEC 60331-2009, Flame resistant wire conform to IEC 60332-2004.
4. Standard
IEC 60227-2007

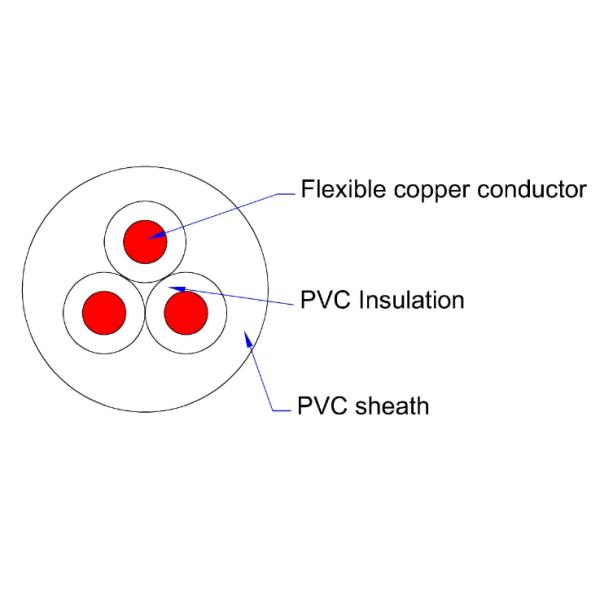

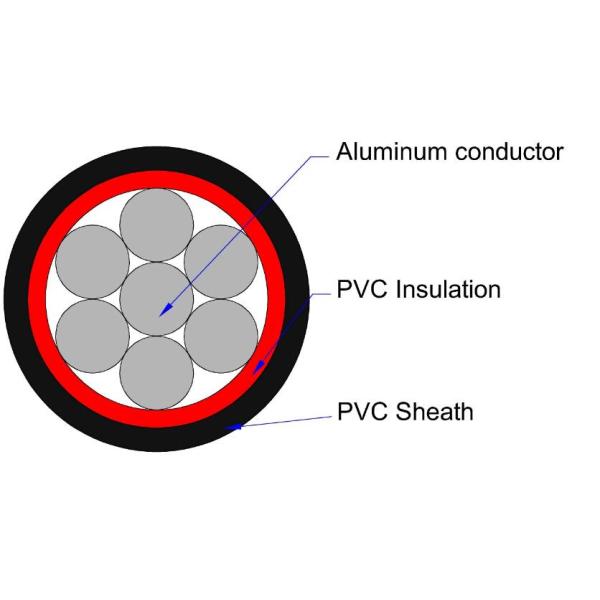

5. Drawing
Aluminum Copper Conductor Wire PVC Insulation PVC Sheath Up To 450 / 750V
Aluminum Copper Conductor Wire PVC Insulation PVC Sheath Up To 450 / 750V
