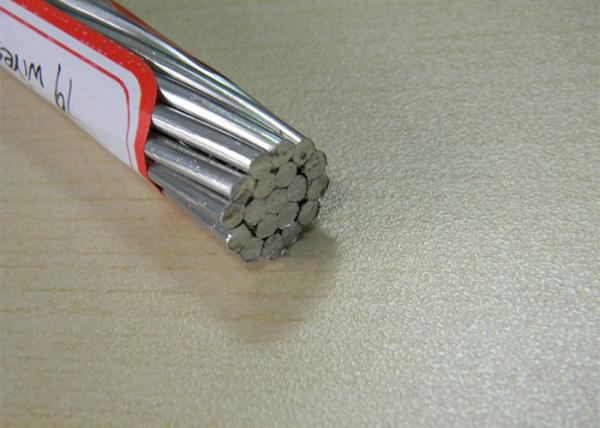

Aster Cable Almelec Bare Conductor Wire 228mm2anti Heat Aging Environment Stress
Aster Cable Almelec Bare Conductor Wire 228mm2anti Heat Aging Environment Stress
Specifications
Brand Name :
Yifang Cable
Model Number :
JKLH
Certification :
CE,ISO,UL,KEMA
Place of Origin :
China
MOQ :
1km
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :
500km per month
Delivery Time :
5-8working days
Packaging Details :
Wooden drum 1.1mx0.8mx1.1m, Wooden Steel Drum2.2mx1.45mx2.2m
Size :
54.6,93.3,117,228,288,336,507mm2
Standard :
NFC 34 215,EN 50182
material :
Aluminum Alloy
application :
overhead lv or mv power line
Coutry :
Senegal,Madagascar,Congo,Burkina Faso
Strands :
7,19,37,61
Description

Aster Cable Almelec Bare Conductor Wire 228mm2anti Heat Aging Environment Stress

Quick Details

· Place of Origin: Henan, China (Mainland)

· Brand Name: Zhengcable

· Model Number: almelec cable with 7,19,37,61,91strands

· Insulation Material: none

· Type: HV MV LV

· Application: Overhead

· Conductor Material: Aluminium alloy

· Jacket: None

· advantage: Resistance chemical corrosion

· advantage1: anti heat-ageing,environment stress

· advantage2: light in weight

· advantage3: especially for laying across

Packaging & Delivery

Packaging Details: wooden drum;wooden_iron drum;iron drum.
Delivery Detail: sample(3d);in stock(10d);general cargo(15d);OEM/ODM(20d)

Product Description

All aluminium alloy conductor, aaac cable with BS,ASTM,DIN,IEC standard

1 Description of aaac cable

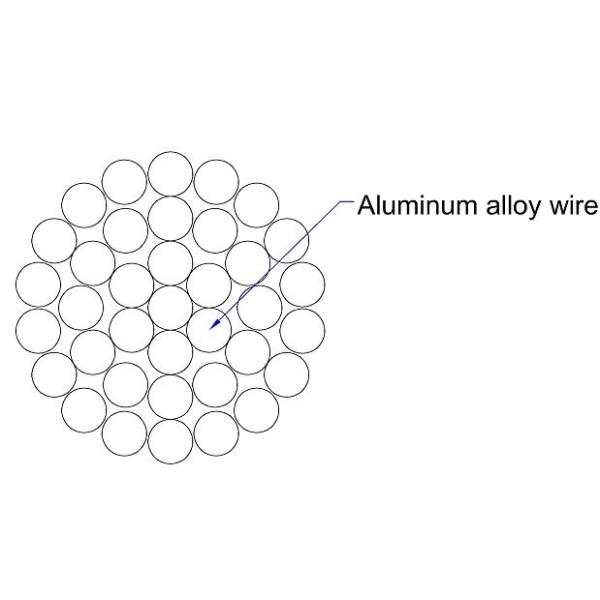

Aluminium alloy 6201 wires, concentrically stranded from 7 strands to 91 strands depending upon the size.

Tech specs of ASTER 228mm2
ITEM DESCRIPTION UNITS OFFER DATA
1 Manufacturer ‐ Zhengzhou yifang cable co.ltd
1.1 Type Model No ‐ ASTER 228mm2
1.2 Country of origin ‐ China
2 Structure ‐ 　
2.1 nominal section mm² 228
2.2 Number no. 37
2.3 Nominal diameter Diameter of single wire mm 2.8
2.4 Conductor diameter mm 19.6
3 MECHANICAL PROPERTIES AND ELECTRICAL 　 　
3.1 Mass per unit length of the cable Kg/Km 628
3.2 Breaking load kN 69.5
3.3 Resistance at 20 ° C Ohm/km 0.147
4 Standards 　 IEC 61089,NF EN 50182

Aster Cable Almelec Bare Conductor Wire 228mm2anti Heat Aging Environment Stress
