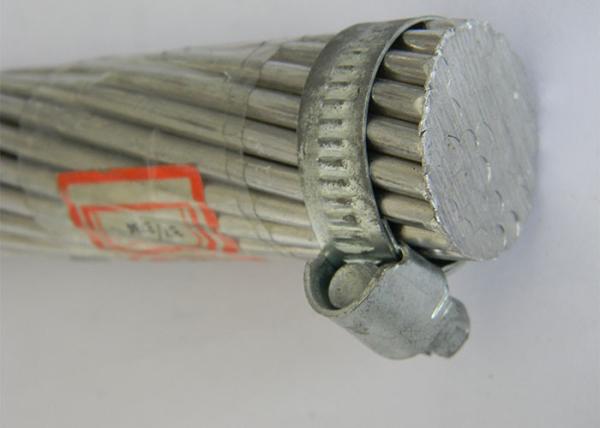

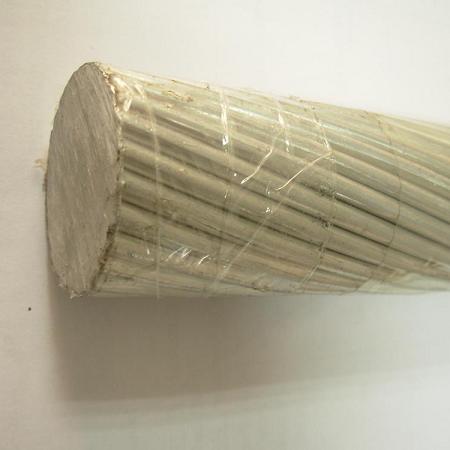

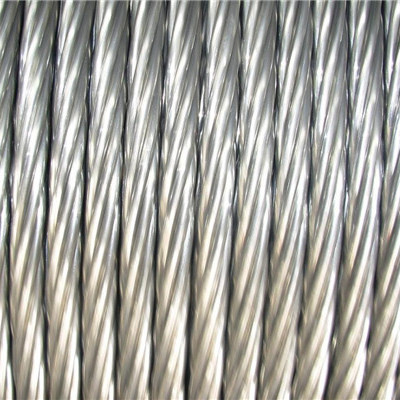

AAAC Cable Bare Conductor Wire BS AL3 British Standard BOX 15mm2 WILLOW 75mm2
AAAC Cable Bare Conductor Wire BS AL3 British Standard BOX 15mm2 WILLOW 75mm2
Specifications
Brand Name :
YIFANG
Model Number :
AAAC BS
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1000 meter
Price :
USD 1~10 PER METER
Packaging Details :
Treated Wooden Drum
Standard :
EN 50182 BS 3242
Application :
Overhead Power transformation
Material :
All aluminum alloy
High strength :
Yes
Voltage :
High voltage
Maket :
National state
Description

All aluminium alloy conductor AAAC BS AL3 British Standard BOX 15mm2 WILLOW 75mm2

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire),flame retardant mining cable, etc

AAAC-Technical characteristics / BS3242
Code Word Conductor size Stranding Sectional Area Diameter of Conductor Linear Density Rated Strength D.C. Resistance at 20°C
mm2 No. /mm mm2 mm kg/km kgf Ω/km
Box 15 7/1.85 18.82 5.55 51 537 1.74950
Acacia 20 7/2.08 23.79 6.24 65 680 1.38400
Almond 25 7/2.34 30.10 7.02 82 861 1.09340
Cedar 30 7/2.54 35.47 7.62 97 1014 0.92810
35 7/2. 77 42.18 8.31 115 1205 0.78040
Fir 40 7/2.95 47.84 8.85 131 1367 0.68800
Hazel 50 7/3.30 59.87 9.90 164 1711 0.54980
Pine 60 7/3.61 71.65 10.83 196 2048 0.45940
70 7/3.91 84.05 11.73 230 2402 0.39170
Willow 75 7/4. 04 89.73 12.12 245 2565 0.36690
80 7/4.19 96.52 12.57 264 2758 0.34410
90 7/4.44 108.00 13.32 298 3112 0.30230
Oak 100 7/4.65 118.90 13.95 325 3398 0.27690
100 19/2.82 118.70 14.10 326 3393 0.27870
Mulberry 125 19/3.18 150. 90 15.90 415 4312 0.21920
Ash 150 19/3.48 180.70 17.40 497 5164 0.18310
Elm 175 19/3.76 211.00 18.80 580 6030 0.15680
Poplar 200 37/2.87 239.40 20.09 659 8841 0.13850
225 37/3.05 270.30 21.35 744 7724 0.12270
Sycamore 250 37/3.22 303.20 22.54 835 8664 0.10930
Upas 300 37/3.53 362.10 24.71 997 10350 0.09156
Walnut 350 37/3.81 421.80 26.67 1162 12053 0.07860
Yew 400 37/4.06 479.00 28.42 1319 13685 0.06921
Totara 425 37/4.14 498.10 28.98 1372 14233 0.06656
Rub us 500 61/3.50 586.90 31.50 1620 16771 0.05662
Araucaria 700 61/4.14 821.10 37.26 2266 23450 0.04047

AAAC Cable Bare Conductor Wire BS AL3 British Standard BOX 15mm2 WILLOW 75mm2

AAAC Cable Bare Conductor Wire BS AL3 British Standard BOX 15mm2 WILLOW 75mm2
