NFC 34 215 EN 50182 Almelec Bare Conductor Wire 570mm2 For Overhead Lv Cable
NFC 34 215 EN 50182 Almelec Bare Conductor Wire 570mm2 For Overhead Lv Cable
NFC 34 215 EN 50182 Almelec Bare Conductor Wire 570mm2 For Overhead Lv Cable
NFC 34 215 EN 50182 Almelec Bare Conductor Wire 570mm2 For Overhead Lv Cable
Specifications
Brand Name :
Yifang Cable
Model Number :
JKLH
Certification :
CE,ISO,UL,KEMA
Place of Origin :
China
MOQ :
1km
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :
500km per month
Delivery Time :
5-8working days
Packaging Details :
Wooden drum 1.1mx0.8mx1.1m, Wooden Steel Drum2.2mx1.45mx2.2m
Size :
54.6,93.3,117,228,288,336,507mm2
Standard :
NFC 34 215 EN 50182
material :
Aluminum Alloy
application :
overhead lv or mv power line
Coutry :
Senegal,Madagascar,Congo,Burkina Faso
Strands :
7,19,37,61
Description

NFC 34 215 EN 50182 Almelec Bare Conductor Wire 570mm2 For Overhead Lv Cable

Quick Details

· Place of Origin: Henan, China (Mainland)

· Brand Name: Zhengcable

· Model Number: almelec cable with 7,19,37,61,91strands

· Insulation Material: none

· Type: HV MV LV

· Application: Overhead

· Conductor Material: Aluminium alloy

· Jacket: None

· advantage: Resistance chemical corrosion

· advantage1: anti heat-ageing,environment stress

· advantage2: light in weight

· advantage3: especially for laying across

Packaging & Delivery

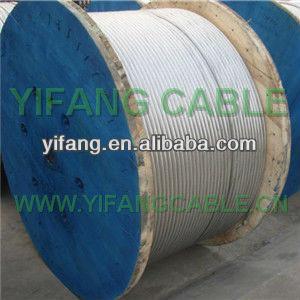

Packaging Details: wooden drum;wooden_iron drum;iron drum.
Delivery Detail: sample(3d);in stock(10d);general cargo(15d);OEM/ODM(20d)

Product Description

All aluminium alloy conductor, aaac cable with BS,ASTM,DIN,IEC standard

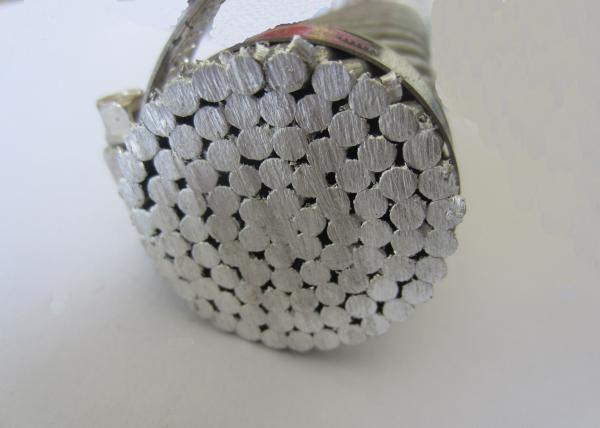

1 Description of aaac cable

Aluminium alloy 6201 wires, concentrically stranded from 7 strands to 91 strands depending upon the size.

TECHNICAL DATA SHEET
Câble Almélec 570 mm² ASTER
NO DESCRIPTION UNIT DATA
1 Type/ code name -- Almelec 570
2 Material -- Aluminium Alloy
3 Standards -- IEC 61089,NFC 34 125,NF EN 50182
4 Cross Section Area mm2 570
5 Conductor construction 　 　
　 Wire No. No.s 61
　 Nominal wire dia. mm 3.45
6 Approx. Overall Diameter mm 31.05
7 Approx. Weight kg/km 1556
8 Min.Breaking Load kN 173.85
9 Max. D.C. Resistant 20℃ Ω/km 0.0587

NFC 34 215 EN 50182 Almelec Bare Conductor Wire 570mm2 For Overhead Lv Cable
