YIFANG SCA ACSR Aluminium Conductor Steel Reinforced Cable 100mm2- DOG
YIFANG SCA ACSR Aluminium Conductor Steel Reinforced Cable 100mm2- DOG
YIFANG SCA ACSR Aluminium Conductor Steel Reinforced Cable 100mm2- DOG
YIFANG SCA ACSR Aluminium Conductor Steel Reinforced Cable 100mm2- DOG
Specifications
Brand Name :
YIFANG
Model Number :
ASCR
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1000meters
Price :
USD/M or USD/Ton
Supply Ability :
2000KM per month
Packaging Details :
drums
Material :
Steel wire& Aluminum wire
Strandard :
BS215 and ASTM B232,or other international standard
Sheath :
Bare conductor
Package :
Wooden drums
Description

YIFANG SCA ACSR Aluminium Conductor Steel Reinforced Cable 100mm2- DOG

ACSR according to IEC61089, BS215, CSA 61089, ASTM B-232, DIN 48204 standards
Widely used in power transmission lines with various voltage levels, and also used in power lines across great rivers, heavy ice area, and more, with special geographical situation

Excellent advantage of high strength, large current carrying capacity and good catenary property as well as wear-resistance, anti-crush and corrosion-proof with simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity

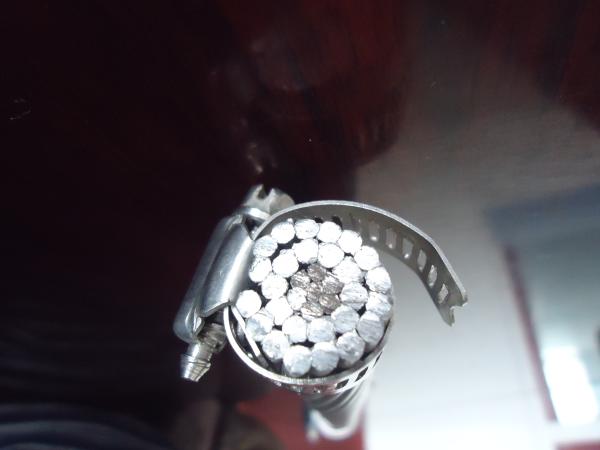

Galvanized steel core of 1, 7 or 19 wires surrounded by concentric layers of aluminum wire When a conductor with a high current carrying capacity and comparatively low strength is required, special constructions are available with a high aluminum content

A coating of non-oxidizing grease is normally applied to the steel cores of all conductors, in addition to the protection offered by the galvanizing of the steel wires
One or more layers of the aluminum wires can, if required, be supplied partially or fully greased
Main code name available


Compliant with ISO, CE, SGS, SONCAP and BV standards

Code name Nominal aluminum area mm 2

Stranding

structure

 Sectional area of aluminum Sectional area of galvanized steel

Total

sectional

area

 Overall diameter

Calculated breaking

load

 Calculate D.C resistance at 20degree

Final

modulus

of elasticity

Coefficient

of linear

expansion
Total

Al.

No.

 Al. Dia. St. No. St. Dia mm 2 mm 2 mm 2 mm kg/km daN Ω/km hBar / degree
Mole 10 6 1.50 1 1.50 10.62 1.77 12.39 4.50 43 414 2.7060 7900 19.1Χ10 -6
Squirrel 20 6 2.11 1 2.11 20.94 3.50 24.43 6.33 85 788 1.3659 7900 19. lΧ10 -6
Gopher 25 6 2.36 1 2.36 26.24 4.37 30.62 7.08 106 961 1.0930 7900 19.1Χ10 -6
Weasel 30 6 2.59 1 2.59 31.61 5.27 36.88 7.77 128 1146 0.9077 7900 19.1Χ10 -6
Fox 35 6 2.79 1 2.79 36.66 6.11 42.77 8.37 149 1320 0.7822 7900 19.1Χ10 -6
Ferret 40 6 3.00 1 3.00 42.41 7.07 49.48 9.00 172 1520 0.6766 7900 19.1Χ10 -6
Rabbit 50 6 3.35 1 3.35 52.88 8.81 61.70 10.05 214 1835 0.5426 7900 19.1Χ10 -6
Mink 60 6 3.66 1 3.66 63.18 10.52 73.71 10.98 255 2180 0.4545 7900 19.1Χ10 -6
Skunk 60 12 2.59 7 2.59 63.27 36.88 100.30 12.95 465 5300 0.4567 7900 15.3Χ10 -6

Certifications

We have the ISO , CCC, UL ,KEMA or other certifications. Meanwhile,It support to inspect the goods by the third party inspection company.

YIFANG SCA ACSR Aluminium Conductor Steel Reinforced Cable 100mm2- DOGYIFANG SCA ACSR Aluminium Conductor Steel Reinforced Cable 100mm2- DOG

YIFANG SCA ACSR Aluminium Conductor Steel Reinforced Cable 100mm2- DOG
