10KV ACSR Conductor Overhead Insulated Cable 120 SQMM with XLPE PE PVC Insulation

1. Application: Primarily used for overhead service application such as street lighting,outdoor lighting,and temporary service for construction, To be used at voltage of 0.6/1kv to 10V phase-to-phase or less at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross liked polyethylene insulated conductors.

2. Construction:

Number of core: Single core
Conductor: Compact stranded hard drawn aluminum wire conductor, All Aluminum Alloy Conductor or ACSR
Insulation: cross-linked polyethylene colour:Black
Classification : Normal operation 90 C
Emergency overload conditions 130C
Short circuit conditions 250C
Voltage rating 6-35KV
Reference: ICE 60502

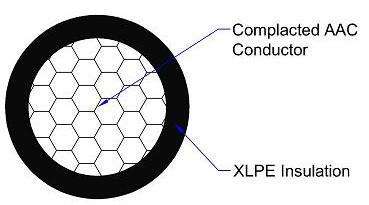

Drawing:

The use of features

1. Cable rated voltage: 10kV

2. The cable has a long-term allowable working temperature; polyethylene insulation is 70 ° C; PVC insulation is 70 ° C; XLPE insulation is 90 ° C

3. When short circuit (maximum time is less than 5 seconds), the maximum temperature of the cable; polyethylene insulation is 130 ° C; PVC edge is 160 ° C; cross-linked polyethylene insulation is 250 ° C

4. The ambient temperature of cable laying is not lower than -20 °C

5. The ambient temperature of the cable is -40 ° C ~ 40 ° C; the relative temperature is not more than 90% in the rainy season

6. Allowable bending radius of cable; rated voltage below 1KV cable: cable outer diameter D≤25mm, bending radius not less than 4D; cable outer

diameter D>25mm, bending radius not less than 6D. Rated voltage 10KV: single core cable: 20 × (D + d) ± 5%; multi-core cable: 15 × (D + d) ± 5%

where: D- cable actual outer diameter mm, d- cable conductor Actual outer diameter mm

Packaging:

Wooden Drum or Iron-Wooden Drum

Why Choose us:

1. Wide range of products:More than 20 types, within 15000 sizes.

2. Large enterprise scale:300 staffs , workshop 30000m2, more than 10000m2 for office buildings and staff quarters and restaurant.

3. Capacity: The annual production capacity achieves 1.5 billion RMB.
