15kV 25kV 2/0AWG Single Phase XLPE Insulated Tree Cable for Overhead Transmission

Applicant:

Overhead Cable - Installed with other spacer cables and a supporting messenger through a series of space-maintainingdevices (spacers). The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation particularly useful in congested areas.

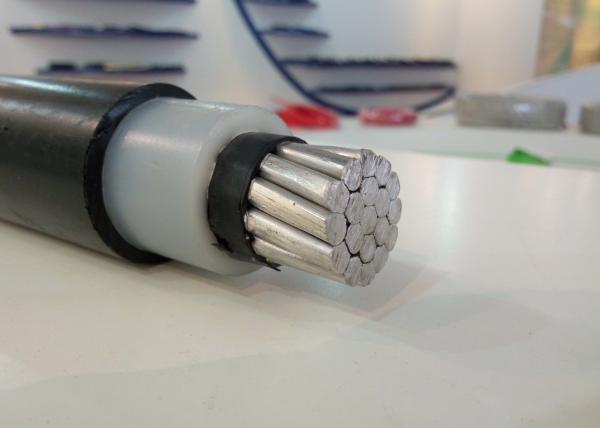

Cable structure:

Number of core: Single core
Conductor: Compact stranded hard drawn aluminum wire conductor sizes 35mm2 up to 240mm2.
Conductor Shield: Semi conductor
Insulation: cross-linked polyethylene colour: Natural
Sheathed: Track resistant cross-linked polyethylene Colour: Black
Classification : Normal operation 90 C
Emergency overload conditions 130C
Short circuit conditions 250C
Voltage rating 35KV
Testing Voltage: 49KV for 5minutes
Reference: ICEA S-66-524

or

Number of core: Single core
Conductor: Compact stranded hard drawn aluminum wire conductor, All Aluminum Alloy Conductor or ACSR
Insulation: cross-linked polyethylene colour:Black
Classification : Normal operation 90 C
Emergency overload conditions 130C
Short circuit conditions 250C
Voltage rating 6-35KV
Reference: ICE 60502

Tree wire (tree wire,Medium Voltage Covered Conductor) manufactured by HT meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN,IEC -etc

Drawing:

Packaging:

Wooden Drum or Iron-Wooden Drum

Why Choose us:

1. Wide range of products:More than 20 types, within 15000 sizes.

2. Large enterprise scale:300 staffs , workshop 30000m2, more than 10000m2 for office buildings and staff quarters and restaurant.

3.Capacity: The annual production capacity achieves 1.5 billion RMB.
