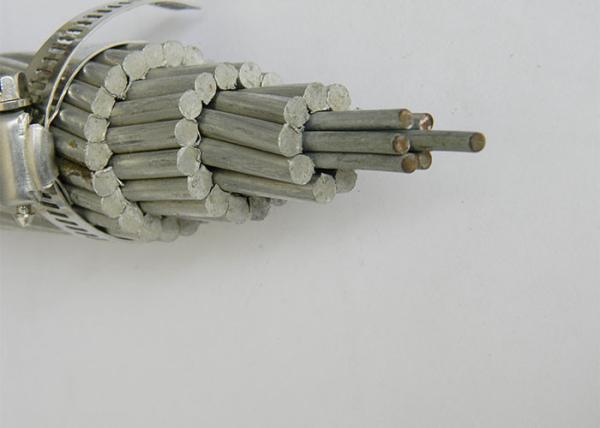

BS IEC ASTM DIN CSA JIS Bare Conductor Wire Aluminium Conductor Steel Reinforced
BS IEC ASTM DIN CSA JIS Bare Conductor Wire Aluminium Conductor Steel Reinforced
BS IEC ASTM DIN CSA JIS Bare Conductor Wire Aluminium Conductor Steel Reinforced
BS IEC ASTM DIN CSA JIS Bare Conductor Wire Aluminium Conductor Steel Reinforced
Specifications
Brand Name :
YIFANG
Model Number :
JLHA2 JLHA1
Certification :
ISO9001, ISO18001, OHSAS
Place of Origin :
CHINA
MOQ :
500meters
Price :
USD0.1/m to USD 25/m
Payment Terms :
L/C, T/T
Supply Ability :
5000km per week
Delivery Time :
3-20 work days
Packaging Details :
Drum design accordiong to customer's required quantity.
Rated Voltage :
Up to and including 750kv
Conductor :
Aluminum
Conductor Type :
Max cross-section 1750mm2
Application :
Overhead Transmission
Standard :
BS IEC ASTM DIN CSA JIS
Stranded :
Concentrically Stranded
Description

BS IEC ASTM DIN CSA JIS Bare Conductor Wire Aluminium Conductor Steel Reinforced

Aluminum conductor steel reinforced (or ACSR) cable is a specific type of high-capacity, high-strength stranded cable typically used in overhead power lines. The outer strands are aluminum, chosen for its excellent conductivity, low weight and low cost. The center strand is of steel for the strength required to support the weight without stretching the aluminum due to its ductility. This gives the cable an overall high tensile strength.

ACSR cables are available in several specific sizes, with multiple center steel wires and correspondingly larger quantities of aluminum conductors. For example, an ACSR cable with 72 aluminum conductors that requires a core of 7 steel conductors will be called 72/7 ACSR cable.

The higher resistance of the steel core is of no consequence to the transmission of electricity since it is located far below the skin depth where essentially no AC current flows.

1. Application:

Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

2. Construction:

Bare aluminum alloy 1350-H19 wires, concentrically stranded about a Class A galvanized coated steel core wire.

3. Specification:

1. ASCR Conductor 26/4.44mm+7/3.45mm

2. Overhead line conductor

3. Aluminum conductor steel reinforced

4. Concentric-Lay-Stranded

5. Coated steel reinforced

6. Factory price

4. Characteristic:

Conductor type: Max. cross-section 3500MCM/1750mm2, Max. stranded number 127Nos

We can produce according to our client’s need and also provide technical data.

5. Standard:

ASTM B-232, BS EN-50182, CSA C 61089, AS/NZS 3607, DIN 48204, IEC 61089, GB/T 1179, JIS 3110

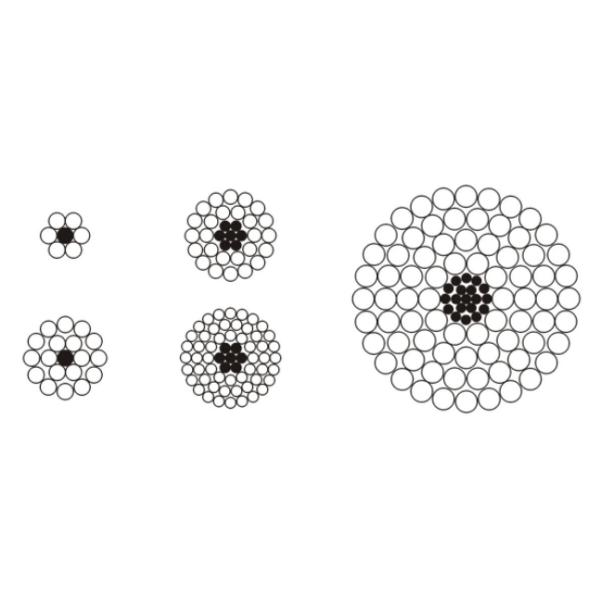

6. Drawing:


BS IEC ASTM DIN CSA JIS Bare Conductor Wire Aluminium Conductor Steel Reinforced
