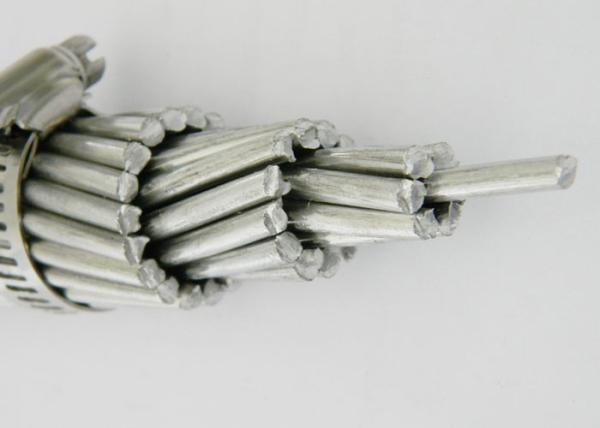

Overhead Transmission Bare Conductor Wire , AAC All Aluminum Conductor
Overhead Transmission Bare Conductor Wire , AAC All Aluminum Conductor
Overhead Transmission Bare Conductor Wire , AAC All Aluminum Conductor
Overhead Transmission Bare Conductor Wire , AAC All Aluminum Conductor
Specifications
Brand Name :
YIFANG
Model Number :
JL
Certification :
ISO9001, ISO18001, OHSAS
Place of Origin :
CHINA
MOQ :
500meters
Price :
USD0.1/m to USD 25/m
Supply Ability :
5000km per week
Delivery Time :
3-20 work days
Packaging Details :
Drum design accordiong to customer's required quantity.
Payment Terms :
L/C, T/T
Size :
1.5mm2 to
Conductor :
Aluminum
Conductor Type :
Max cross-section 2500mm2
Standard :
ASTM BS CSA DIN IEC
Voltage :
High Voltage
Stranded :
Concentrically Stranded
Description

Aluminum Overhead Transmission Cable Bare Conductor AAC Conductor

1. Brief Description:

AAC cable are the most favored type for use in the construction of relatively short span distribution schemes and are in common use on lines for voltage up to 60KV.

2. Application:

Overhead transmission and primary and secondary distribution

3. Manufactured standards:

ASTM B 231, BS EN-50182, CSA C 61089, AS/NZS 1531,DIN 48201, IEC 61089, GB/T 1179, JIS 3109

4. Construction:

Aluminum 1350-H19 wires,concentrically stranded

5. Conductor Type:

Max. Cross-section 5000MCM/2500mm2, Max. stranded number 127Nos

6. Technical Data

Part of ASTM B 231 (Clsaa A and Class AA)

Code Name Total Area Stranding and Wire Diameter Overall Diameter Linear Mass Nominal Breaking Load Max.D.C. Resistance at 20°c
AWG or MCM mm2 mm mm kg/km KN Ω/km
Peachbell 6 13.30 7/1.56 4.68 36.6 2.53 2.1690
Rose 4 21.10 7/1.96 5.88 58.2 3.91 1.3620
Iris 2 33.60 7/2.47 7.41 92.6 5.99 0.8574
Pansy 1 42.40 7/2.78 8.34 116.6 7.30 0.6801
Poppy 1/0 53.50 7/3.12 9.36 147.2 8.84 0.5390
Aster 2/0 67.40 7/3.50 10.50 185.7 11.10 0.4276
Phlox 3/0 85.00 7/3.93 11.79 233.9 13.50 0.3390
Oxlip 4/0 107.20 7/4.42 13.26 295.2 17.00 0.2688
Valerian 250 126.70 19/2.91 14.55 348.6 20.70 0.2275
Sneezewort 250 126.70 7/4.80 14.40 348.8 20.10 0.2275
Laurel 266.8 135.20 19/3.10 15.05 372.2 22.10 0.2133
Daisy 266.8 135.20 7/4.96 14.88 372.3 21.40 0.2133
Peony 300 152.00 19/3.19 15.95 418.3 24.30 0.1896
Tulip 336.4 170.50 19/3.38 16.90 469.5 27.30 0.1695
