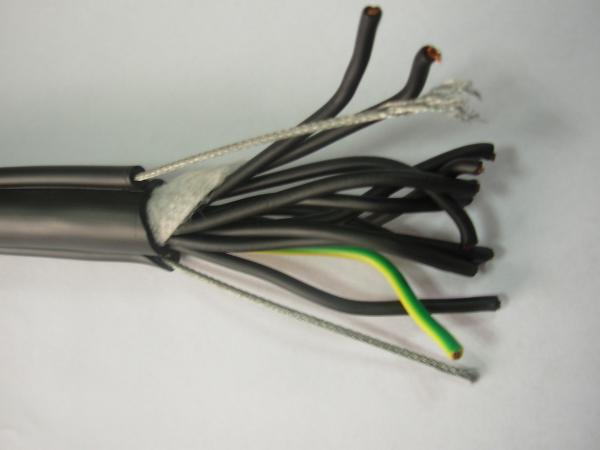

Rubber Insulated Flexible Cable 450/750V H07RN-F A07RN-F 12x2.5 7x2.5mm2
Rubber Insulated Flexible Cable 450/750V H07RN-F A07RN-F 12x2.5 7x2.5mm2
Rubber Insulated Flexible Cable 450/750V H07RN-F A07RN-F 12x2.5 7x2.5mm2
Rubber Insulated Flexible Cable 450/750V H07RN-F A07RN-F 12x2.5 7x2.5mm2
Specifications
Brand Name :
Yifang
Model Number :
H07RN-F A07RN-F
Certification :
CE, China MA
Place of Origin :
China
MOQ :
1000 meter
Price :
USD 4~6 per meter
Supply Ability :
100000 per month
Packaging Details :
Treated wooden drums
Standard :
DIN VDE 0282-4/2005
Performance :
Oil and weather Resistant, mechanical stress Flame-retardant
Rated Voltage (U0/U) :
450/750 V
High Voltage Test :
2.5kV
Temperature :
60℃~250℃
Sheath Color :
Black or Yellow
Description

RUBBER INSULATED FLEXIBLE CABLE VOLTAGE 450/750V

H07RN-F (A07RN-F) 12x2.5 and 7x2.5

Application

For general use in dry, humid and wet locations, for outdoor use, for agricultural applications or in locations subject to explosion hazards. Also suitable for connections of industrial and workshop electrical equipment submitted to medium-level mechanical stress. It can be used for fixed installations in temporary buildings as well as for connections of mobile machines and hoists.

Global data

Brand : YIFANG

Standard: DIN VDE 0282-4/2005

Design features

Conductor Copper tinned, Fine wire, class 5 according to IEC 60228
Insulation

Ethylene Propylene Rubber (EPR), EI4 Grade

Number code according to VDE 0282-4/2005
Outer Sheath Chlorinated Polyethylene (CPE), EM2 Grade
Marking

(Year of manufacture) Yifang Cable A07RN-F (number of cores) x (cross-section) CU/EPR/CPE (rated voltage)

Electrical parameters

Rated Voltage (U0/U) : 450/750 V

High Voltage Test : 2.5kV

Thermal parameters

Max. permissible temperature at conductor ≥60 °C

Max. short circuit temperature of the conductor 250 °C

Environment Condition

Oil and weather Resistant, mechanical stress

Flame-retardant

No. Description Unit Data Data
1 Reference standard VDE 0250,Part 812
2 Rated Voltage kV 450/750 450/750
3 Size mm2 7x2.5 12x2.5
4 Conductor
Nominal Cross-section Area mm2 2.5 2.5
Max. Stranding Wire Diameter mm 0.26 0.26
Max. Diameter of Conductor mm 2.4 2.4
Max.D.C Resistance at 20 ℃ Ω/km 8.21 8.21
5 Insulation
Nominal thickness mm 0.9 0.9
Color of insulation -- Black with white numbers except Yellow-green ground core
7 Outer Sheath
Nominal thickness mm 2.7 3.1
Color of sheath -- Yellow Yellow
8 Approx. Overall Dia. of cable mm 17.7~21.7 20.6~26.2
9 Approx. Weight kg/km 890 1390
10

Minimum Bending Radius

for installation

--

≤5D (D:overall diameter )(Fixed )

≤10D (D:overall diameter )(Flexible)
11 Standard Packing Length m 1000 1000

Rubber Insulated Flexible Cable 450/750V H07RN-F A07RN-F 12x2.5 7x2.5mm2
