YIFANG Medium Voltage Power Cable , EPR Insulated Rubber Sheathed Cable
YIFANG Medium Voltage Power Cable , EPR Insulated Rubber Sheathed Cable
Specifications
Brand Name :
YIFANG
Model Number :
YC
Certification :
ISO9001, ISO18001, OHSAS
Place of Origin :
CHINA
MOQ :
500meters
Price :
USD0.1/m to USD 25/m
Supply Ability :
5000km per week
Delivery Time :
3-20 work days
Packaging Details :
Cable can be supplied in any length required.
Conductor :
Copper/ Aluminum
Insulation :
EPR/HEPR
Voltage :
Medium Voltage
Insulation Screen :
Semi-conductive material
Metal Screen :
Copper wire or copper tape
Sheath :
Chloroprene rubber/chlorosulfonated polyethylene
Description

Medium Voltage Copper Conductor EPR Insulated Rubber Sheath Cable

1. Application:


Use as a trailing cable on AC mining equipment where service conditions are severe and maximum safety is mandatory (such as power shovels and drag lines in open-pit mines, quarries. gantry crones and slag reclaiming.
High Voltage distribution in underground mines where frequent relocation is necessary.


2. Construction:


1. Conductor: Stranded soft-drawn bare or coated or uncoated copper
2. Conductor Shield: Extruded semi-conducting layer
3. Insulation: Ethylene propylene rubber (EPR)
4. Insulation Shield: Tinned copper braid over semi-conducting layer
5. Ground Conductors: Two stranded soft-drawn coated copper conductors
6. Ground Check: Stranded bare copper wire with yellow insulation
7. Temperature: 90°C
8. Voltage: 5kV

3. Characteristic:

AWG Size (Power)
No of Strands (Power)
AWG Size (Ground)
No of Strands (Ground)
O/A Diam. (Imperial)
6 AWG
133
10 AWG
19
1.290 in.
4 AWG
133
8 AWG
133
1.400 in.
2 AWG
259
6 AWG
133
1.590 in.
1/0
266
4 AWG
133
1.860 in.
2/0
342
3 AWG
133
2.000 in.
4/0
532
1 AWG
133
2.310 in.
250 MCM
427
1/0
133
2.510 in.
350 MCM
427
2/0
133
2.810 in.
500 MCM
427
4/0
259
3.190 in.


4. Standard:


ICEA S-68-516

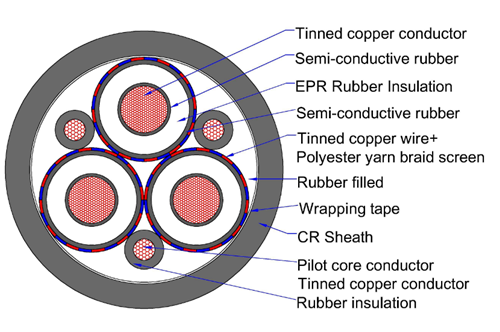

5. Drawing:

YIFANG Medium Voltage Power Cable , EPR Insulated Rubber Sheathed Cable
