2kV 8kV 25kV SHD-GC TYPE SHD-GC PORTABLE POWER MINING INDUSTRIAL CABLE EPR/CPE

Application

Designed for use as trailing cables on AC mining
equipment:
- Where a ground-check conductor is required
for fail-safe monitoring
- With Bretby-type cable handling devices on
longwall shearers
- Where induced voltages in the grounding
system will not produce a hazard
- On low- and medium-voltage AC circuits
where shielding is desired or required

Global data


Brand : YIFANG


Standard: DIN VDE 0282-4/2005


Design features

Conductor : Annealed flexible stranded tin coated copper in accordance with ASTM B-33 or B-3 for uncoated ,ASTM B 172 or B 173

Conductor shield : Semi-conducting layer over the conductor

Insulation: Ethylene-propylene rubber (EPR).

Insulation shield: Semi-conducting tape +Composite tinned copper/polyamide braid

Circuit identification: The polyamide in the shielding braid is colored black , white ,red in accordance with ICEA S-75-381

Grounding: Annealed tin coated copper acc. Tab. 3-25 of ICEA S-75-381.

Ground check: Annealed tin coated copper acc. Tab. 3-22 of ICEA S-75-381 . Color of insulation :Yellow

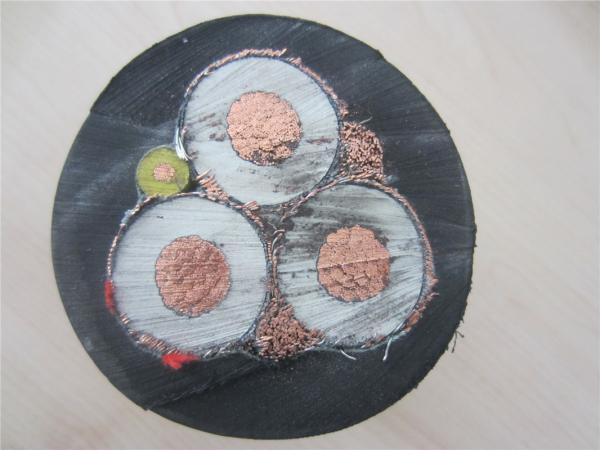

Assembly: Three power, the ground check ,two bare grounding cabled a single faced rubber filled binder tape applied overall . Integral filled jacket

Outer jacket: Extra-heavy-duty CPE.

Color of outer jacket : Black or other colors can be provided

Minimum bending radius : Eight times overall diameter of the cable




Thermal parameters


Max. permissible temperature at conductor ≥90 °C

Max. short circuit temperature of the conductor 250 °C




Features

• Flexible insulation shield provides shock hazard
protection
• Excellent heat, moisture, steam, oil, chemical
and radiation resistance

SHD-GC 8kV Technical Parameter 3x250MCM+2x1/0AWG+1x8 AWG
