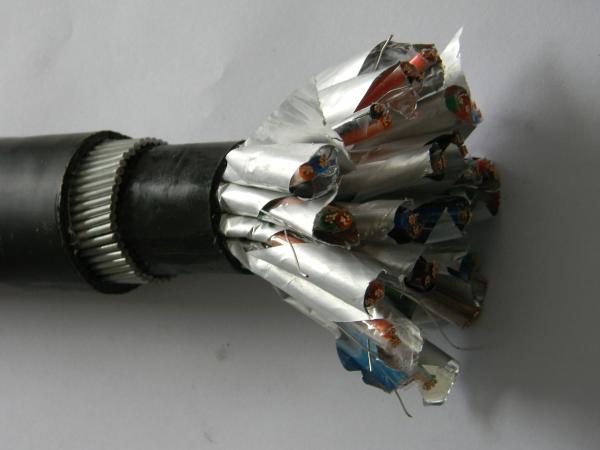

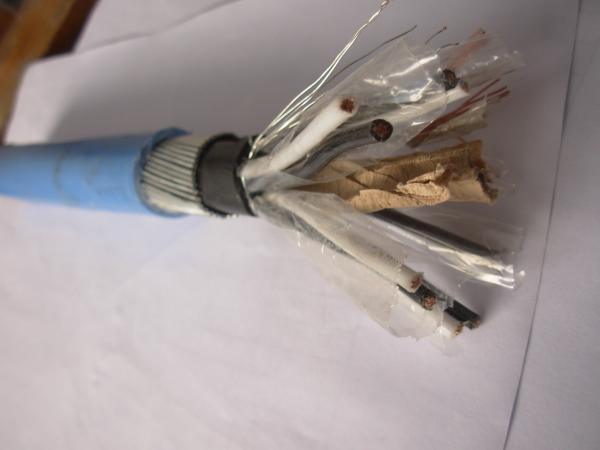

Copper Conductor Instrumentation Cable / 2 Wire Twisted Pair Cable BS 5308
Copper Conductor Instrumentation Cable / 2 Wire Twisted Pair Cable BS 5308
Copper Conductor Instrumentation Cable / 2 Wire Twisted Pair Cable BS 5308
Copper Conductor Instrumentation Cable / 2 Wire Twisted Pair Cable BS 5308
Specifications
Brand Name :
YIFANG
Model Number :
One pair/ Two pairs and above
Certification :
ISO9001, ISO18001, OHSAS
Place of Origin :
CHINA
MOQ :
500meters
Price :
USD0.1/m to USD 25/m
Supply Ability :
5000km per week
Delivery Time :
3-20 work days
Packaging Details :
Cable can be supplied in any length required.
Conductor :
Copper
Armoured :
Steel wire/ Steel tape
Insulation :
PVC
Rated Voltage :
600/1000V
Sheath :
PVC
Application :
Reducing interference
Description

600 / 1000V PVC Insulation Copper Conductor Instrumentation Cable

Instrumentation Cable:


1. Professional manufacturer
2. Standard: BS 5308
3. the best price quality & service.

Application:


Instrumentation cable can be used in interconnection of process control, communication & panel control
systems like oil exploration, cement, paper, steel, power generation and others.

Specifications:

Conductor Class 5 flexible plain copper
Insulation PVC / XLPE
Individual shield Aluminum foil-polyester tape with solid / 7 strands tinned copper drain wire for each pair or triad.
Overall shield Aluminum foil-polyester tape with solid / 7 strands tinned copper drain wire
Sheath PVC


Color code:
• Pairs are black white and alpha numeric coded;
• Triads are black white red and alpha numeric coded
Voltage: 300/500V 450/750V 600/1000V
Operating temperature with PVC insulation: Maximum 70°C
Operating temperature with XLPE insulation: Maximum 90°C
Standard: BS 5308

Other customized options:
• XLPE insulation
• coloured outer sheath
• non-shielded or overall shielded cables upon request
• Galvanized steel wire armoured type
• pairs are binded with Polyester tape and overall shielded with copper wire brandings
• other constructions available upon request
