Copper Conductor 15kv Concentric Neutral Cable 2x185mm2 2x300mm2
Copper Conductor 15kv Concentric Neutral Cable 2x185mm2 2x300mm2
Copper Conductor 15kv Concentric Neutral Cable 2x185mm2 2x300mm2
Copper Conductor 15kv Concentric Neutral Cable 2x185mm2 2x300mm2
Copper Conductor 15kv Concentric Neutral Cable 2x185mm2 2x300mm2
Copper Conductor 15kv Concentric Neutral Cable 2x185mm2 2x300mm2
Specifications
Brand Name :
Yifang
Model Number :
Concentric Cable
Certification :
CE, ISO, KEMA
Place of Origin :
China
MOQ :
1000 meter
Price :
USD 1~10 per meter
Payment Terms :
T/T
Supply Ability :
USD5.8-9/m
Delivery Time :
10 days
Packaging Details :
Treated Wooden Drum
Standard :
IEC 60502
Working Temperature :
90°C
Sheath Color :
Black
Structure :
CU/XLPE/CU/PVC
Aplication :
Power translated or High voltage grounded
Voltage :
15kV or higher voltage
color :
black
Description

15kV Concentric Cables copper conductor XLPE insulation PVC sheath 2x185mm2 2x300mm2

APPLICATIONS:

URD TRXLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunlight, To be used at 5kV upto 35kV at conductor temperatures not to exceed 90 deg. C for normal operation.

SPECIFICATIONS:

TRXLPE insulated URD cables meets or exceeds all applicable requirements of thefollowing standards, and guaranteed all cables manufactured and tested under this standards.

- ANSII ICEA S94-649

- AEIC CS-8

- ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231

- UL1072

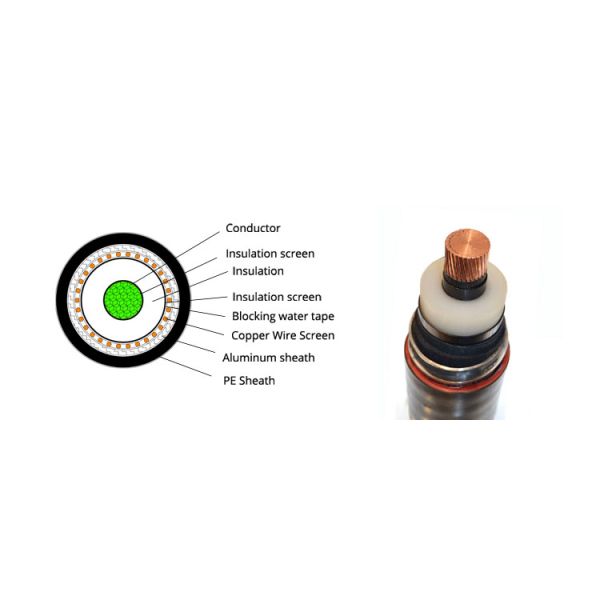

CONSTRUCTION:

Conductor : Bare aluminium or copper, stranded class B compressed stranding

Conductor Shield :Extruded semi-conducting compound

Insulation : TRXLP (TreeRetardant XLPE) or XLPE

Insulation Shield : Extruded semi-conducting compound

Concentric Neutral : Uncoated copper concentric neutral wires (coated copper are optional)

Encapsulated Jacket : Non-conducting LLDPE embedded jacket with extruded red stripes.

PVC or Semi-conducting jacket are available upon request

MAXIMUM CONDUCTOR TEMPERATURE:

Normal continuous at 90 ℃, Overload at 130 ℃ and Short circuit at 250 ℃

FEATURES & BENEFITS, OPTIONS:

- Triple extruded construction by dry curing process guarantees excellent quality of cables

- TRXLPE insulation offers proven superior life span than conventional XLPE cables

- Triplex type is optional, it brings you saving installation cost

- Strand-filled conductor & Water-blocking jacket is available upon request

DATE SHEET

Condctor Copper Neutral (1/3) diameter(inch) Weight (Pounds)
AWG orMCM Stranding Number of Wires SizeAWG (Solid) Conductor

Over

Insulation

Over Insul.

Shield

Over Neutral

Wires

Over

Encaps. Jkt.

 Conductor

Concentric

Neutral

TotalNo

Jacket

 Total WithJacket
1/0 19 wire 9 14 0.37 1.12 1.23 1.35 1.46 325.8 119.2 659 4926
2/0 19 wire 11 14 0.42 1.17 1.27 1.40 1.50 410.9 146.3 775 808
3/0 19 wire 14 14 0.47 1.22 1.32 1.48 1.59 518.1 185.9 900 923
4/0 19 wire 11 12 0.53 1.28 1.38 1.54 1.71 653.3 228.0 1110 1055
250 37 wire 13 12 0.57 1.33 1.44 1.64 1.81 771.9 282.1 1330 1292
350 37 wire 12 10 0.68 1.44 1.54 1.70 1.89 1081 398.0 1633 1519
500 37 wire 17 10 0.81 1.57 1.72 1.88 2.04 1544 543.5 2002 1886
750 61 wire 25 10 0.99 1.76 1.93 2.11 2.28 2316 801.5 2650 2289
1000 61 wire 33 10 1.14 1.92 2.06 2.27 2.43 3088 1058 3847 2960

Copper Conductor 15kv Concentric Neutral Cable 2x185mm2 2x300mm2
