Airdac Sne / CNE XLPE Power Cable 4mm2 6mm2 10mm2 16mm2 custom
Airdac Sne / CNE XLPE Power Cable 4mm2 6mm2 10mm2 16mm2 custom
Airdac Sne / CNE XLPE Power Cable 4mm2 6mm2 10mm2 16mm2 custom
Airdac Sne / CNE XLPE Power Cable 4mm2 6mm2 10mm2 16mm2 custom
Airdac Sne / CNE XLPE Power Cable 4mm2 6mm2 10mm2 16mm2 custom
Airdac Sne / CNE XLPE Power Cable 4mm2 6mm2 10mm2 16mm2 custom
Airdac Sne / CNE XLPE Power Cable 4mm2 6mm2 10mm2 16mm2 custom
Airdac Sne / CNE XLPE Power Cable 4mm2 6mm2 10mm2 16mm2 custom
Specifications
Brand Name :
yifang
Model Number :
sne cable
Certification :
CE CCC ISO
Place of Origin :
China
MOQ :
1000 meters
Price :
USD0.66-1.22/m
Payment Terms :
T/T
Supply Ability :
6000km per year
Delivery Time :
20 days
Packaging Details :
wooden drum steel-wooden drum
conductor :
copper
class :
2
insulation :
XLPE
sheath :
PVC or XLPE
type :
SNE or CNE
color :
black
Description

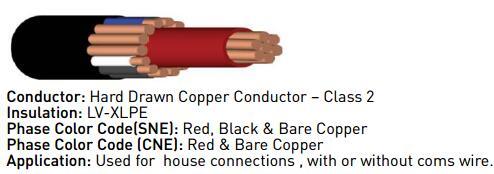

Concentric cable Airdac Sne/CNE copper conductor XLPE insulation XLPE sheath 4mm2 6mm2 10mm2 16mm2

Ⅰ Applications

The concentric cable is used as electric service entrance from the power distribution network until meter panel ,and as feeder cable from the meters panel until the panel or general distribution panel,just as it is specified in the National electric code,

This type of conductor can be used in dry and wet place,directly buried or outdoor;

It’s maximum temperature of operation is 70℃( PVC or PE insulation) or 90℃ (XLPE insulation) and it’s voltage of service for all the applications is 600V.

Ⅱ Specification

1. Conductor : Copper or Aluminum or 8000 series Aluminum Alloy

2. Insulation: PVC or PE or XLPE

3. Concentric neutral: Copper or Aluminum or 8000 series Aluminum Alloy

Sheath: PVC or PE or XLPE

Copper conductor XLPE Insulated Bare Neutral 4mm 6mm 10mm 16mm Airdac Cable Concentric cable.

Standards

ASTM IEC BS and so on

Voltage:

600/1000V

Concentric Cable Construction

Conductor

Plain copper or aluminum conductors, IEC 60228, solid or stranded versions, conductor types

10-16 mm² round, solid conductors .

10-25 mm², stranded conductor.

35-240 mm², sector shaped conductor, stranded

Insulation

PVC(Polyvinyl Chloride ), XLPE(Cross-Linked Polyethylene)

Filler

PVC(Polyvinyl Chloride)

Concentric Conductor

Copper wires , Aluminum wires

Sheath

PVC(Polyvinyl Chloride)

Minimum Bending Radius

Single Core: 15* overall diameter

Multi Core: 12* overall diameter

0.6/1kV 1+1-core Cu(Al)/PVC/PVC Concentric Conductor Cable
Nominal cross sectional area of conductor(mm2)
1×10+1×10
1×16+1×16
1×25+1×25
2×10+1×10
2×16+1×16
2×25+1×25

Airdac Sne / CNE XLPE Power Cable 4mm2 6mm2 10mm2 16mm2 customAirdac Sne / CNE XLPE Power Cable 4mm2 6mm2 10mm2 16mm2 custom
