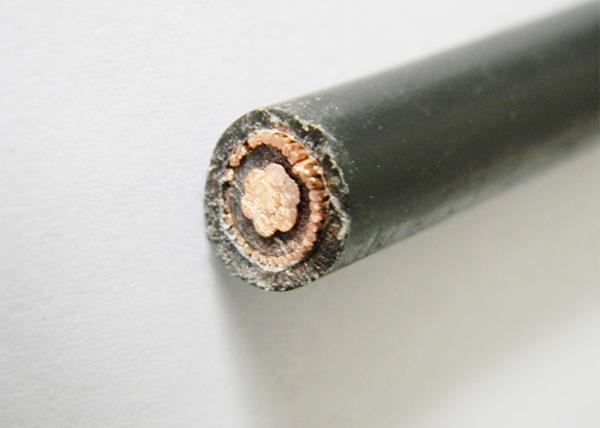

PE Outer Jacketed Concentric Neutral Cable 1KV Cu Or Al 8000 Conductor
PE Outer Jacketed Concentric Neutral Cable 1KV Cu Or Al 8000 Conductor
Specifications
Brand Name :
Yifang
Model Number :
Concentric
Certification :
ISO, CE, SGS, BV
Place of Origin :
China
MOQ :
1000m
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
According to order qty.
Delivery Time :
According to order qty.
Packaging Details :
Wooden Drums, Steel-wooden Drums, Steel Drums etc.
Voltage :
0.6/1KV
Phase Conductor :
Copper or Aluminum Alloy
Insulation :
XLPE
Neutral Conductor :
Copper or Aluminum Alloy
Jacket :
PE
Cable Core :
Single or multicores
Description

1KV Cu or Al 8000 Conductor XLPE Insulation PE Outer Jacket Concentric Cable

Application:
The cables are for the service-entrance.


Applicable standards:
As per Customer’s technical specifications.


Production Scope:
Rated Voltage: Up to 600V or upon customer’s request.
Core Number: 1, 2, 3 cores with neutral core
Coverage: 100% and non-100% coverage
Nominal cross section: 6AWG to 4/0AWG


Construction:
For Main Core:
Conductor: Copper or Aluminum
Insulation: XLPE/PE/ PVC

For Neutral conductor: Copper or aluminium, Wrapped on insulation or inner sheath
For Communication core (optional):
Conductor: Copper
Insulation: PE

External coverage: XLPE, PVC, PE (Weather resistant)

Packing and Loading Details:

Packing: By Wooden Drums, Steel-wooden Drums, Steel Drums etc.

Loading: Any loading port in China.

20ft or 40ft containers or in Bulk etc.
