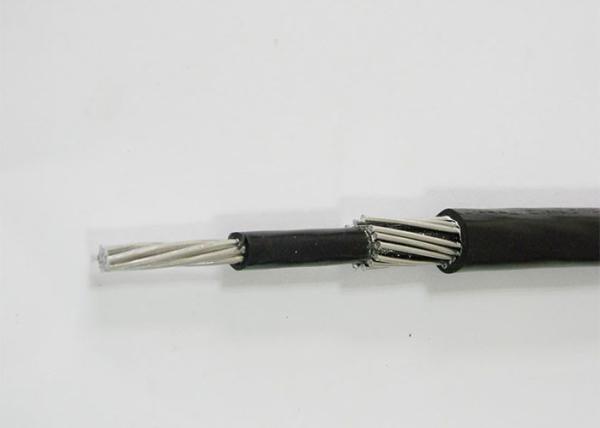

Concentric Conductor Airdac Sne Cable XLPE / PVC / HDPE / LLDPE Insualted
Concentric Conductor Airdac Sne Cable XLPE / PVC / HDPE / LLDPE Insualted
Specifications
Brand Name :
yifang
Model Number :
sne cable
Certification :
CE CCC ISO
Place of Origin :
China
MOQ :
1000 meters
Supply Ability :
6000km per year
Delivery Time :
20 days
Packaging Details :
wooden drum steel-wooden drum
name :
Airdac Sne Cable
color :
black
type :
concentric conductor
Application :
construction
Sheath :
PVC/XLPE
Description

Concentric Conductor Airdac Sne Cable XLPE/PE/PVC/HDPE/LLDPE Insualted

1. Applications

Primarily uesd for overhead service applications such as street lighting, outdoor lihgting,and temporary service for construction.


2. Material

Concntric cable main contain Phase conductor,Neutral Messenger...

Conductor: 1350 Aluminum,6201,8000 series Aluminum-Alloy,Copper Wire

Insualted: XLPE/PE/PVC/HDPE/LLDPE...

Sheath:PVC/XLPE.......

Phase: All Aluminum Conductor/All Aluminum Alloy Conductor/Copper Wire(XLPE/PE/PVC Insulated)

Neutral:All Aluminum Conducotr/All Aluminum Alloy Conductor/Copper conducotr (XLPE/PE/PVC Insulated)

3. Standard

Kenya Standard (KS 04-1022)

With the KS 04-1022 Standard, The phase conductor/neutral conducotr shall be Aluminum Wire.

The Insulation of phasr conducotr shall be Red PVC Compound,

The Oversheath shall be an extruded layer of black PVC.

All of the characteristics of cables shall comply with table.

Phase Conductor Concentric Neutral Conductor

Minimun lay length

mm

Oversheath Thickness

mm

Approx. overall diameter

mm

 Maximun conductor DC resistance per 1km of cable at 20℃

Norminal

area

mm2

No./dia.

mm

Insulation

Thickness

mm

No./dia.

mm

Phase

ohms

Neutral

ohms
10 7/1.35 1.55 23/1.13 146.5 1.4 12.21 3.08 1.335
16 7/1.70 1.55 26/1.13 155 1.4 13.34 1.91 1.808
25 7/2.14 1.60 29/1.13 165 1.5 14.88 1.20 1.0586
35 19/1.53 1.65 27/1.35 178 1.6 16.75 0.868 0.7966
