Epr Insulation Neoprene Rubber Sheathed Cable 14awg To 8awg 600v Pump Use
Epr Insulation Neoprene Rubber Sheathed Cable 14awg To 8awg 600v Pump Use
Specifications
Brand Name :
Yifang
Model Number :
POWER & DRILL CORD
Certification :
ISO
Place of Origin :
China
MOQ :
1000 METER
Price :
USD 5~10 PER METER
Supply Ability :
10000METER PER WEEK
Packaging Details :
Steel Wooden drum
Standard :
ICEA S-75-381
Application :
Pump undergroudn mine
Voltage :
600V
Character :
Sunlight resistant jacket
Flame test :
Yes
Insulation :
EPR
Sheath :
Neoprene
Description

600V PUMP USE EPR INSULATION Neoprene SHEATH RUBBR POWER & DRILL CORD 14awg to 8awg

APPLICATIONS

Suitable for use as follows:
• For use in stationary heavy-duty pumps or long wall lighting applications and designed
for long service life in wet or dry locations in underground mines.


CONSTRUCTION


• Copper Conductors: Flexible bunch stranded, uncoated annealed copper per
ASTM B3/B174 and ICEA S-75-381. A separator tape is applied over the conductor.
• Separator: A separator tape is applied between the conductor and insulation to
facilitate stripping.
• Insulation: 90°C rated heat and moisture resistant EPR insulation per
ICEA S-75-381 part 3 and UL requirements.
• Color Code: 3-conductor: Black, White, Green
4-conductor: Black, White, Red, Green
5-conductor: Black, White, Red, Green, Orange
6-conductor: Black, White, Red, Green, Orange, Blue
• Cabling: The conductors are cabled together with treated jute fillers as needed.
• Jacket: Dual-layer, heavy-duty, heat and abrasion resistant black neoprene per ICEA
S-75-381. Reinforced yarn shall be applied as an open braid between the two layers.


STANDARDS AND REFERENCES


--China MA

--ASTM B3/B174 and ICEA S-75-381


BENEFITS
• Sunlight resistant jacket
• Heavy-duty, crush and abrasion resistant
• Suitable for continuous submersion in shallow water

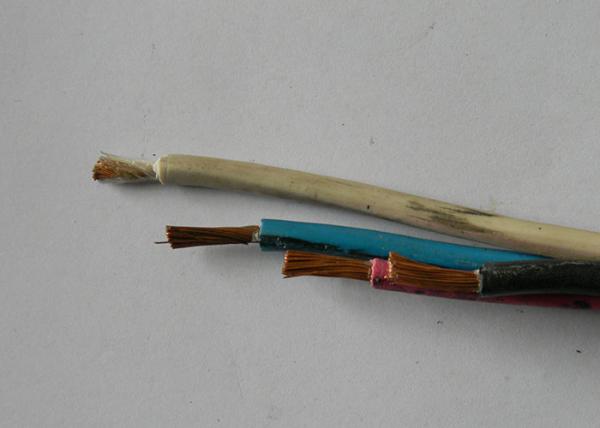

DRAWING

Epr Insulation Neoprene Rubber Sheathed Cable 14awg To 8awg 600v Pump Use

MEASUREMENTS

SIZE /NUMBER OF CONDS STRANDS INS.WALL NOM. JACKET WALL DIAMETER AMPS
14/3 41 45 140 17.02 294
14/4 41 45 145 18.03 346
14/5 41 45 145 19.81 418
12/3 65 45 140 18.29 441
12/5 65 45 155 20.57 441
12/6 65 45 155 22.61 508
10/3 104 45 140 20.32 360
10/5 104 45 155 22.86 548
8/5 168 60 155 27.69 689
