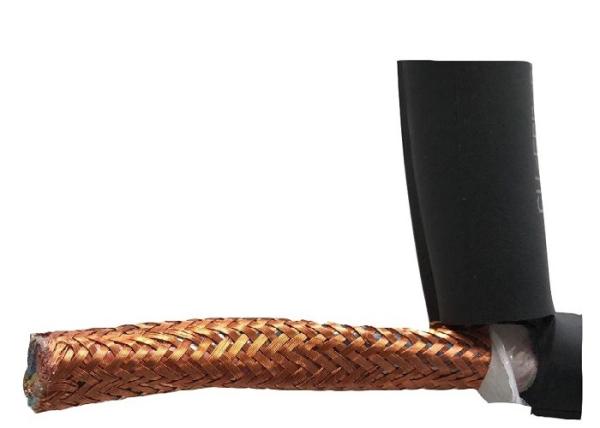

0.6/1kV Rubber Covered Cable Copper Wire Braiding CPE Sheathed 2Cx6mm2+6mm2 Earth
0.6/1kV Rubber Covered Cable Copper Wire Braiding CPE Sheathed 2Cx6mm2+6mm2 Earth
0.6/1kV Rubber Covered Cable Copper Wire Braiding CPE Sheathed 2Cx6mm2+6mm2 Earth
0.6/1kV Rubber Covered Cable Copper Wire Braiding CPE Sheathed 2Cx6mm2+6mm2 Earth
Specifications
Brand Name :
Yifang
Model Number :
YCW3*6
Place of Origin :
China
MOQ :
1000m
Price :
USD0.9-1.5/m
Payment Terms :
T/T
Supply Ability :
300km/month
Delivery Time :
15 work days
Packaging Details :
wooden-steel drum
conductor :
copper
insulation :
EPR
screen :
copper wire braiding
sheath :
CPE
Description

Rubber insulated cable 0.6/1kV Copper 2Cx6mm2+6mm2 Earth

6mm2 2C+E Power Cable (CU/EPR/CWB/CPE 0.6/1kV 3Cx6).
Red (active), light blue (neutral) and green / yellow (earth)

Rubber copper wire Working Conditions

1.Rated voltage :0.6/1kV

2.The long-term working temperature of conductor should be no longer than 90°C

3.W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor

usage and the occasion with greasy dirt.


Characteristics

1. Rated power-frequency voltage U0/U: 0.6/1kV

2. Maximum permitted operating temperature of conductor is 90°C.

3. Cables can be used at places contaminated by mineral oil and fuel oil.

No. of Cores x Normal Cross Sectional Area of Conductor(mm2) Normal Diameter of Strand(mm) Normal Thickness of Insulation(mm) Normal Thickness of Jacket(mm) Over Diameter of Cable(mm) Max Conductor Resistance at 20°C
ohm/km
3x6 0.3 1 2.1 15.5 3.3

Voltage:0.6/1kV

Conductor:copper cl5

Insulation:Rubber EPR

Screen:copper wire braiding

Sheath:CPE

size:2*6mm2+1*6mm2

Phase color:Blue,Red

Earth:G/Y

Packing wooden steel drum:2000m/drum
