Stranded Bare Copper Rubber Insulated Cable , Rubber Sheathed Flexible Cable
Stranded Bare Copper Rubber Insulated Cable , Rubber Sheathed Flexible Cable
Stranded Bare Copper Rubber Insulated Cable , Rubber Sheathed Flexible Cable
Stranded Bare Copper Rubber Insulated Cable , Rubber Sheathed Flexible Cable
Specifications
Brand Name :
Yifang
Model Number :
5x0.75mm2
Place of Origin :
China
MOQ :
1000m
Price :
USD0.3-0.6/m
Payment Terms :
T/T
Supply Ability :
300km/month
Delivery Time :
15 work days
Packaging Details :
wooden-steel drum
conductor :
copper
insulation :
EPR
sheath :
CPE
color :
black
Description

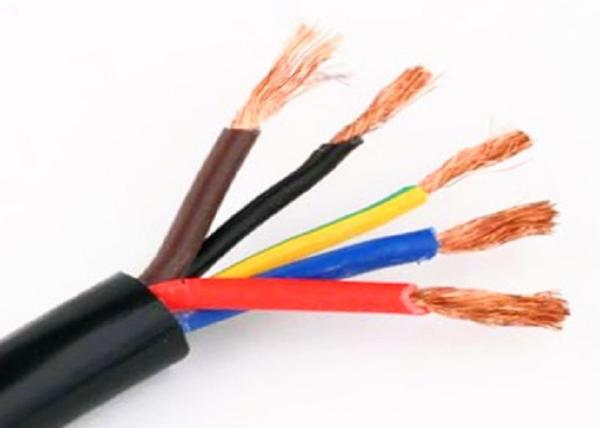

Rubber insulated cable 0.6/1kV Copper 5x0.75mm2

Applications

Suitable for use in conduit and for fixed, protected installation of Wiring Burglar Alarm, Public Address Systems,Intercoms,

Telephone Stations, Speakers, Instrumentation, Control and other Low Voltage Circuits that are Power Limited and anti-interference needed

Construction

Stranded Bare Copper Conductor and PVC Insulated PVC Sheath Electric Power Cable

Technical Data

Temperature Range: -20-70C

Max Working Voltage: 300/500V, 450/750V

Standards

BS4737: Insulated cables, PVC insulated for power systems

NEC 725/800: CM / CL2,

Specifications

Model No. Conductor Insualtion Jacket
Cores × Nom. Area Max. Resistance at 20°C Thickness Min. Resistance at 70°C Thickness Min. Dia. Max.
mm² MΩ/km mm MΩ/km mm mm mm
RVV2×0.75 2×0.75 26 0.6 0.011 0.8 6 7.6
RVV2×1.0 2×1.0 19.5 0.6 0.01 0.8 6.4 8
RVV2×1.5 2×1.5 13.3 0.7 0.01 0.8 7.4 9
RVV2×2.5 2×2.5 7.98 0.8 0.009 1 8.9 11
RVV3×0.75 3×0.75 26 0.6 0.011 0.8 6.4 8
RVV3×1.0 3×1.0 19.5 0.6 0.01 0.8 6.8 8.4
RVV3×1.5 3×1.5 13.3 0.7 0.01 0.9 8 9.8
RVV3×2.5 3×2.5 7.98 0.8 0.009 1 9.6 12
RVV4×0.75 4×0.75 26 0.6 0.011 0.8 6.8 8.6
RVV4×1.0 4×1.0 19.5 0.6 0.01 0.9 7.6 9.4
RVV4×1.5 4×1.5 13.3 0.7 0.01 1 9 11
RVV4×2.5 4×2.5 7.98 0.8 0.009 1.1 10.5 13
RVV5×0.75 5×0.75 26 0.6 0.011 0.9 7.4 9.6
RVV5×1.0 5×1.0 19.5 0.6 0.01 0.9 8.3 10
RVV5×1.5 5×1.5 13.3 0.7 0.01 1.1 10 12
RVV5×2.5 5×2.5 7.98 0.8 0.009 1.2 11.5 14
