Extra Flexible 3 Cores Rubber Insulated Cable Vfd Power Epr Insulated 2kv 14awg To 350mcm
Extra Flexible 3 Cores Rubber Insulated Cable Vfd Power Epr Insulated 2kv 14awg To 350mcm
Specifications
Brand Name :
Yifang Cable
Model Number :
VFD Rubber cable
Certification :
ISO, CE, China MA
Place of Origin :
Chinia
MOQ :
1000 meter
Price :
USD 10~100 PER METER
Packaging Details :
Non-returnable Steel drum or Wooden-steel drum
Character :
Flame Retardant
Consturction :
Tinned Copper /EPR /CPE
Sheild :
Tinned copper braiding
Application :
variable frequency AC motor drive (VFD)
Conductor Grade :
Extra flexible
Mark :
Embossed or Imprint
Description

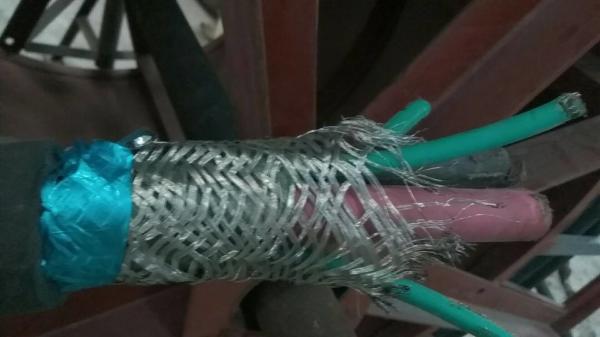

EXTRA FLEXIBLE VFD POWER 3 CORES RUBBER CABLE EPR INSULATED 2KV 14AWG TO 350MCM



APPLICATION
A flexible, braid and foil shielded, 2kV power cable specifically engineered for use in variable
frequency AC motor drive (VFD) applications.


FEATURES
1. Specially engineered cable design produces a longer cable life in VFD applications. Overall braid plus foil shield is engineered with 100% coverage and a surface transfer impedance <50 milliohms at 10MHz tocontain EMI.
2. Symmetrical insulated ground conductors reduce induced voltage imbalances and carry
common mode noise back to the drive.
3. High strand count conductors and braid shield design is much more flexible, easier
to install and more resistant to vibration than Type MC cable.
4.Gexol’s lower dielectric constant (standard XLPEs, EPRs and other Type P insulation
materials have higher dielectric constants) reduces reflected wave peak voltage magnitudes. This allows for longer output cable distances and minimizes the effect of high frequency noise induced into the
plant ground system.
5. 2kV insulation thickness is used to resist the potential 2-3x reflected voltages experienced
in 600V VFD applications.
6. Passes the same stringent crush and impact testing required by UL 2225 for Type MC-HL
7.Gas & vapor tight – impervious to water and air
8.Smaller bend radius (up to 40% smaller) than Type MC
9.Reduced tray fill (up to 35% less) compared to Type MC
10.Considerably more flexible than Type MC
11. Reduced installation time and cost compared to Type MC
12.Glands for this product cost up to 50% LESS than those for Type MC

VFD 2kV Technical Parameter 3x300MCM+3x6 AWG

ItemDescriptionUnitReference
1Manufacture--Yifang Cable
2VoltageKV2
3Application Variable Frequency Drive
4Power conductor
4.1Conductor Materials--Soft Tinned Coated Copper
4.2Strands No. and DiameterNos/mm744 / 0.51
4.3Aprox. Diameter of Conductormm16.1
4.4Conductor SizeAWG350 MCM
4.5DC Resistance at 20℃Ω/km0.12029
4.6Core numberNo.3
5Conductor Wrapping
5.1Materials--Polyester tape
6Insulation
6.1Insulation Materials--EPR
6.2Nominal Insulation Thickness mm3.2 mm
6.3Core Identification Black,yellow, red
7Ground conductor
7.1Conductor Materials Soft Coated Copper
7.2Min. Strands wire No.sNos/mm165 / 0.32
7.3Conductor SizeAWG6
7.4DC Resistance at 20℃Ω/km1.37339
7.5Core number 3 core
7.6Insulation Material Green EPR
7.7Insulation Thicknessmm1.0
8Shielding
8.1Material Overall tinned copper braid plus aluminum/polyester 100% coverage
9Jacket
9.1Jacket Material--Black CPE
9.2Nominal Jacket Thickness mm3.7 mm
10Approx. Cable Diameter mm59 ± 2 mm
11Approx. weight of cableKg/km7836




Extra Flexible 3 Cores Rubber Insulated Cable Vfd Power Epr Insulated 2kv 14awg To 350mcm
