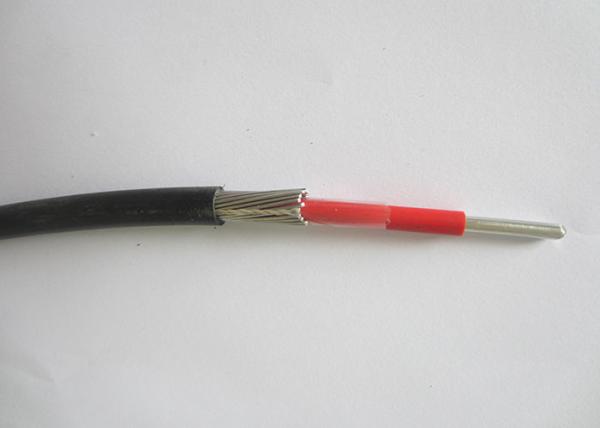

XLPE Insulation HDPE Sheath Concentric Cable 1000V Aluminum / Copper Conductor
XLPE Insulation HDPE Sheath Concentric Cable 1000V Aluminum / Copper Conductor
XLPE Insulation HDPE Sheath Concentric Cable 1000V Aluminum / Copper Conductor
XLPE Insulation HDPE Sheath Concentric Cable 1000V Aluminum / Copper Conductor
Specifications
Brand Name :
Yifang
Model Number :
Concentric
Certification :
ISO, CE, SGS, BV
Place of Origin :
China
MOQ :
1000m
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
According to order qty.
Delivery Time :
According to order qty.
Packaging Details :
Wooden Drums, Steel-wooden Drums, Steel Drums etc.
Voltage :
0.6/1KV
Phase Conductor :
Copper or Aluminum
Insulation :
XLPE
Neutral Conductor :
Copper or Aluminum
Jacket :
HDPE
Cable Core :
Single or multicores with communication core
Description

1000V Aluminum Conductor XLPE Insulation HDPE Sheath Concentric Cable

Application:

The cables are for the service-entrance.

Applicable standards:

As per Customer’s technical specifications

Production Scope:

Rated Voltage: Up to 600V or upon customer’s request

Core Number: 1, 2, 3 cores with neutral core

Coverage: 100% and non-100% coverage

Nominal cross section: 6AWG to 4/0AWG

Construction:

For Main Core:

Conductor: Copper or Aluminum

Insulation: XLPE/PE/ PVC

For Neutral conductor: Copper or aluminium, Wrapped on insulation or inner sheath

For Communication core (optional):

Conductor: Copper

Insulation: PE

External coverage: XLPE, PVC, PE (Weather resistant)

Cable Core 1 core
Conductor Copper or Aluminum
Insulation XLPE
Neutral Conductor Copper or Aluminum
Communication Core Conductor Copper
Communication Core Insulation XLPE
Jacket PVC or PE
Voltage 600/1000V

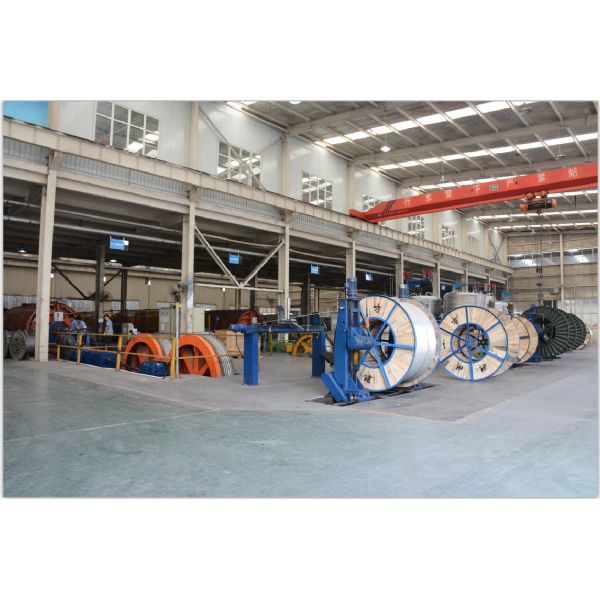

Factory Pictures:

XLPE Insulation HDPE Sheath Concentric Cable 1000V Aluminum / Copper ConductorXLPE Insulation HDPE Sheath Concentric Cable 1000V Aluminum / Copper Conductor

XLPE Insulation HDPE Sheath Concentric Cable 1000V Aluminum / Copper Conductor

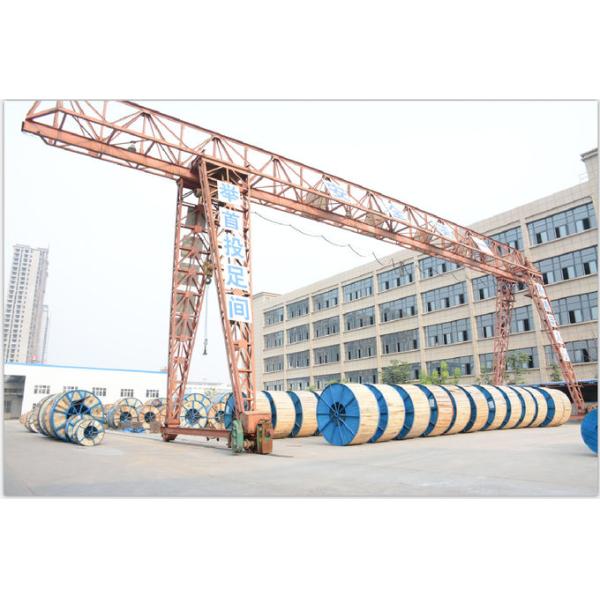

Loading Containers:

XLPE Insulation HDPE Sheath Concentric Cable 1000V Aluminum / Copper ConductorXLPE Insulation HDPE Sheath Concentric Cable 1000V Aluminum / Copper ConductorXLPE Insulation HDPE Sheath Concentric Cable 1000V Aluminum / Copper Conductor

We can design and produce according to client's requirement. Welcome to contact us for any more information!
