Specifications
Brand Name :
Yifang
Model Number :
AL/XLPE/AWA/PVC
Certification :
ISO CCC CE KEMA UL
Place of Origin :
China
MOQ :
10000 meters
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200kms/month
Delivery Time :
About 35 days
Packaging Details :
Sea worthy drums
Color :
Black
Core :
Single core
Amour material :
Aluminum wire
Phase core :
Solid aluminum wire
Standard :
IEC 60502
Insulation color :
Red
Description

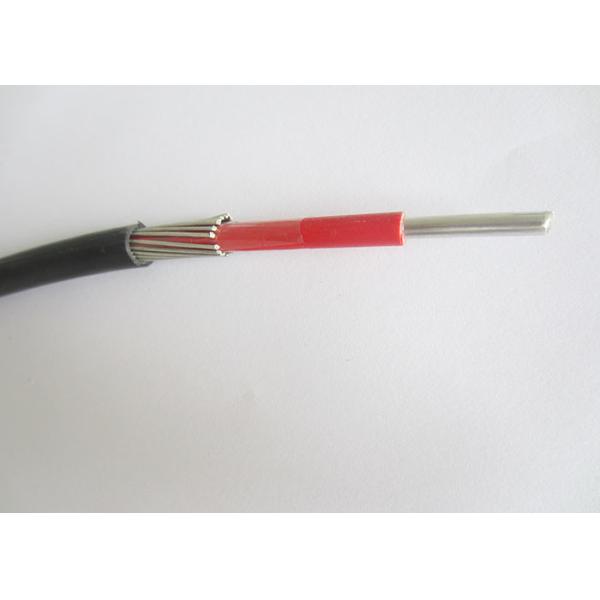

Solid 4.35mm Aluminium Cable 16 sqmm with Aluminum Wire Armour With PVC XLPE Insulation

1 Applications

The concentric cable is used as electric service entrance from the power distribution network until the meter panel (especially where it is required

to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as

it is specified in the National Electrical Code.

This type of conductor can be used in dry and wet places, directly buried or outdoors; its maximum temperature of operation is 70 ºC and its

voltage of service for all the applications is 600 V.

Standards

IEC BS and so on

Voltage:

600/1000V

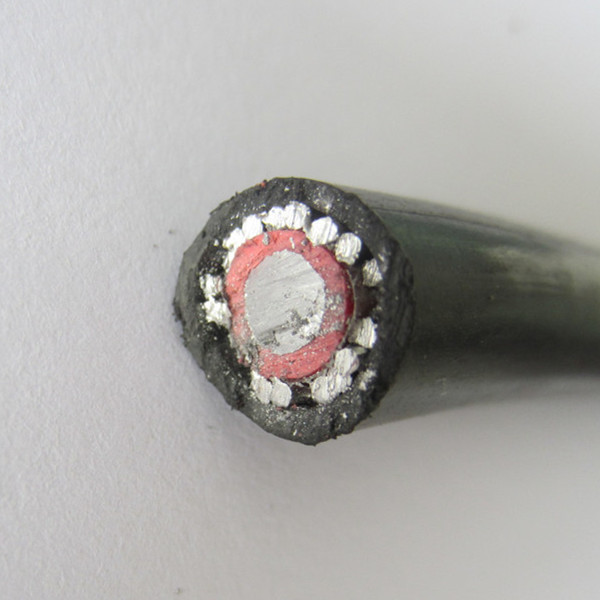

Concentric Cable Construction

Conductor

Aluminum conductors, IEC 60228, solid or stranded versions, conductor types

10-16 mm² round, solid conductors.

10-25 mm², stranded conductor.

35-240 mm², sector shaped conductor, stranded

Insulation

PVC(Polyvinyl Chloride ) or XLPE

Inner Sheath

PVC(Polyvinyl Chloride)

Concentric Conductor

Aluminum wires

Sheath

PVC(Polyvinyl Chloride)

Minimum Bending Radius

Single Core: 15* overall diameter

Multi Core: 12* overall diameter

ITEM SPECIFICATION (PARTICULARS UNIT Data
1 Standard IEC 60502/228/1089/ES 109-7
2 Voltage kV 0.6/1
3 Phase Conductor material

Hard drawn Aluminium conductor
4 Number of core Nos 1
5 Number of strands Nos 1(Solidal)
6 Conductor Size mm2 16
7 Diameter of wire mm 4.35
8 D.C Resistant at 20°C Ω/KM 1.91
10 Insulation Resistance at 20°C (Min) MΩ/KM 5
11 Current Carrying Capacity in Air at 25°C A 60
12 Insulation Material PVC or XLPE
13 Insulation Thickness mm 1.0
14 Sheath Material Black PVC
15 Sheath Thickness mm 1.2
16 Earth wire
16.1 Material Aluiminum
16.2 Number & Dia of wire Nos/mm 20/1.0
16.3 Overall Diameter of cable mm 11.95
17 Core Identification Red

0.6/1kV 1+1-core Cu(Al)/PVC/PVC Concentric Conductor Cable
Nominal cross sectional area of conductor(mm2)
1×10+1×10
1×16+1×16
1×25+1×25
2×10+1×10
2×16+1×16
2×25+1×25

Solid 4.35mm Aluminium Cable 16 Sqmm With Aluminum Wire Armour PVC XLPE InsulationSolid 4.35mm Aluminium Cable 16 Sqmm With Aluminum Wire Armour PVC XLPE Insulation

Solid 4.35mm Aluminium Cable 16 Sqmm With Aluminum Wire Armour PVC XLPE Insulation
