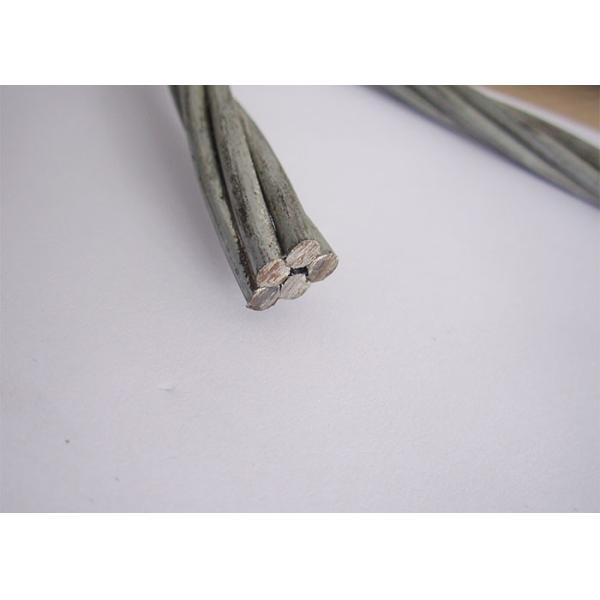

Overhead Power Transmission Galvanized Steel Wire / Earth Ground Wire BS 183 Standard
Overhead Power Transmission Galvanized Steel Wire / Earth Ground Wire BS 183 Standard
Overhead Power Transmission Galvanized Steel Wire / Earth Ground Wire BS 183 Standard
Overhead Power Transmission Galvanized Steel Wire / Earth Ground Wire BS 183 Standard
Overhead Power Transmission Galvanized Steel Wire / Earth Ground Wire BS 183 Standard
Overhead Power Transmission Galvanized Steel Wire / Earth Ground Wire BS 183 Standard
Specifications
Brand Name :
Yifang
Model Number :
Steel earth wire
Certification :
ISO CCC CE KEMA UL
Place of Origin :
China
MOQ :
5000 meters
Price :
Ngotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
400 KMS/month
Delivery Time :
About 20 days
Packaging Details :
Standard sea worthy drums
Standard :
BS 183
Application :
Overhead power transmission
Type :
7/4.0MM
Characteristic :
Bare
Description

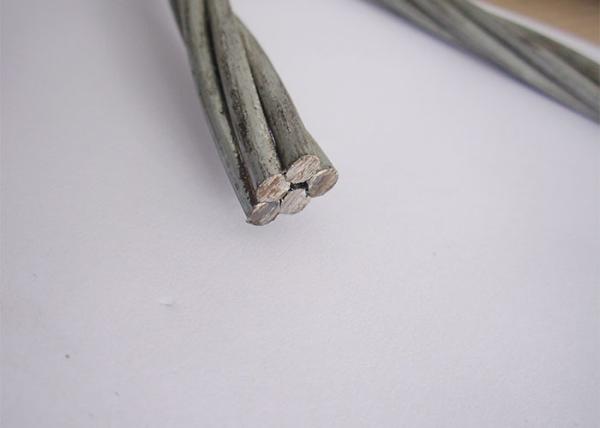

Stay Wire BS 183 7/4.0mm 7/2.64mm 3/2.64mm Galvanized Steel Wire Guy Wire Earth Ground Wire

Galvanized Steel wire strand produced as per BS 183 Class A ,used for guy wire with heavy corrosion zinc-coating.

1.Name:Zinc-coated Steel Wire(Galvanized Steel Wire Strand)

2.Number of wire: 7 wires

3.Zinc- Coated of steel wire strand Grade Class A and Class B

4.Standard : BS183

5. Application : Galvanized steel wire strand /guy wire /stay wire is used for ACSR Core , pulling pole ,overhead conductor, Messenger wire ,Static wire,Guy wire,Guide rail cable

6 .Specification : galvanized steel wire strand /steel strand wire /guy wire /stay wire
Including but not limited to:
•ASTM A-363 Zinc-Coated (Galvanized) Steel Overhead Ground Wire Strand
•ASTM A-475 Zinc-Coated Steel Wire Strand
•ASTM A-925 -5 % Aluminum-Mischmetal Alloy-Coated Steel Overhead Ground Wire Strand
•ASTM A-855 Zinc-5 % Aluminum-Mischmetal Alloy-Coated Steel Wire Strand
•ASTM A-640 Zinc-Coated Steel Strand for Messenger Support of Figure 8 Cable.

Stranding wire no./Dia. Approx. Strand Dia. Weight Min. Breaking load of strand
Grade 1000 Grade1150 Grade1300
mm kg/km KN KN KN
3/1.80 3.9 60 7.63 8.78 9.92
3/2.65 5.7 129 16.55 19.03 21.51
3/3.25 7.0 194 24.89 28.62 32.35
3/4.00 8.6 294 37.70 43.35 49.01
4/1.80 4.3 79 10.18 11.71 13.23
4/2.65 6.4 172 22.06 25.37 28.68
4/3.25 7.8 259 33.18 38.16 43.14
4/4.00 9.7 392 50.27 57.81 65.35
5/1.50 4.1 69 8.84 10.16 11.49
5/1.80 4.9 99 12.72 14.63 16.54
5/2.65 7.2 215 27.58 31.71 35.85
5/3.25 8.8 324 41.48 47.70 53.92
5/4.00 10.8 490 62.83 72.26 81.68
7/1.60 4.8 110 14.07 16.19 18.30
7/1.80 5.4 139 17.81 20.48 23.16
7/2.00 6.0 172 21.99 25.29 28.59
7/2.36 7.1 239 30.62 35.21 39.81
7/2.65 8.0 301 38.61 44.40 50.19
7/3.00 9.0 386 49.48 56.90 64.32
7/3.15 9.5 426 54.55 62.73 70.92
7/3.25 9.8 453 58.07 66.78 75.49
7/3.65 11.0 571 73.24 84.23 95.22
7/4.00 12.0 686 87.96 101.16 114.35
7/4.25 12.8 775 99.30 114.20 129.10
7/4.75 14.3 968 124.04 142.65 161.26
19/1.60 8.0 298 38.20 43.93 49.66
19/2.00 10.0 466 59.69 68.64 77.60
19/2.50 12.5 727 93.27 107.26 121.25
19/3.00 15.0 1048 134.30 154.45 174.59
19/3.55 17.8 1467 188.06 216.27 244.48
19/4.00 20.0 1862 238.76 274.58 310.39


Packaging & Shipping:

We have different package choice for all sizes

Coil Type, Wooden Spool Type, Iron Spool Type

Please let me know your application, in order to provide suggestions on package type
