Concentric Stranded Bare Conductor Wire Overhead Power Transmission Line
Concentric Stranded Bare Conductor Wire Overhead Power Transmission Line
Concentric Stranded Bare Conductor Wire Overhead Power Transmission Line
Concentric Stranded Bare Conductor Wire Overhead Power Transmission Line
Specifications
Brand Name :
Yifang
Model Number :
ACSR, AACSR, TACSR
Certification :
ISO, CE, SGS, BV
Place of Origin :
China
MOQ :
5000m
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
20,000TONS Per Year
Delivery Time :
4-8 Weeks
Packaging Details :
Wooden Drums, Steel-wooden Drums, Steel Drums etc.
Application :
Overhead Power Transmission Line
Conductor :
Aluminum, Aluminum Alloy, Thermal Aluminum Alloy with Steel
Standard :
ASTM, BS, CSA, DIN, IEC etc.
Voltage :
Low, Medium and High voltage
Description

ACSR AACSR TACSR Power Transmission Concentric Stranded Bare Conductor

Application:

Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR/AACSR/TACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without reducing ampacity.


Applicable Standards:
ASTM B-232, BS EN-50182, CSA C 61089, AS/NZS 3607, DIN 48204, IEC 61089, GB/T 1179, JIS 3110.CSA C49,ASTM B711

Production Scope:
Max. cross-section 3500MCM/1750mm2, Max. Stranded Number 127Nos.

Construction:
For ACSR: Type Aluminium 1350-H19 wires,concentrically stranded around galvanize coated steel core wire
For AACSR: Type Aluminium alloy 6201-T81 wires, concentrically stranded around galvanize coated steel core wire
For TACSR: Thermal resistant aluminium alloy wires, concentrically stranded around galvanize coated steel core wire

TYPE & DESIGNATION OF BARE CONDUCTOR

Type Description
AAC All Aluminum Conductor
AAAC All Aluminum Alloy Conductor
ACSR Aluminum Conductor Steel Reinforced
AACSR Aluminum Alloy Conductor Steel Reinforced
ACAR Aluminum Conductor Aluminum Alloy Reinforced
TACSR Thermal Aluminum Alloy Conductor Steel Reinforced
GSW Galvanized Steel Wire

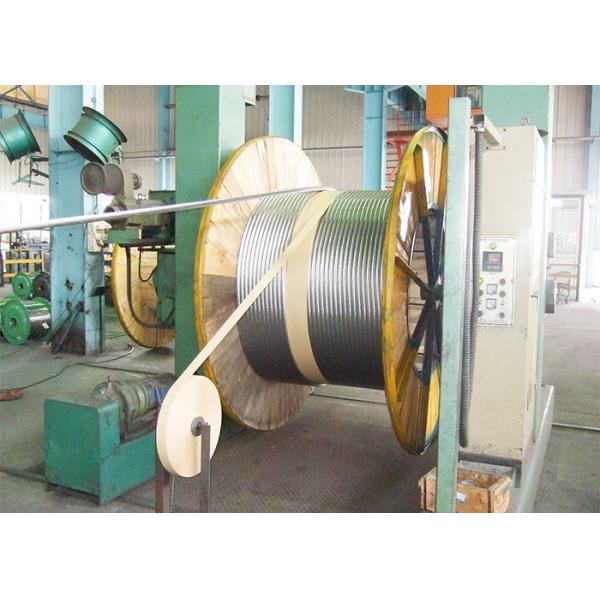

Manufacturing:

Concentric Stranded Bare Conductor Wire Overhead Power Transmission Line

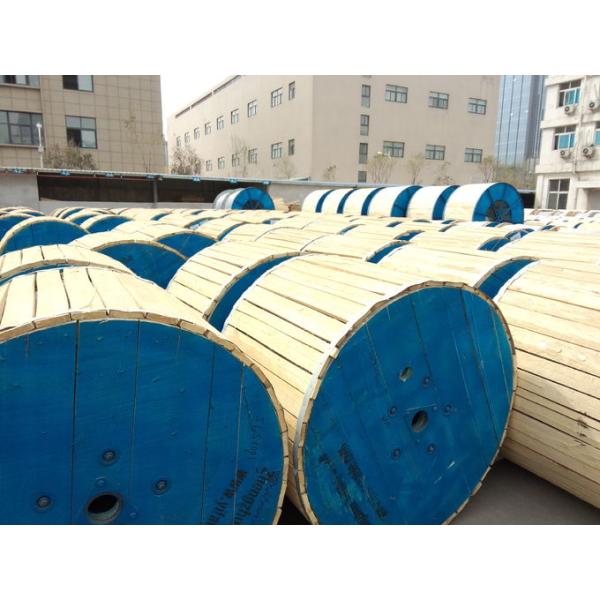

Package:

Concentric Stranded Bare Conductor Wire Overhead Power Transmission Line

Loading Containers:

Concentric Stranded Bare Conductor Wire Overhead Power Transmission Line

Concentric Stranded Bare Conductor Wire Overhead Power Transmission LineConcentric Stranded Bare Conductor Wire Overhead Power Transmission LineConcentric Stranded Bare Conductor Wire Overhead Power Transmission Line

We can design and produce according to client’s requirement. Welcome to contact us for any more information!
