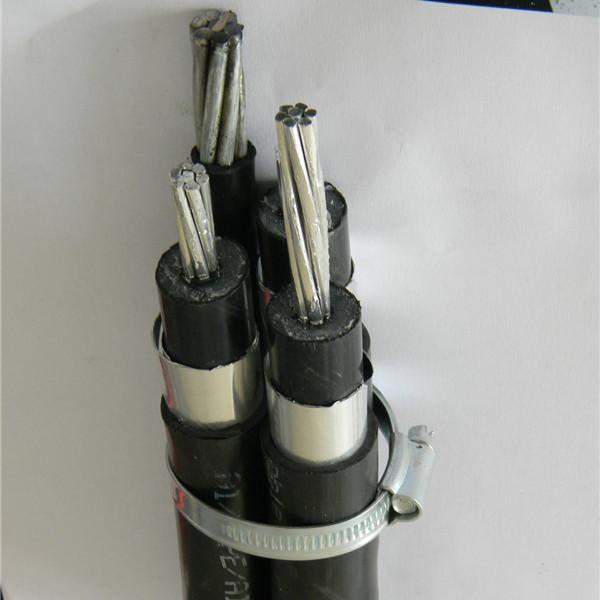

Alu Conductor NFC 33226 Direct Burial Cable PR Insulation 3x1x240mm2 18 / 30kV
Alu Conductor NFC 33226 Direct Burial Cable PR Insulation 3x1x240mm2 18 / 30kV
Alu Conductor NFC 33226 Direct Burial Cable PR Insulation 3x1x240mm2 18 / 30kV
Alu Conductor NFC 33226 Direct Burial Cable PR Insulation 3x1x240mm2 18 / 30kV
Alu Conductor NFC 33226 Direct Burial Cable PR Insulation 3x1x240mm2 18 / 30kV
Alu Conductor NFC 33226 Direct Burial Cable PR Insulation 3x1x240mm2 18 / 30kV
Specifications
Brand Name :
YIFANG
Model Number :
Hta Cis Cable
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1000M
Price :
$1~20 PER METER
Payment Terms :
L/C, T/T
Supply Ability :
100000M PER WEEK
Delivery Time :
15 DAYS
Packaging Details :
STEEL WOODEN DRUM
Standard :
NF C 33 226
Voltage :
12/20 (24)kV 18/30 (36) Kv
Conductor :
Alu
Insulation :
PR
Description


Hta Cis Cable as Per NFC 33226 Direct Burial Cable

  • Model NO.: Hta Cis Cable
  • Voltage: Low and Medium Voltage Cable
  • Insulation Material: XLPE
  • Material Shape: Round Wire
  • Certification: ISO, CCC, CE, UL, VDE, Kema
  • Brand: Yifang
  • Sheath Colour: Black or According to Requirement
  • Standard: NFC 33226
  • Metallic Screen: Longitude Aluminum Plastic Tape
  • Transport Package: Drum
  • Origin: Zhengzhou, Henan, China
  • Application: Construction, Overhead, Underground, Power Station
  • Current: DC & AC
  • Sheath Material: HDPE
  • Wire Core Material: Aluminum
  • Model: Power Cable
  • Core: 1core ,3core
  • Rated Voltage: 12kv,24kv,33kv,36kv

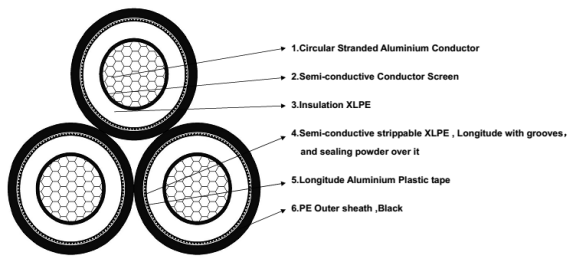

  • Insulation Screen: Strippable Semi-Conducting Compound ,Longitude Wit
  • Trademark: Yifang
  • Specification: 50mm2-630mm2
  • HS Code: 8544601200
Fiches Techniques Unités Données Spécifiques Données de l'Offre
Fabricant indiquer Yifang Electric Group Inc.
Type Tripolaire torsadé CIS Tripolaire torsadé CIS
Norme

CEI 502

NF C33-223

CEI 502

NF C33-223
Isolation PR PR

Ecran métallique

Ruban d’aluminium contre collé à la gaine

extérieure

Ruban d’aluminium contre collé à la gaine

extérieure
Semi-conducteur sur âme Mélange extrudé Mélange extrudé

Semi-conducteur sur gaine

Mélange extrudé pelable et cannelé. Les cannelures sont remplis

de poudre d’étanchéité

Mélange extrudé pelable et cannelé. Les cannelures sont remplis

de poudre d’étanchéité
Tension spécifiée kV 36 36
Section mm2 3x1x240 mm² Alu 3x1x240 mm² Alu
Intensité régime permanent A à l’air libre : indiquer 450
Enterré : indiquer 425
Résistance linéique maxi à 20C ohm/km 0.125 0.125
Capacité uF/km 0,29 0.29

Diamètre approximative de

la torsade

 mm Indiquer 94.6
Diamètre sur isolant mm Indiquer 36.0

Diamètre sur gaine du

conducteur

 mm 43,5 43.5
Masse kg/km 5350 5350
Longueur sur le touret m 285
Poids maximum d’une bobine kg 1525/1725 (Poids net/brut)

Alu Conductor NFC 33226 Direct Burial Cable PR Insulation 3x1x240mm2 18 / 30kV

Alu Conductor NFC 33226 Direct Burial Cable PR Insulation 3x1x240mm2 18 / 30kV

Alu Conductor NFC 33226 Direct Burial Cable PR Insulation 3x1x240mm2 18 / 30kV
