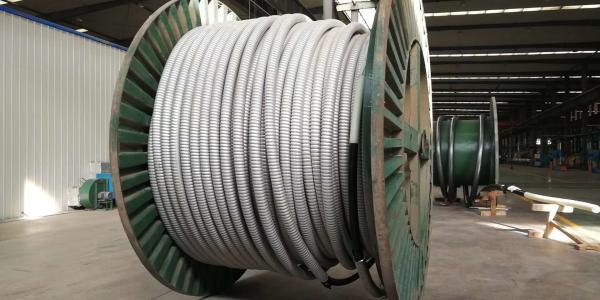

XLPE Insulated Armoured Power Cable EHV High Voltage 400mm2 600m2 800mm2
XLPE Insulated Armoured Power Cable EHV High Voltage 400mm2 600m2 800mm2
XLPE Insulated Armoured Power Cable EHV High Voltage 400mm2 600m2 800mm2
XLPE Insulated Armoured Power Cable EHV High Voltage 400mm2 600m2 800mm2
XLPE Insulated Armoured Power Cable EHV High Voltage 400mm2 600m2 800mm2
XLPE Insulated Armoured Power Cable EHV High Voltage 400mm2 600m2 800mm2
Specifications
Brand Name :
YIFANG
Model Number :
EHV
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1000m
Price :
$50~150 per meter
Payment Terms :
L/C, T/T
Supply Ability :
10000m per week
Packaging Details :

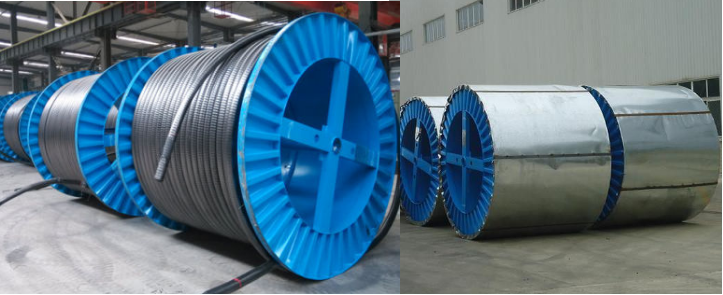

Steel drum
Standard :
IEC 60840
Voltage :
127/220kV
Model :
Yjlw03, Yjlw02
Condutor :

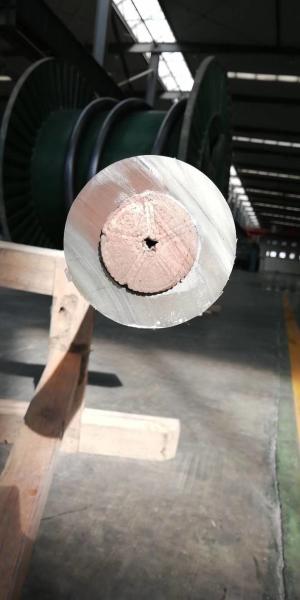

Seperated Conductor
Metallic Shaeth :
Corrugated Aluminium
Description

EHVHigh Voltage XLPE Insulated Armoured Power Cable

YJLW 02, YJLW03, EHV Power Cable, 48/66 kV~127/220 kV, Cu/XLPE/Corrugated AL/PVC (GB/T 11017/IEC 60840)
Standards

This product by GB11017 "rated voltage of 110 kV copper, Aluminum core XLPE power cable" and IEC60840 "rated voltage 30 kV to 150kV power cable insulation crowded pack test" standard.

Application scope
The product is suitable for use in power transmission and distribution lines with rated power
frequency voltage 48/66kV,64/110kV,76/132kV

Using characteristics
Rated power-frequency voltage U0/U: 48/66kV,64/110kV,76/132kV.
Max. permissible continuous operating temperature of conductor: 90ºC.
Max. short-circuit temperature of conductor shall not exceed 250ºC(5s maximum duration).
The ambient temperature under installation should not below 0ºC.
The bending radius should not less than 25 times of the cable diameter.


Application

For laying indoors, in tunnel, cable French, well or direct in ground, able to bear external mechanical forces and certain pulling force.
Section Insulation Thickness Metallic Sheath Thickness Sheath Thickness Overall Diameter Cable Weight Electrical Resistance
DC.20ºC
No.xmm2 mm mm mm mm kg/km Ω/km
48/66 kV
1x185 14.5 2.0 4.0 68.3 5250 0.0991
1x240 14.5 2.0 4.0 76.7 5740 0.0754
1x300 14.5 2.0 4.0 79.1 6440 0.0601
1x400 14.5 2.0 4.0 82.3 7480 0.0470
1x500 14.5 2.0 4.0 85.9 8750 0.0366
1x630 14.5 2.0 4.0 85.9 10360 0.0283
1x800 14.5 2.0 4.0 94.3 12260 0.0221
1x800 14.5 2.0 4.0 96.4 13790 0.0221
1x1000 14.5 2.0 4.5 102.8 15470 0.0176
1x1200 14.5 2.0 4.5 106.2 17580 0.0151
1x1400 14.5 2.0 5.0 110.4 20110 0.0129
1x1600 14.5 2.0 5.0 114.8 22510 0.0113
1x2000 14.5 2.0 5.0 121.8 27050 0.0009
64/110 kV
1x240 19.0 2.0 4.0 85.0 7750 0.0754
1x300 18.5 2.0 4.0 86.1 8360 0.0601
1x400 17.5 2.0 4.0 86.9 9120 0.0470
1x500 17.0 2.0 4.0 89.1 10260 0.0366
1x630 16.5 2.0 4.5 92.1 11750 0.0283
1x800 16.0 2.0 4.5 95.0 13520 0.0221
1x800 16.0 2.0 4.5 100.0 14320 0.0221
1x1000 16.0 2.3 4.5 105.4 16760 0.0176
1x1200 16.0 2.3 5.0 109.8 18900 0.0151
1x1400 16.0 2.3 5.0 114.0 21530 0.0129
1x1600 16.0 2.3 5.0 117.4 23930 0.0113
1x2000 16.0 2.3 5.0 124.4 27750 0.0009
127/220 kV
1x300 27.0 2.4 5.0 112.5 10930 0.0601
1x400 27.0 2.4 5.0 118.0 11750 0.0470
1x500 27.0 2.4 5.0 121.2 12880 0.0366
1x630 26.0 2.4 5.0 123.0 14320 0.0283
1x800 25.0 2.4 5.0 124.9 15720 0.0221
1x800 16.0 2.0 4.5 100.0 14320 0.0221
1x1000 24.0 2.6 5.0 129.4 20500 0.0176
1x1200 24.0 2.6 5.0 132.6 22810 0.0151
1x1400 24.0 2.6 5.0 136.8 25450 0.0129
1x1600 24.0 2.6 5.0 140.6 28050 0.0113
1x2000 24.0 2.8 5.0 147.5 32210 0.0009

XLPE Insulated Armoured Power Cable EHV High Voltage 400mm2 600m2 800mm2
