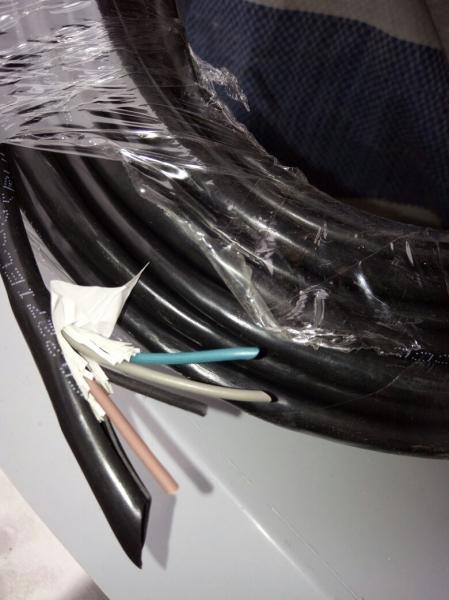

450 / 750V 6x2.5mm2 Multicore Control Cable Copper Conductor IEC 60502-1 Standard
450 / 750V 6x2.5mm2 Multicore Control Cable Copper Conductor IEC 60502-1 Standard
450 / 750V 6x2.5mm2 Multicore Control Cable Copper Conductor IEC 60502-1 Standard
450 / 750V 6x2.5mm2 Multicore Control Cable Copper Conductor IEC 60502-1 Standard
450 / 750V 6x2.5mm2 Multicore Control Cable Copper Conductor IEC 60502-1 Standard
450 / 750V 6x2.5mm2 Multicore Control Cable Copper Conductor IEC 60502-1 Standard
Specifications
Brand Name :
Yifang Cable
Model Number :
450/750V 6x2.5mm2 multicore control cable
Certification :
ISO,etc
Place of Origin :
China
MOQ :
1km
Price :
depending on qty and material price
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000km/year
Delivery Time :
5-8 working days
Packaging Details :
Wooden drum
Product name :
450/750V 6x2.5mm2 multicore control cable
Conductor :
copper conductor
Insulation :
XLPE
Sheath :
PVC
Standard :
IEC 60502-1
Insulation Colour :
black color with numbers
Rated Voltage :
450/750V
Armour layer :
SWA
Description

450/750V 6x2.5mm2 multicore Cu/XLPE/PVC/ SWA/PVC control cable

TECHNICAL DATA SHEET-
450/750V Cu/XLPE/PVC/ SWA/PVC POWER CABLE 6x2.5mm2
Item Description Unit Data
1 Applicable Standard 　 IEC 60502-1
2 Rated Voltage V 450/750
3 Size mm2 6x2.5
4 Conductor 　 　
Cross sectional area mm2 2.5
Material 　 Stranded Copper Conductor
No.s Of Wires in Conductor No.s 7
Approx.Conductor Diameter mm 2.0
Max. D.C. Resistance at 20 ℃ Ω/km 7.41
5 Insulation 　 　
Material 　 XLPE
Nominal thickness mm 0.7
6 Filler Material(If any) -- PP Rope
7 Wrapping tape mm Polyester wrapping tape
8 Inner Sheath 　 　
Material -- Black PVC
Nominal Thickness mm 1.0
9 Armour Layer 　 　
Material 　 Galvanized Steel Wire
Nominal Diameter of steel wire mm 1.25
10 Outer sheath 　 　
Material 　 Black PVC
Nominal thickness mm 1.5
11 Complete cable 　 　
Overall diameter (approx.) mm 19.0
Weight per km (approx.) kg 700

450 / 750V 6x2.5mm2 Multicore Control Cable Copper Conductor IEC 60502-1 Standard
