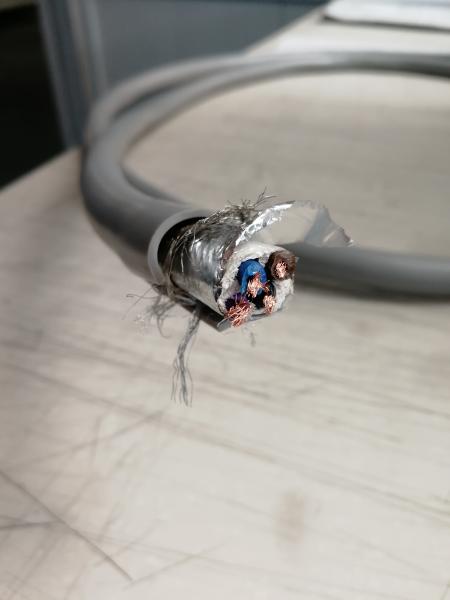

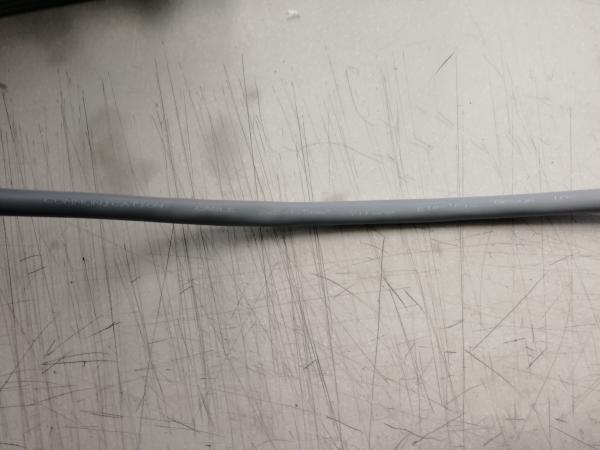

2×2×1.5 Polyethylene Insulation Multicore Control Cable Twisted Pairs RS485 Communication Cable
2×2×1.5 Polyethylene Insulation Multicore Control Cable Twisted Pairs RS485 Communication Cable
2×2×1.5 Polyethylene Insulation Multicore Control Cable Twisted Pairs RS485 Communication Cable
2×2×1.5 Polyethylene Insulation Multicore Control Cable Twisted Pairs RS485 Communication Cable
2×2×1.5 Polyethylene Insulation Multicore Control Cable Twisted Pairs RS485 Communication Cable
2×2×1.5 Polyethylene Insulation Multicore Control Cable Twisted Pairs RS485 Communication Cable
2×2×1.5 Polyethylene Insulation Multicore Control Cable Twisted Pairs RS485 Communication Cable
2×2×1.5 Polyethylene Insulation Multicore Control Cable Twisted Pairs RS485 Communication Cable
2×2×1.5 Polyethylene Insulation Multicore Control Cable Twisted Pairs RS485 Communication Cable
2×2×1.5 Polyethylene Insulation Multicore Control Cable Twisted Pairs RS485 Communication Cable
2×2×1.5 Polyethylene Insulation Multicore Control Cable Twisted Pairs RS485 Communication Cable
2×2×1.5 Polyethylene Insulation Multicore Control Cable Twisted Pairs RS485 Communication Cable
Specifications
Brand Name :
Yifang Cable
Model Number :
2×2×1.5 RS485 Communication Cable
Certification :
ISO,etc
Place of Origin :
China
MOQ :
2km
Price :
depending on qty and material price
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000km/year
Delivery Time :
5-8 working days
Packaging Details :
Wooden drum
Product name :
2×2×1.5 Polyethylene insulation, twisted pairs, RS485 Communication Cable
Conductor :
FLexible copper conductor
Insulation :
PE
Braiding layer :
Tinned copper wire braid
Screen :
Aluminum/polyester tape with a tinned Copper drain wire
Sheath :
PVC
Standard :
IEC61156
Insulation Colour :
Brown Blue, Black Purple
Rated Voltage :
300/300V
Description

2×2×1.5 Polyethylene insulation, twisted pairs, RS485 Communication Cable

TECHNICAL DATA SHEET OF COMMUNICATION CABLE
ITEM DESCRIPTION UNIT DATA
1 Type -- 2x2x1.5mm2 communication cable
2 Conductor 　 　
Conductor Material -- Flexible Copper Conductor
Conductor Cross-sectional Area mm2 1.5
Max.Conductor D.C. Resistance at 20℃ Ω/KM 13.30
3 Insulation 　 　
Material -- PE
Nominal thickness mm 1.4
4 Overall Screen -- Aluminum/polyester tape with a tinned Copper drain wire
5 Braiding Layer 　 　
Material -- Tinned copper wire braid
Braiding coverage % 70%
6 Outer sheath 　 　
Material -- PVC
Nominal thickness mm 1.4
7 Approx. Weight kg/km 300

2×2×1.5 Polyethylene Insulation Multicore Control Cable Twisted Pairs RS485 Communication Cable
